Plate Compactor RDW100 Applications:
RDW100 series plate compactors are ideal for compacting of sand, gravel,macadam asphalt san paving stones, tough and reliable, low operating and maintenace cost. Versatile and easy to work with.
Plate Compactor RDW100 Features:
- With reverible handle, foldable handle is also available.
- Handle can easily be removed when transporting.
- Open design reduces dirt building.
- Heavy duty shock mounts reduce vibration to the upper engine.
- Throttle control,convenient to control the speed, ideal for precise compactions.
- Optional rubber pad for interlocking paving blocks.
- Optional water tank for asphalt applications.
- Optional wheel can be used to move the machine short distance.
Plate Compactor RDW100 Technical Specification:
Model |
RDW100-H |
RDW100-L |
RDW100-R |
RDW90-K |
Engine |
Air-cooled, single cylinder, 4-stoke |
|||
Engine Type |
Petrol Honda GX160 |
Petrol Loncin G200F |
Petrol, Robin EY20 |
Diesel, KIPOR 170F |
Power |
5.5hp/4kw |
6.5hp/4.8kw |
5.0hp/3.7kw |
4.2hp/3.1kw |
Operation Weight |
93kg |
94kg |
93kg |
103kg |
Centrifugal Force |
19.8kn |
|||
Vibration Frequency |
6600rpm ( 110Hz ) |
|||
Compaction Depth |
30cm |
|||
Travel Speed |
45cm/s |
|||
Compaction Efficiency |
770m2/hr |
|||
Base Plate Size |
60*44cm |
|||
Operation Demension |
110*44*85 cm |
|||
Packing Size |
78*54*70cm |
|||
Standard Accessory |
Protective Frame/Water Tank/Wheel |
|||

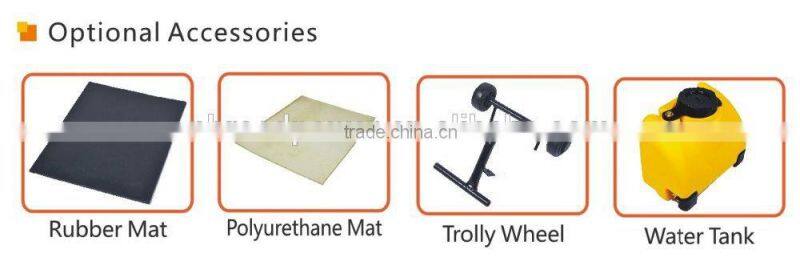

Optional Accessory |
Rubber Pad |
|||
Package:carton in steel framme on steel pallet,steel frame to make sure package would not be damaged during transportqation.Steel pallet provides convenience to unload goods.

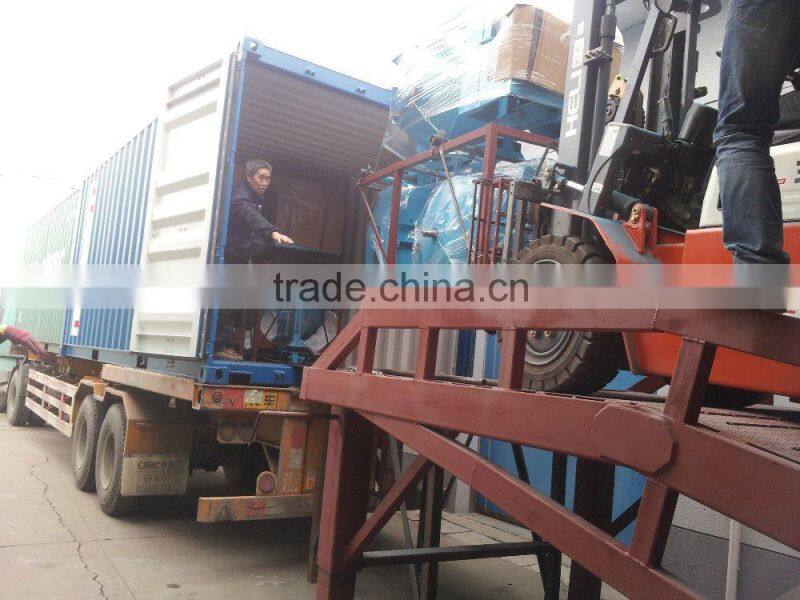

Shipping:
Can load the container in our factory,or send goods to warehouse.
Our container loading plate form:
|
NINGBO YINZHOU ROADPOWER MACHINERY CO.,LTD,founded in 1995,is a high quality manufacturer involved in the design & manufacturing of an extensive range of light construction machinery and components,including concrete vibrators,plate compactors, tamping rammers, concrete cutters,concrete mixers, power trowels, concrete surface screed, road rollers and so on. We are located in Gulin Town in Ningbo,it is very close to the seaport and it's 3.0km far from Ningbo Lishe International Airport,all these make it more convenient for us to proceed the daily work. Now ROADPOWER owns 3 workshops occupied 24000 square meters.We have special skilled workers produce each kind of machines.All our machines come under strict quality control system from raw material inspecting, process controlling to finished products inspecting and testing. |
|
ROADPOWER's senior engineers and production teams have around 20 years of experience in light construction machinery.All our machines are standard designed that meet environment protection with certifications including CE,EPA,CARB and CETL. ROADPOWER will manufacture products to meet customer specifications.Also,we will gladly work with you to design and develop new and innovative products.We provide the custom labeling, tooling, and/or packaging to meet your requirements |
