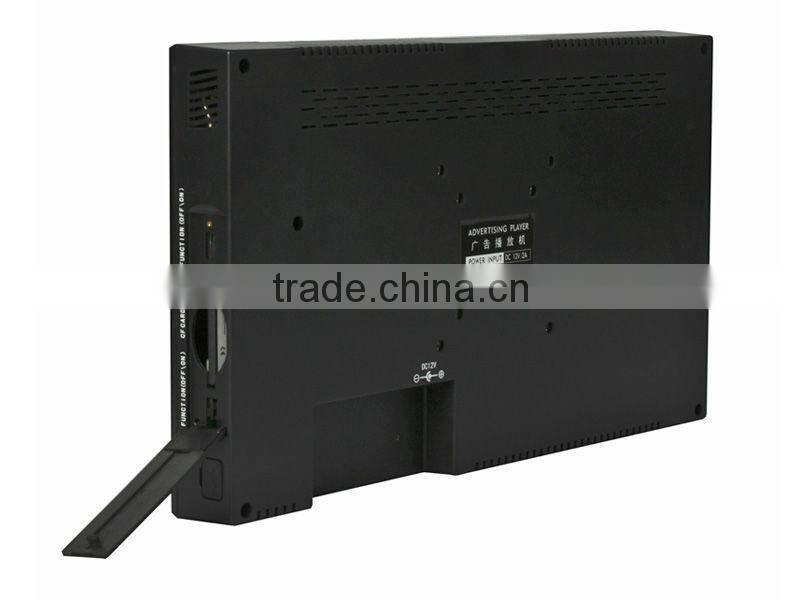

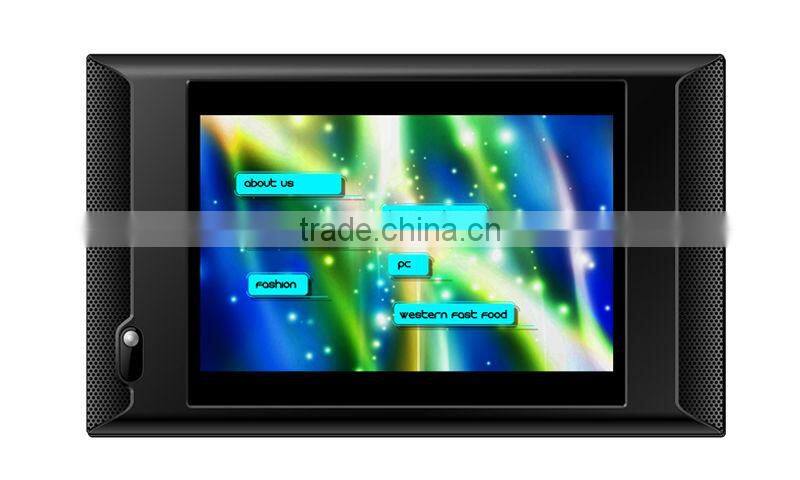

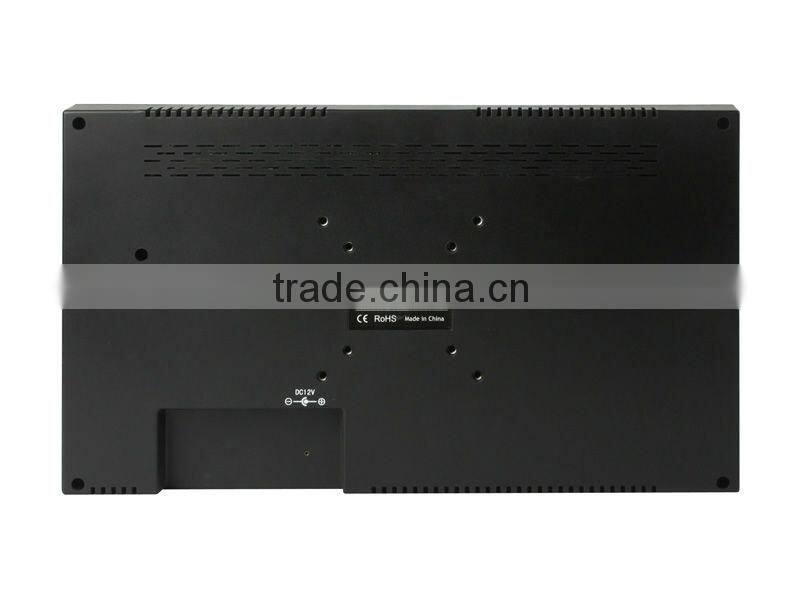

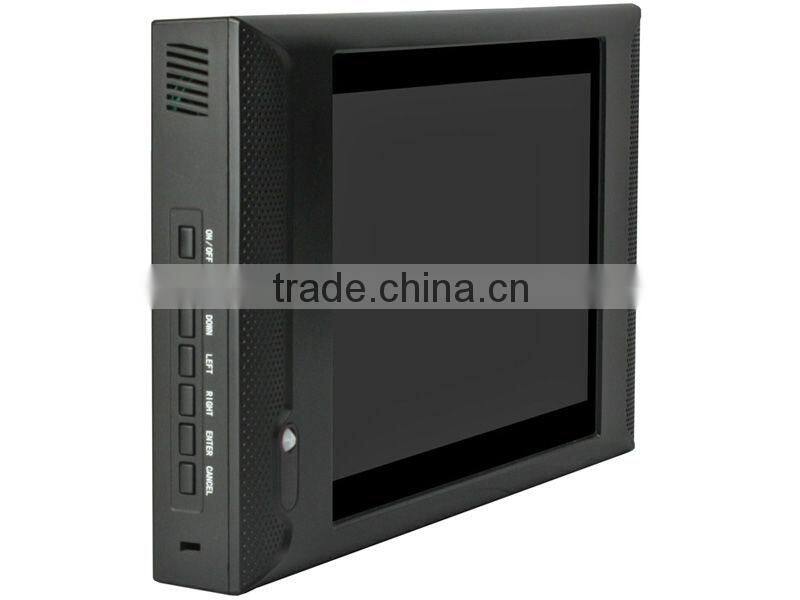

10" Shelf Hanging Touch Lcd Retail Advertising Display Monitor

FOB Price

US$ 120 - 125 / Piece

1 Piece(Min. Order)

Port Shenzhen/HK
Payment TermsT/T Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	OEM or Flintstone
Model Number	AD1016WPT	Type	TFT
Application	Indoor	Panel Size	10.2 inch
Max Resolution	800480(H V) P	Viewing Angle	65°/65°/45°/65°(L/R/U/D)
Contrast Ratio	300:1	Brightness	200cd/㎡
Input Voltage	DC 1A, 12W

Product Description

Specifications

Motion sensor / Touching function
Long hour play and replay
USB easily updated function
CE, RoHs&FCC certificate

10" shelf hanging touch lcd retail advertising display monitor

Key Functions

1. Play video by simply touching a screen icon corresponding to the video.

2. Timer function: the player turns on / off at the same time everyday according to your setting.

3. Update contents of the memory card simply by inserting an USB flash drive.

4. The sound of player starts automatically when the IR motion sensor detects an approaching viewer.

Main Functions

1. Play video by simply touching a screen icon corresponding to the video. Easy-to-install on supermarket shelves, desk top,showcase, car and taxi, etc.

2. Built-in 10.2 inch TFT LCD screen.

3. Play from:
   --Compact Flash card (SD card)
    --USB flash drive
   --Built-in memory (optional)

4. Update contents of the memory card (or built-in memory) by simply inserting an USB flash drive, no need to take out of the memory card.

5. Timer function: the player powers on / off automatically everyday or every week at the preset time.

6. Highly interactive, multi-layer touching screen.

7. The player will stop playing and go back to the upper level of menu once any area is touched by a viewer during playin

8. Audio output: 2 X built-in high quality stereo speakers.

9. Infra-red motion sensor: the player starts automatically when the sensor detects an approaching viewer. This function can be disabled or enabled.

10. Theft-protection device effectively prevents the player and SD card from being stolen in public place.

11. With professional easy-to-use stand set; can be installed on desktop, self edge, showcase, wall, car and taxi, etc.

Model	AD1016WPT
LCD Screen	LCD Size:	10.2 Inch
	Active Area:	222.0 (W) * 132.48 (H) (mm)
	Screen Ratio:	15:9
	Resolution:	800 x 480 (H*V)
	Brightness:	200cd/m2
	Contrast Ratio:	300:1
	View Angle:	65°/65°/45°/65°(L/R/U/D)
Touch Panel	Type:	4 Wire Resistive Touch Screen
	Surface Hardness:	≥3H
	Operation Pressure:	10-100g
	Optical Clarity:	≥80%
	Life Time:	>1,000,000 times
	Response Time:	<10ms
	Storage Tempeature:	-10°C~+60°C
	Operation Tempeature:	-20°C~+70°C
Support Formats	Video:	MPEG1(VCD), MPEG2(DVD),MPEG4(DIVX)
	Picture:	JPEG,BMP
	Picture optimum resolution	800 * 480 (H * V) P
	Video optimum resolution	720 * 480 (H * V) P
Play From	Memory Flash:	SD card, Max. 16GB
	Built-in Flash Memory:	Optional, confirm before production
	USB:	High speed USB 2.0 (Host)
Installation	VESA:	Yes/Optional 50 * 50 mm & 75 * 75 mm
	Desk Stand:	Yes/Optional w/ Desktop Bracket
	Self Bracket:	Yes/Optional w/ Self Bracket
	Wall Mounting Bracket:	Yes/Optional w/ Wall Mounting Multi-angle Bracket
Others	IR body Sensor Distance:	3m
	Remote Controller Distance:	4-5m
	Input Voltage:	AC100V-240V (50HZ-60HZ)
	Power Supply:	DC1A, 12W (MAX)
	Speaker:	Built-in 2x2W high quality stereo loudspeakers
	Working Temperature:	0°C-45°C
	Storage Temperature:	-20°C- 60°C
	Working Humidity:	20%-80%
	Storage Humidity:	10%-95%
	Casing:	Plastic (ABS + PC)
	Body Size:	330(L) * 190(W) * 40(H) (mm)
	Body Weight:	1.1 (kg)
Package	Standard Accessories:	AC power adaptor, L shape bracket, User's manual or CD, Remote control, Power port cover
	Unit Size:	40 * 24.5 * 13.5 (cm)
	Unit Weight:	2 (kg)
	Carton Size:	70 * 41.5 * 27 (cm)
	Carton Weight:	11 (kg)
	Units Per Carton:	5 pcs
