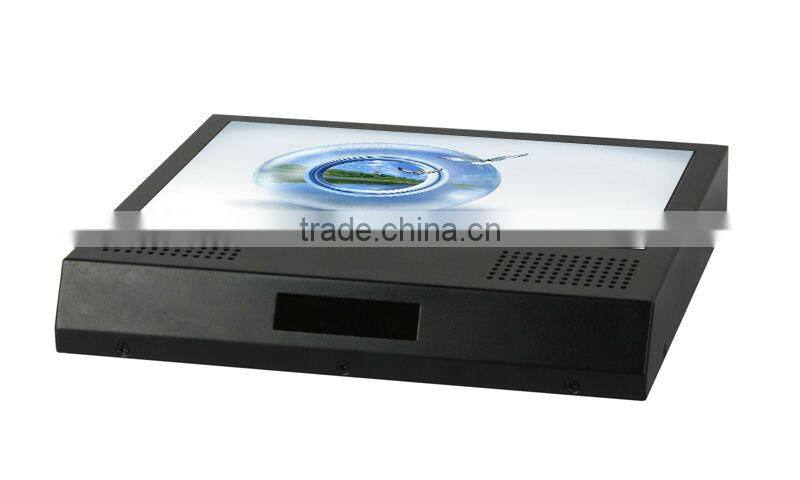

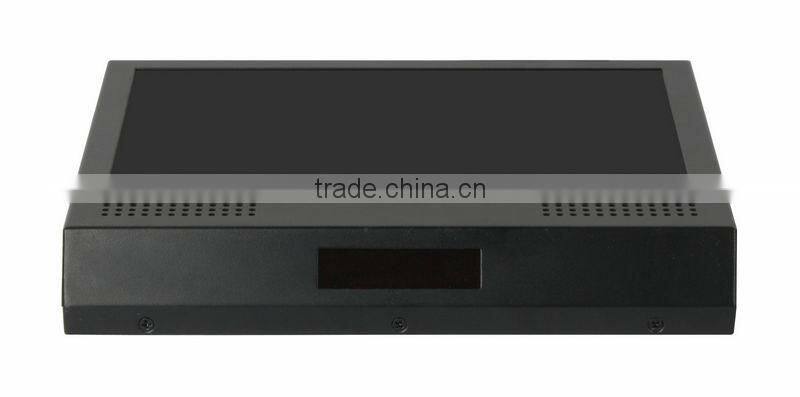

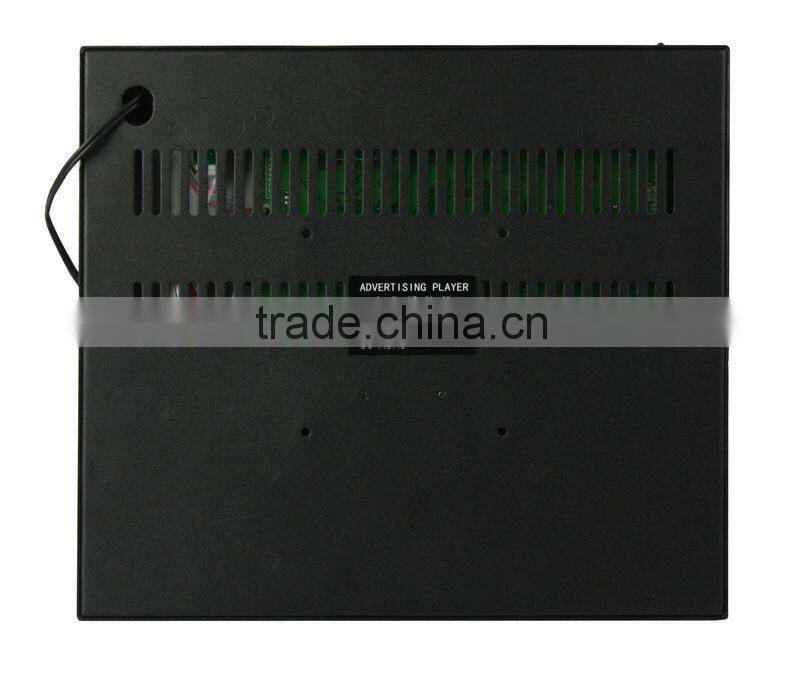

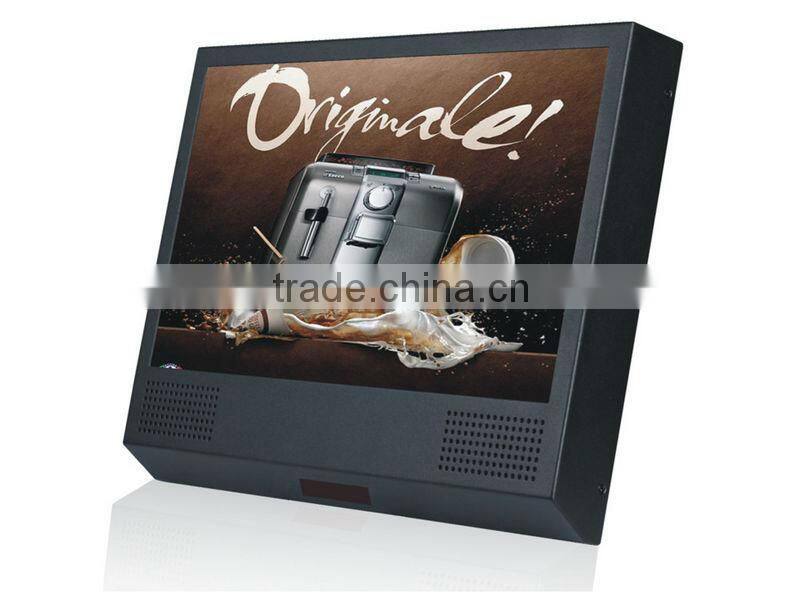

10 Inch Lcd Advertising Screen With Built-in Barcode Reader
US$ 175 - 198
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Flintstone or OEM
Model Number:
AD1046WBS
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Indoor 10 Inch Advertising Screen With Built-in Barcode ReaderUS$ 45 - 50MOQ: 100 Pieces -
Point of Sale 10 Inch Barcode Scan Lcd Advertising ScreenUS$ 45 - 50MOQ: 100 Pieces
-
Point of Sale Advertising 10 Inch Barcode Lcd Video DisplaysNegotiableMOQ: 1 Piece
-
Commercial Promotional 15 Inch Barcode Scan Lcd Video DisplayNegotiableMOQ: 1 Piece
-
15 Inch Supermarket Barcode Scanner Lcd DisplayNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Flintstone or OEM
Model Number
AD1046WBS
Type
TFT
Application
Indoor
Panel Size
10 inch
Max Resolution
800 x 480
Viewing Angle
65°/65°/45°/65°(L/R/U/D)
Pixel Pitch
0.0642 (W) * 0.1790 (H) (mm)
Color
262K/16.7M
Contrast Ratio
300:1
Brightness
250cd/㎡
Response Time
10/15ms
Input Voltage
DC1A, 12W (MAX)
Specifications
1.10.2" brand new TFT LCD2. built-in barcode reader
3. long time play and auto replay
4. timer function
5.CE, FCC, ROHS
10 inch lcd advertising screen with built-in barcode reader
10.2 inch barcode scan advertising player, suitable for supermarket, chain store, retail shop, media company, convenience store, airport, bus station, etc.
Key functions:
1. Scan a bar code and the player will play the corresponding file content such as an advertising video.
2. Many barcode data and corresponding files can be stored in the CF card, and customers can get information instantly.
3. Change contents of the memory card by simply inserting an USB flash drive.
4. Automatic play and replay for long hours.
5. Timer function (automatic power on/off).
6. The player will loop-play a pre-determined single file or loop-play all files after current file playing is completed.
Main features:
1. Built-in 10.2" (15:9) TFT LCD screen.
2. Metal housing, with tempered glass covering the LCD screen.
3. Bar code reader is specially designed for commodity bar code.
4. Play from:
--Compact Flash card (CF card) or SD card
--USB flash drive
--Compact Flash card (CF card) or SD card
--USB flash drive
5. Update contents of the memory card by simply inserting an USB flash drive, no need to take out the memory card, no need to use a computer.
6. Timer function: the player powers on / off automatically everyday or every week at the time pre-set; It can also automatically play and non-stop replay within the pre-set time frame.
7. No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing.
8. Theft-protection device effectively prevent the player and CF card or SD card from being stolen in public place.
9. Audio output: 2 built-in high quality stereo speakers.

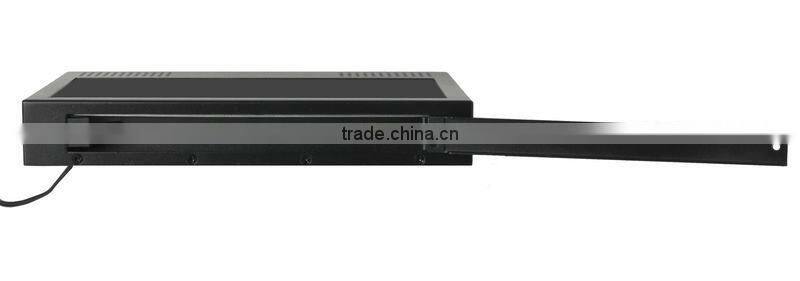

10. Equipped with different brackets for supermarket shelf, wall mounting or standing on table top.
11. Very easy to install.
| LCD Screen | LCD Size: | 10.2 Inch |
| Active Area: | 222.0 (W) * 132.48 (H) (mm) | |
| Pixel Pitch: | 0.0925 (W) * 0.2760 (H) (mm) | |
| Screen Ratio: | 15:9 | |
| Resolution: | 800 x 480 (H*V) | |
| Brightness: | 250cd/m2 | |
| Color: | 262K (6-bit) | |
| Contrast Ratio: | 300:1 | |
| View Angle: | 65°/65°/45°/65°(L/R/U/D) | |
| Response Time | 15/20ms | |
| Support Formats | Video: | MPEG1 (VCD), MPEG4(DIVX) |
| Audio: | MP3, WMA | |
| Picture: | JPEG | |
| Play From | Memory Flash: | CF or SD Card, Max. 8GB |
| USB: | USB 1.0 (Host) | |
| Installation | VESA: | Yes/Optional 75 * 75 mm |
| Desk Stand: | N/A | |
| Self Bracket: | Yes/Optional w/ Self Bracket | |
| Wall Mounting Bracket: | Yes/Optional w/ Wall Mounting Multi-angle Bracket | |
| Bar code scan parameters | Scan width: | 80mm |
| Effective scan distance: | 10mm-60mm | |
| Tilt adjustment: | 5 ° -70 ° (± 5 °) | |
| Distortion tolerance: | 5 ° -60 ° (± 5 °) | |
| Remote Controller Distance: | 4-5m | |
| Input Voltage: | AC100V-240V (50HZ-60HZ) | |
| Power Supply: | DC1A, 12W (MAX) | |
| Speaker: | Built-in 2x2W high quality stereo loudspeakers | |
| Working Temperature: | 0°C-45°C | |
| Storage Temperature: | -20°C- 60°C | |
| Working Humidity: | 20%-80% | |
| Storage Humidity: | 10%-95% | |
| Casing: | Metal | |
| Body Size: | 269(L) * 266(W) * 47.5(H) (mm) | |
| Body Weight: | 1.8 (kg) |
Your special needs,like printing logo, loading videos to CF/SD card, buying extra accessories, are also available.
