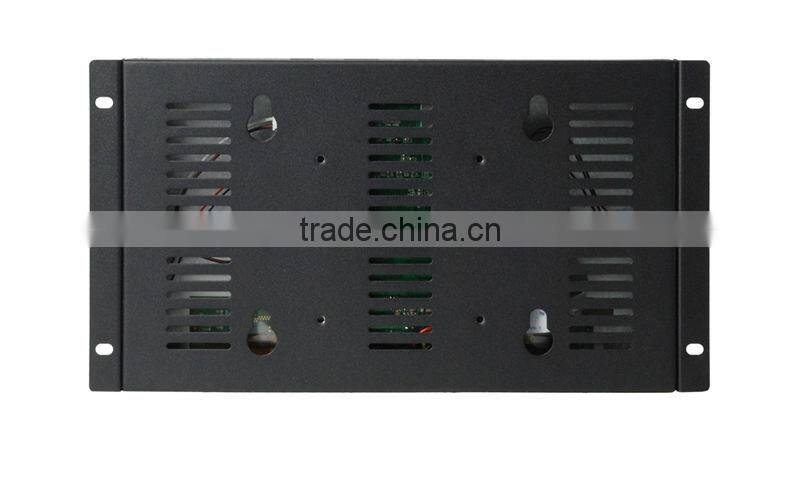

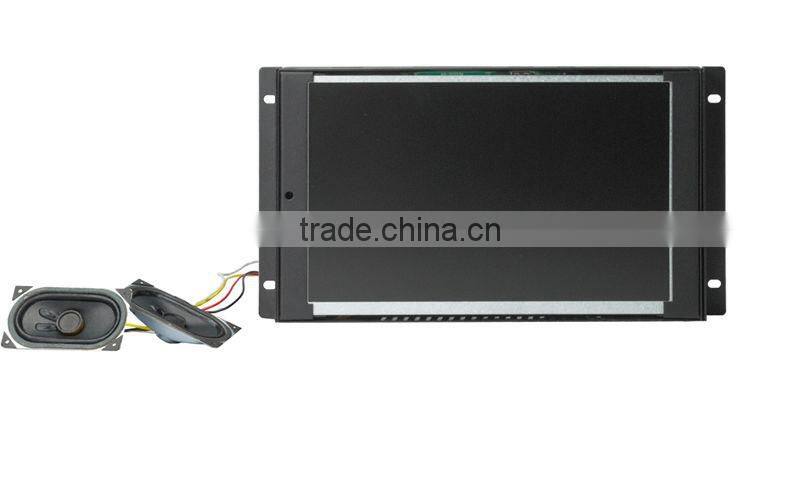

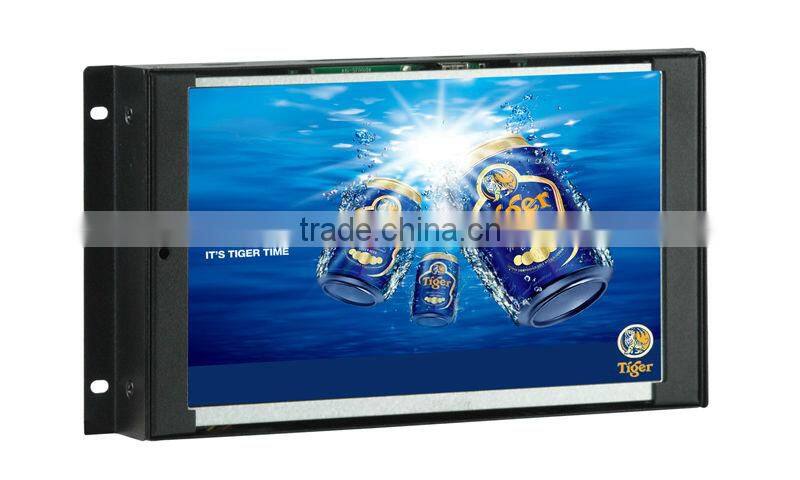

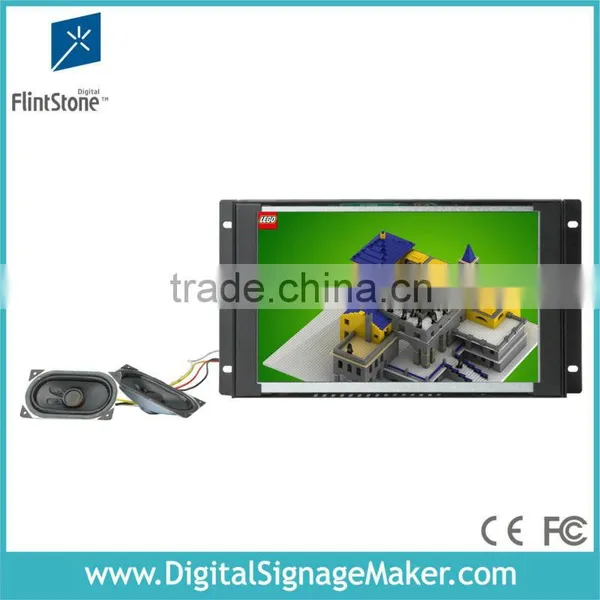

10" In-store Open Frame Advertising Player
US$ 40 - 50
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Flintstone or OEM
Model Number:
AD1005WF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
7 Inch Open Frame Lcd Advertising Player With Motion SensorUS$ 49 - 60MOQ: 100 Pieces -
15 Inch Open Frame Digital Advertising Poster MonitorNegotiableMOQ: 10 Pieces
-
Flintstone 10 Inch Open Frame Flashing Lcd Advertising SignsUS$ 35 - 50MOQ: 1 Piece
-
7 Inch Open Frame Lcd Advertising MonitorNegotiableMOQ: 1 Piece
-
15 Inch Digital Video Display Open Frame Advertising ScreenNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Flintstone or OEM
Model Number
AD1005WF
Type
TFT
Application
Indoor
Panel Size
10 inch
Max Resolution
800 x 480
Viewing Angle
65°/65°/45°/65°(L/R/U/D)
Pixel Pitch
0.0642 (W) * 0.1790 (H) (mm)
Color
262K/16.7M
Contrast Ratio
300:1
Brightness
250cd/㎡
Response Time
10/15ms
Input Voltage
AC100V-240V (50HZ-60HZ), DC1A, 12W (MAX)
Specifications
Body motion sensor / Remote control functionLong hour play and replay
USB easily updated function
CE, RoHs&FCC certificate
Key Function:
1. Open frame instruction design, which is flexible to embed into structure objects.
2. Upgrade contents of the memory card (or Built-in memory) by simply inserting an USB flash drive
3. The player starts automatically when the IR body sensor detects an approaching viewer (optional and external)
4. Timer function: the player turns on / off at the same time everyday according to your setting
Main Function:
1. Play mp4 movie, mp3 music and digital photos; Built-in 10.2 inch TFT LCD screen; Flexible to embed into all kinds of structure objects.
2. Play from:
--Compact Flash card (CF card)
--Compact Flash card (CF card)
--USB flash drive
--Built-in memory
--Built-in memory
3. Upgrade contents of the memory card (or built-in memory) by simply inserting an USB flash drive, no need to take out of the memory card
4. Timer function: the player powers on / off automatically everyday at the time pre-set; It can also automatically play and non-stop replay within the pre-set time frame
5. No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing
6. IR (infrared) body sensor (external and optional): player starts automatically when the sensor detects an approaching viewer; This function can be disabled or enabled
7. Audio output (external): 2 X built-in high quality stereo speakers
| Model | AD1005WF | |
| LCD Screen | LCD Size: | 10.2 Inch |
| Active Area: | 222.0 (W) * 132.48 (H) (mm) | |
| Pixel Pitch: | 0.0925 (W) * 0.2760 (H) (mm) | |
| Screen Ratio: | 15:9 | |
| Resolution: | 800 x 480 (H*V) | |
| Brightness: | 250cd/m2 | |
| Color: | 262K (6-bit) | |
| Contrast Ratio: | 300:1 | |
| View Angle: | 65°/65°/45°/65°(L/R/U/D) | |
| Response Time | 15/20ms | |
| Support Formats | Video: | MPEG1 (VCD), MPEG2 (DVD), MPEG4 |
| Audio: | MP3, WMA | |
| Picture: | JPEG, BMP | |
| Play From | Memory Flash: | CF card, Max. 8GB. SD card is optional before production |
| Built-in Flash Memory: | Optional, confirm before production | |
| USB: | High speed USB 2.0 OTG (Host) | |
| Installation | Embedding | |
| Others | IR body Sensor Distance: | Optional, 3m |
| Remote Controller Distance: | 4-5m | |
| Input Voltage: | AC100V-240V (50HZ-60HZ) | |
| Power Supply: | DC1A, 12W (MAX) | |
| Speaker: | Built-in 2x2W high quality stereo loudspeakers | |
| Working Temperature: | 0°C-45°C | |
| Storage Temperature: | -20°C-45°C | |
| Working Humidity: | 20%-80% | |
| Storage Humidity: | 10%-95% | |
| Casing: | Metal cold-rolled plate | |
| Body Size: | 290(L) * 155(W) * 32(H) (mm) | |
| Body Weight: | 1.4 (kg) | |
| Package | Standard Accessories | AC power adaptor, User's manual or CD disk, Remote control, Spare screws |
| Unit Size: | 40 * 24.5 * 13.5 (cm) | |
| Unit Weight: | 2.2 (kg) | |
| Carton Size: | 70 * 41.5 * 27 (cm) | |
| Carton Weight: | 12 (kg) | |
| Units Per Carton: | 5 pcs | |
