Specifications
open frame lcd monitor1.Flexible open frame structure
2.Long hour play and replay
3.USB easily updated function

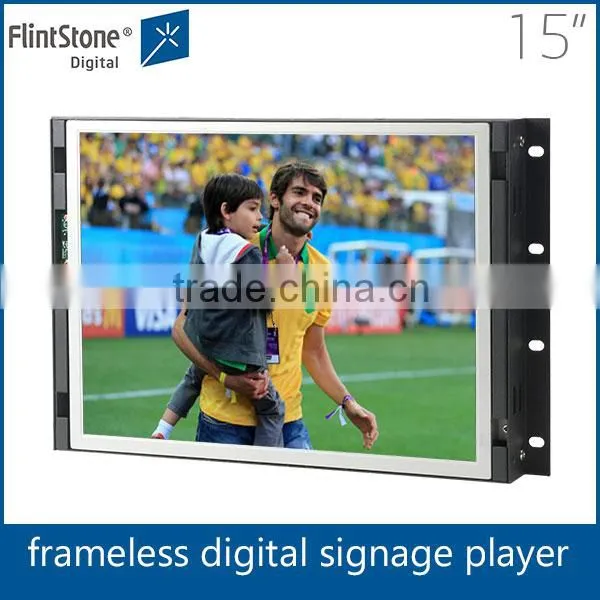

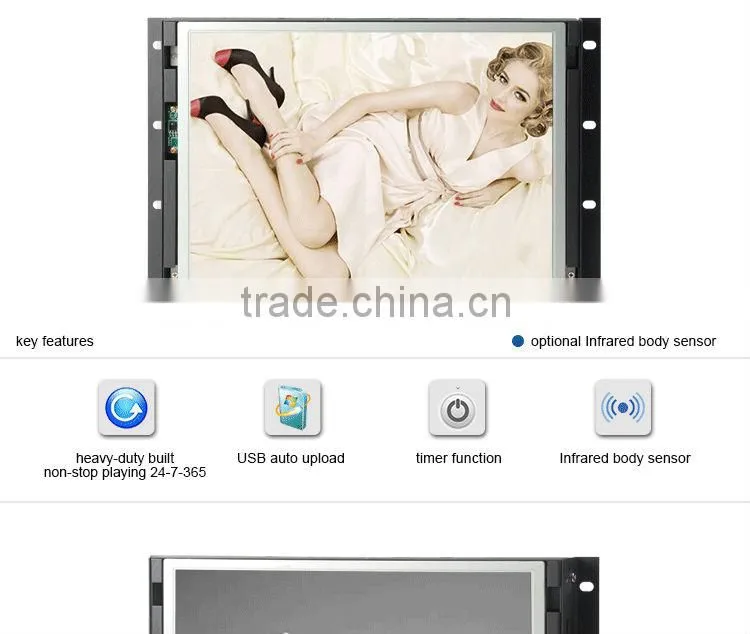

flintstone 15 inch open frame lcd monitor
What are the key features of our open frame lcd monitor ?
1. Industrial-grade design, heavy-duty built for non-stop loop-playing 24-7-365.
2. Automatically upload contents to player by simply inserting an USB drive.

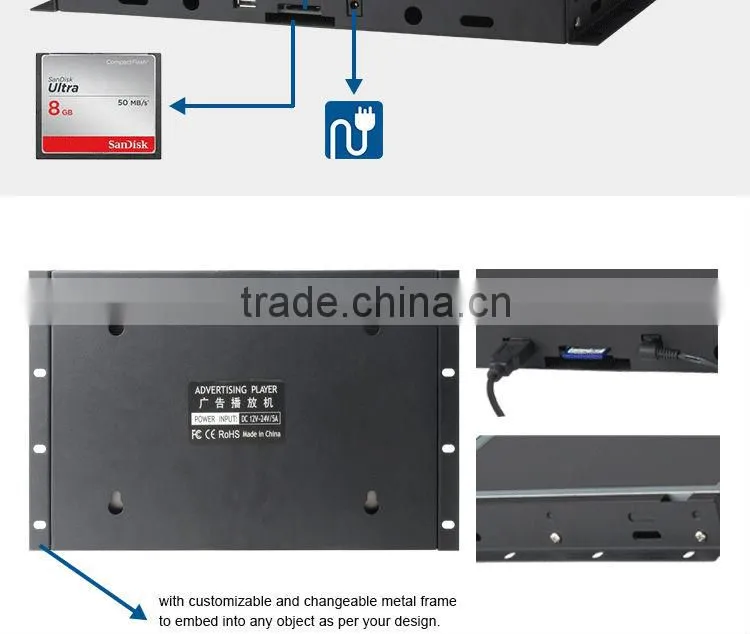

3.Open frame structure: with customizable and changeable metal frame to embed into your furniture, store shelf, showcase, or fit into any object as per your design.
What are the main functions of our open frame lcd monitor ?
1. Open frame structure: with customizable and changeable metal frame to embed into your furniture, store shelf, showcase, or fit into any object as per your design.
2. Our standard open frame product sample has flexible connection and support structure to fit into furniture, store shelf, showcase, or many other different objects without modification.
3. Our structure engineers can help you with design service as per your special need.
4. Industrial-grade design, heavy-duty built for non-stop loop-playing video and picture 24/7/365.
5. Upload contents to the memory card by one-step inserting an USB flash drive; no need to pull out the memory card; no need to use a laptop.
6. Timer: the player powers on / off automatically every day at your pre-set time.
7. No DVD-style mechanical movement, hence more durable and suitable for long-hour advertising playing.
8. With built-in 10 inch (15:9) TFT LCD screen, plays from SD card.
What are the specification of our open frame lcd monitor ?
Model |
AD1508F |
|

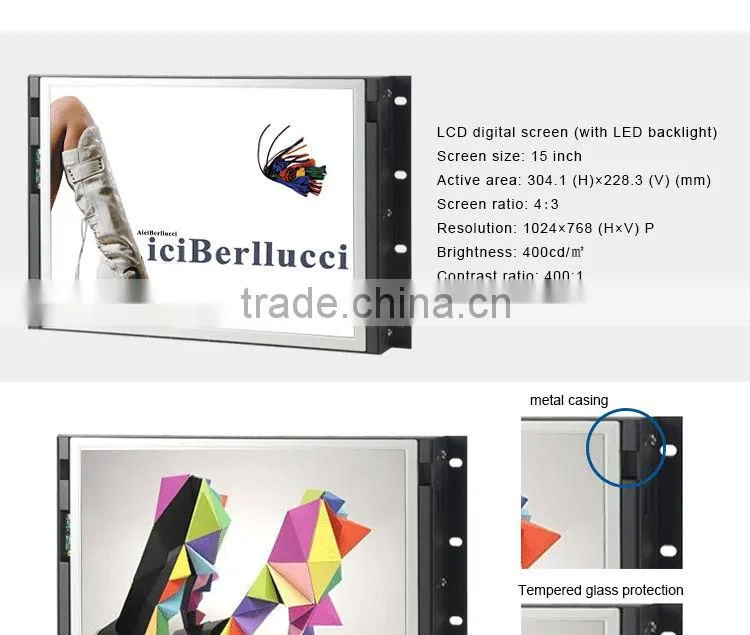

LCD Screen |
LCD Size: |
15 Inch |
Active Area: |
304.1 (W) * 228.1 (H) (mm) |
|
Pixel Pitch: |
0.297 (W) * 0.297 (H) (mm) |
|
Screen Ratio: |
4:3 |
|
Resolution: |
1024 x 768 (H*V) |
|
Brightness: |
400cd/m2 |
|
Contrast Ratio: |
400:1 |
|
View Angle: |
75°/75°/50°/60°(L/R/U/D) |
|
Response Time |
6/19 ms |
|
Support Formats |
Video: |
MPEG1 (VCD), MPEG2 (DVD), MPEG4 |
Audio: |
MP3, WMA |
|
Picture: |
JPEG, BMP |
|
Play From |
Memory Flash: |
CF card, Max. 8GB. |
Built-in Flash Memory: |
Optional, confirm before production |
|
USB: |
High speed USB 2.0 OTG (Host) |
|
Installation |
Embedding |
|
Others |
IR body Sensor Distance: |
Optional, 3m |
Remote Controller Distance: |
4-5m |
|

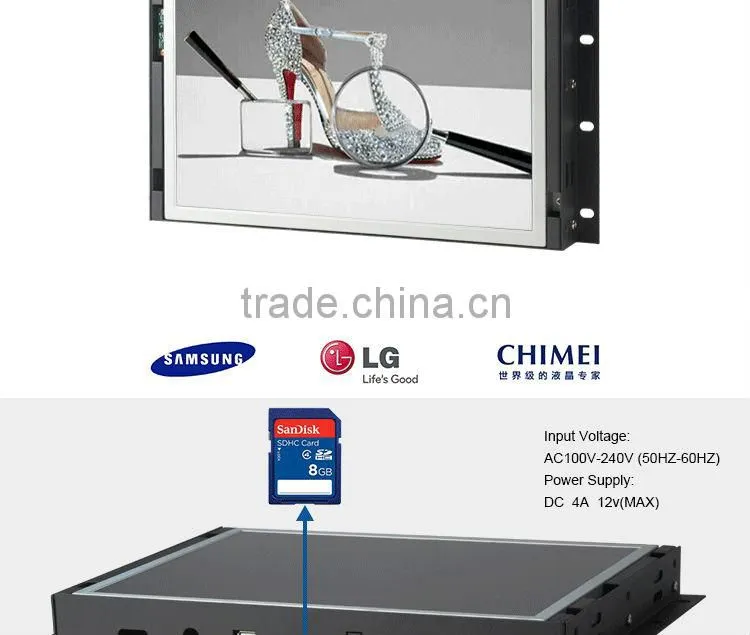

Input Voltage: |
AC100V-240V (50HZ-60HZ) |
|
Power Supply: |
DC4A, 12V |
|
Speaker: |
Built-in 2x2W high quality stereo loudspeakers |
|
Working Temperature: |
0℃-45℃ |
|
Storage Temperature: |
-20℃-45℃ |
|
Working Humidity: |
20%-80% |
|
Storage Humidity: |
10%-95% |
|
Casing: |
Metal cold-rolled plate |
|

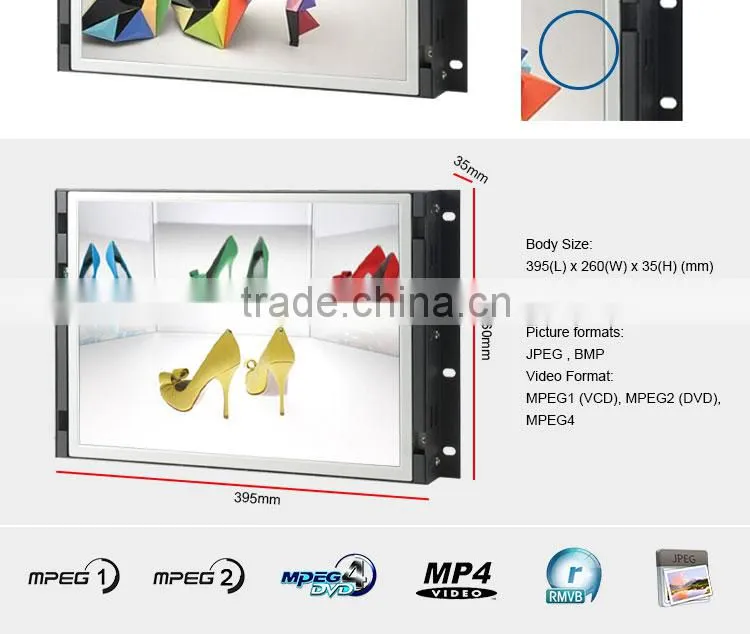

Body Size: |
395(L) * 260(W) * 35(H) (mm) |
|
Body Weight: |
3.2 (kg) |
|
Package |
Standard Accessories |
AC power adaptor, User's manual or CD disk, Remote control, Spare screws |
Unit Size: |
45.5 * 14.5 * 35.5 (cm) |
|
Unit Weight: |
4 (kg) |
|

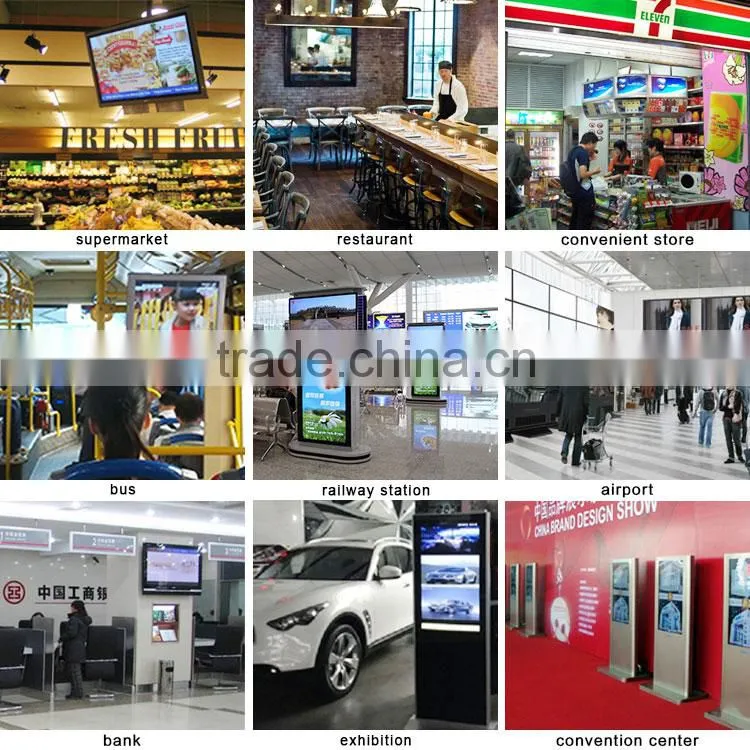

Application:
Product images:
Certification:

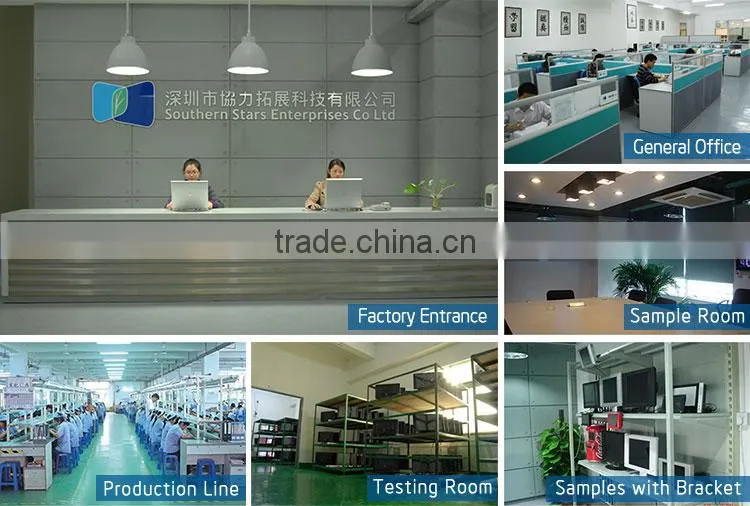

Who are we?
Southern Stars Enterprises Co Ltd has focused on the original R&D, electronic and functionality designing and manufacturing of over 60 models of HEAVY DUTY digital signage equipments and system with various special functions.
Since our establishment in 1996, Southern Stars has been relentlessly striving to achieve excellent quality level, going to great length to tackle any tiny quality defects. We provide most durable and stable long hour working digital signage players to the world market of commercial usage; we also provide heavy duty while user-friendly internet digital signage system (with CMS system) and to satisfy our customers with specialist consultancy and sincere service.
Our Main market:
We are ready to serve you
Trade Terms:
1. Payment methods: we accept T/T, PayPal , L/C , Western Union
2. Production lead time: 3-4 working days for sample, about 25 working days for massive order.
3. We offer 12 months of quality warranty.

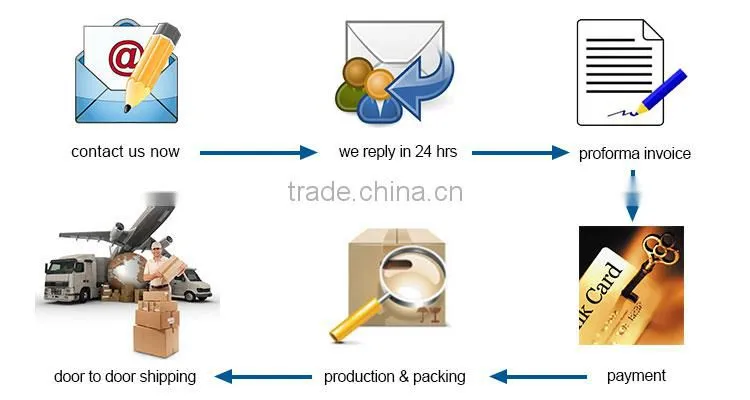

Payment method:
Packing:
Why choose us?
1. With 9 years of experience in this field, we truly understand your need for heavy duty ad players; all our products are industrial-grade designed, heavy-duty built for non-stop loop-playing video and picture 24 / 7 / 365. They are durable, stable, solid and tough like a rock.
2. All our products go through 72 hours of high temperature aging test before delivery; defective rate is less than 0.1%. We are the only one manufacturer to apply this rigorous testing method.
3. We always deliver on time as we promised;
4. We are proud to be appointed supplier for many Fortune 500 companies, such as Bosch, ICI Dulux, Toys”R”Us, Siemens, etc. We are THE pro; let us serve you with our professional experiences and specialties.
