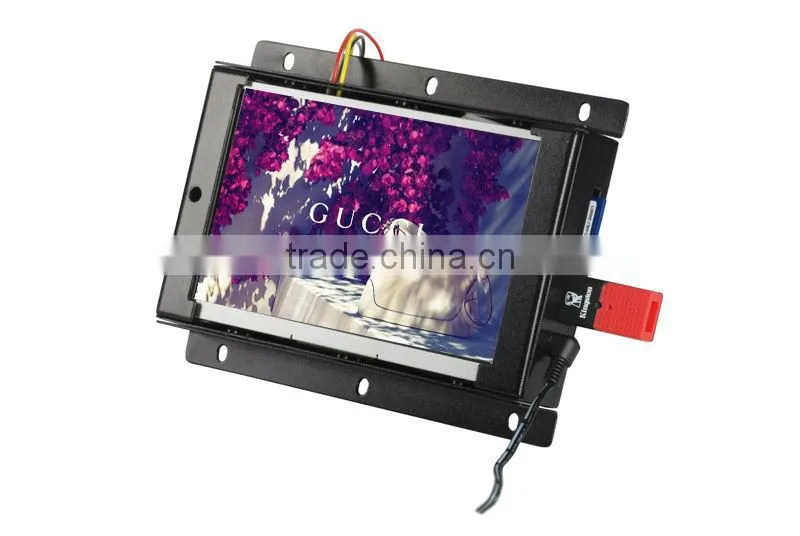

7inch Open Frame Advertising Lcd Digital Display Screen
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Flintstone or OEM
Model Number:
AD704F
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
7inch Open Frame Advertising Lcd Display ScreenNegotiableMOQ: 1 Piece -
7inch Open Frame Advertising Lcd PlayerNegotiableMOQ: 1 Piece
-
7inch Lcd Open Frame Advertising Player Digital SignageNegotiableMOQ: 1 Piece
-
7 Inch Open Frame Flexible Lcd Display Video AdvertisingUS$ 45 - 50MOQ: 1 Piece
-
7 Inch Easily Embeded Open Frame Pop DisplayUS$ 45 - 50MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Flintstone or OEM
Model Number
AD704F
Type
TFT
Application
Indoor
Panel Size
7 inch
Max Resolution
800 x 480
Viewing Angle
70°/70°/50°/70°(L/R/U/D)
Pixel Pitch
0.0642 (W) * 0.1790 (H) (mm)
Color
262K/16.7M
Contrast Ratio
500:1
Brightness
250cd/㎡
Response Time
10/15ms
Input Voltage
DC1A, 12W (MAX)
Specifications
1. 7" brand new TFT LCD2. flexible open frame design
3. long time play and auto replay
4. auto update by USB drive
5. CE
7inch open frame advertising lcd digital display screen
open frame instruction design, flexible to embed into structure objects of different backgroud, such as wall, wood furniture, display stand...
Key Function
1. Open frame instruction design, which is flexible to embed into structure objects.
1. Open frame instruction design, which is flexible to embed into structure objects.
2. Upgrade contents of the memory card (or Built-in memory) by simply inserting an USB flash drive
3. Play and replay automatically
4. Timer function: the player turns on / off at the same time everyday according to your setting
Main Function
1. Play mp4 movie, mp3 music and digital photos; Built-in 7 inch TFT LCD screen; Flexible to embed into all kinds of structure objects.
Main Function
1. Play mp4 movie, mp3 music and digital photos; Built-in 7 inch TFT LCD screen; Flexible to embed into all kinds of structure objects.
2. Play from:
--Compact Flash card (SD card)
--USB flash drive
--Built-in memory
--Compact Flash card (SD card)
--USB flash drive
--Built-in memory
3. Upgrade contents of the memory card (or built-in memory) by simply inserting an USB flash drive, no need to take out of the memory card
4. Timer function: the player powers on / off automatically everyday at the time pre-set; It can also automatically play and non-stop replay within the pre-set time frame
5. No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing
6. IR (infrared) body sensor (external and optional): player starts automatically when the sensor detects an approaching viewer
7. Audio output (external): 2 X built-in high quality stereo speakers
| Model | AD705F | |
| LCD Screen | LCD Size: | 7 Inch |
| Active Area: | 154.08 (W) * 85.92 (H) (mm) | |
| Pixel Pitch: | 0.0642 (W) * 0.1790 (H) (mm) | |
| Screen Ratio: | 16:9 | |
| Resolution: | 800 x 480 (H*V) | |
| Brightness: | 250cd/m2 | |
| Color: | 262K/16.7M | |
| Contrast Ratio: | 500:1 | |
| View Angle: | 70°/70°/50°/70°(L/R/U/D) | |
| Response Time | 10/15ms | |
| Support Formats | Video: | MPEG1 (VCD), MPEG2 (DVD), MPEG4 |
| Video Resolution: | 720*480P | |
| Picture: | JPEG, BMP | |
| Play From | Memory Flash: | SD card, Max. 8GB |
| Built-in Flash Memory: | Optional, confirm before production | |
| USB: | High speed USB 2.0 OTG (Host) | |
| Installation | Embedding | |
| Others | IR body Sensor Distance: | Optional, 3m |
| Remote Controller Distance: | 4-5m | |
| Input Voltage: | AC100V-240V (50HZ-60HZ) | |
| Power Supply: | DC1A, 12W (MAX) | |
| Speaker: | Built-in 2x2W high quality stereo loudspeakers | |
| Working Temperature: | 0°C-45°C | |
| Storage Temperature: | -20°C-45°C | |
| Working Humidity: | 20%-80% | |
| Storage Humidity: | 10%-95% | |
| Casing: | Metal cold-rolled plate | |
| Body Size: | 192(L) * 138(W) * 25(H) (mm) | |
| Body Weight: | 0.6 (kg) | |
| Package | Standard Accessories | AC power adaptor, User's manual or CD disk, Remote control |
| Unit Size: | 34.5 * 17 * 8.3 (cm) | |
| Unit Weight: | 1.0 (kg) | |
| Carton Size: | 70 * 36.5 * 27.5 (cm) | |
| Carton Weight: | 12.6 (kg) | |
| Units Per Carton: | 12 pcs | |
Your special needs, like printing your logo, loading videos to CF/SD cards, purchasing extra accessories, are also available.
