19" Lcd Bus LCD Media Player for Advertising

Specifications

1. 19" brand new TFT LCD
2. long time play and auto replay
3. easily upload by usb drive
4. timer function
5. CE, ROHS

19" lcd Bus LCD Media Player for advertising

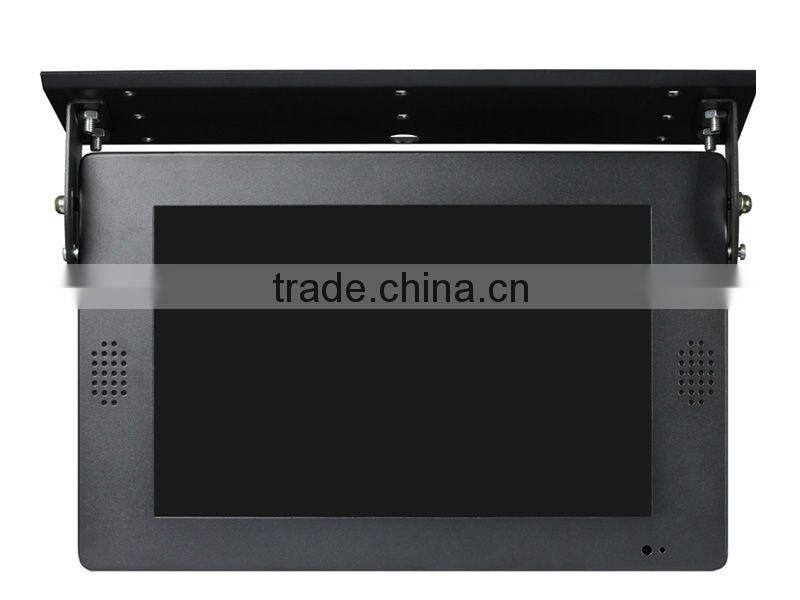

19 inch bus advertising player with ceiling mounting brackets, easy to install on bus roof.



Key Function:







1. Specially designed for bus usage with extra technical enhancement







2. Update contents simply with an USB drive







3. Auto play and replay, Timer function (auto power on / off)











Main features:







1. Built-in 19" (16:10) TFT LCD screen







2. Metal housing, with tempered glass covering the LCD screen. The angles of inclination can be adjusted as per users’ special need.







3. Suitable for DC 12-24V use, long time playing and replaying for inner bus advertisement.







4. Play from:
   --Compact Flash card (CF card)
   --USB flash drive



   --Built-in memory







5. Update contents of the memory card by simply inserting an USB flash drive, no need to take out the memory card, no need to use computer

6. Timer function: the player powers on / off automatically everyday at the time pre-set; It can also automatically play and non-stop replay within the pre-set time frame

7. No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing

8. Theft-protection device effectively prevent the player and CF card from being stolen in public place







9. Audio output: 2 X built-in high quality stereo speakers







10. Professional mounting kits (ceiling mount and wall mount) are available



LCD Screen	LCD Size:	19 Inch
	Active Area:	408.24 (W) * 255.15 (H) (mm)
	Pixel Pitch:	0.2835(W) * 0.2835 (H) (mm)
	Screen Ratio:	16:10
	Resolution:	1440 x 900 (H*V)
	Brightness:	250cd/m2
	Color:	16.7M (6bit+Hi-FRC)
	Contrast Ratio:	1000:1
	View Angle:	85°/85°/80°/80°(L/R/U/D)
	Response Time	1.5/3.5 ms
Support Formats	Video:	MPEG1 (VCD), MPEG4
	Audio:	MP3, WMA
	Picture:	JPEG, BMP
Play From	Memory Flash:	CF card, Max. 8GB. SD card is optional before production
	Built-in Flash Memory:	Optional, confirm before production
	USB:	High speed USB 2.0 (Host & OTG)
Installation	Ceiling Mounting Bracket:	Yes/Default Bracket
	Rear Mounting Bracket:	Yes/Optional w/ Rear Bracket Set
Others	IR body Sensor Distance:	3m, Optional
	Remote Controller Distance:	4-5m
	Power Supply:	DC12-24V 4A
	Speaker:	Built-in 2x2W high quality stereo loudspeakers
	Working Temperature:	0°C-45°C
	Storage Temperature:	-20°C- 60°C
	Working Humidity:	20%-80%
	Storage Humidity:	10%-95%
	Casing:	Metal
	Body Size:	500 (L) * 325 (W) * 55(H) (mm)
	Body Weight:	7.6 (kg)







Your special needs, like printing logo, loading videos to CF/SD card, buying extra accessories, are also available.
