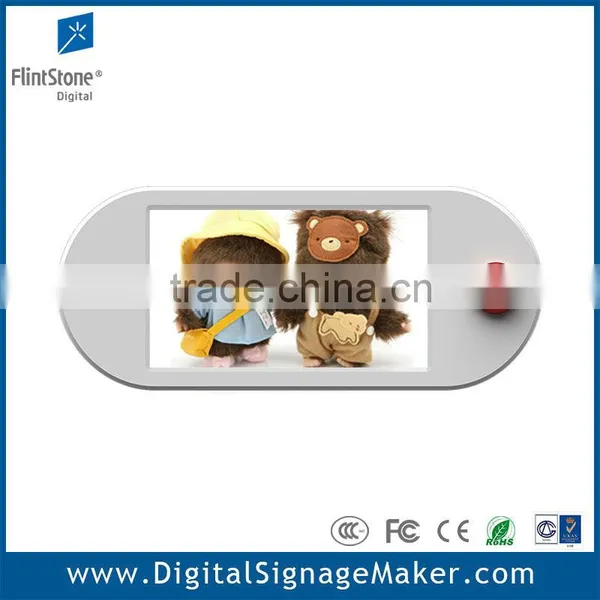

battery powered 9 inch lcd advertising monitor

Specifications

1. 9" brand new TFT LCD
2. Li-ion battery pack
3. red button in flickering mode
4. auto play and replay in loop
5. CE, ROHS

battery powered 9 inch lcd advertising monitor

9inch battery powered lcd digital signage, suitable for supermarket, retail shop, chain store, media company, convenience store, bus stop, airport, etc.

Key Function



1. Real energy-conserving and environment-protective. Play programs by pressing the play button when in need. The player remains in the shutdown state when no viewer presses.

2. Powered by rechargeable lithium battery pack, supports 24 hours non-stop play and replay. Portable and very convenient for users.

3. Upgrade contents of the memory card (or Built-in memory) by simply inserting an USB flash drive

4. Function keys on the player can be disabled or enabled



Main Function



1. Play mp4 movie, mp3 music and digital photos; Built-in 9 inch TFT LCD screen, with Acryl protection; easy-to-install on supermarket shelves, tabletop, car and taxi, etc.

2. Play from:
     --Secure digital card (SD card)
     --USB flash drive
     --Built-in memory

3. Upgrade contents of the memory card (or built-in memory) by simply inserting an USB flash drive, no need to take out of the memory card

4. 7 Function keys on the player can be disabled or enabled

5. Timer function(Not commonly used): the player powers on / off automatically everyday at the time pre-set; It can also automatically play and non-stop replay within the pre-set time frame

6. No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing

7. Theft-protection device effectively prevent the battery and SD card from being stolen in public place

8. Audio output: 2 X built-in high quality stereo speakers

9. With professional easy-to-use stand set; hang on shelf or stand on table



Technical Specifications



1. TFT LCD screen
   LCD Size: 9 Inch
   Active Area: 198.0 (W) * 111.696 (H) (mm)
   Pixel Pitch: 0.0825(W) * 0.2327 (H) (mm)
   Screen Ratio: 16:9
   Resolution: 800 x 400 (H*V)
   Brightness: 200cd/m2
   Color: 16.7M
   Contrast Ratio: 500:1
   View Angle: 70°/70°/50°/70°(L/R/U/D)
   Response Time: 10/15ms



2. Compatible file formats:
   Video: MPEG1 (VCD), MPEG2 (DVD), MPEG4 (DIVX, XVID, DX50)
   Picture: JPEG
   Video Decode Maximum Resolution: 720 × 480P



3. Play from:
   Memory Flash: SD Card, Max. 8GB
   Built-in Flash Memory: Optional, confirm before production
   USB: High speed USB 2.0  (Host)



4. Play Mode:
   Press the play button



5. Battery:
   Play duration: 24 hours
   Stand-by duration: 60 hours
   Single lithium battery size: Diameter: 18mm, length:65mm
   Single lthium battery capability: 3.7V/2200MA
   Lithium battery pack size: 199 (L) * 74 (W) * 18.5 (H) (mm)
   Lithium battery pack capability: 7.4V/13.2AH



6. Output:
   Built-in 2x1.5W/8R high quality stereo loudspeakers



LCD Screen	LCD Size:	9 Inch
	Active Area:	198.0 (W) * 111.696 (H) (mm)
	Pixel Pitch:	0.0825(W) * 0.2327 (H) (mm)
	Screen Ratio:	16:9
	Resolution:	800 x 400 (H*V)
	Brightness:	200cd/m2
	Color:	16.7M
	Contrast Ratio:	500:1
	View Angle:	70°/70°/50°/70°(L/R/U/D)
	Response Time	10/15ms
Support Formats	Video:	MPEG1 (VCD), MPEG2 (DVD), MPEG4 (DIVX, XVID, DX50)
	Picture:	JPEG
	Video Decode Maximum Resolution:	720 × 480P
Play Mode	Press the play button
Battery	Play duration:	24 hours
	Stand-by duration:	750 hours
	Single lithium battery size:	Diameter: 18mm, length:65mm
	Single lthium battery capability:	3.7V/2200MA
	Lithium battery pack size:	199 (L) * 74 (W) * 18.5 (H) (mm)
	Lithium battery pack capability:	7.4V/13.2AH
Play From	Memory Flash:	SD Card, Max. 8GB
	Built-in Flash Memory:	Optional, confirm before production
	USB:	High speed USB 2.0  (Host)
Installation	VESA:	Yes/Optional w/ various kinds of VEVA convertors/Hang eyelets
	Desk Stand:	Yes/Optional w/ Desktop Bracket
	Self Bracket:	Yes/Optional w/ Self Bracket
	Wall Mounting Bracket:	Yes/Optional w/ Wall Mounting Multi-angle Bracket
Others	Speaker:	Built-in 2x1.5W/8R high quality stereo loudspeakers
	Working Temperature:	0°C-40°C
	Storage Temperature:	-20°C-60°C
	Working Humidity:	20%-80%
	Storage Humidity:	10%-95%
	Casing:	Plastic
	Body Size:	350(L) * 147(W) * 58(H) (mm)
	Body Weight:	1.5 (kg)
Package	Standard Accessories
	Unit Size:	40 * 20 * 15 (cm)
	Unit Weight:	(kg)
	Carton Size:	48 * 44 * 45 (cm)
	Carton Weight:	(kg)
	Units Per Carton:	pcs

Your special needs, like printing logo, loading videos to memory card, buying extra accessories, are also available.
