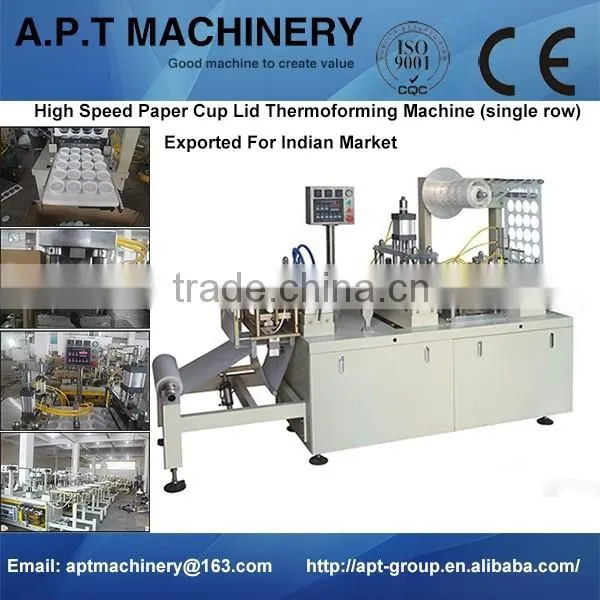

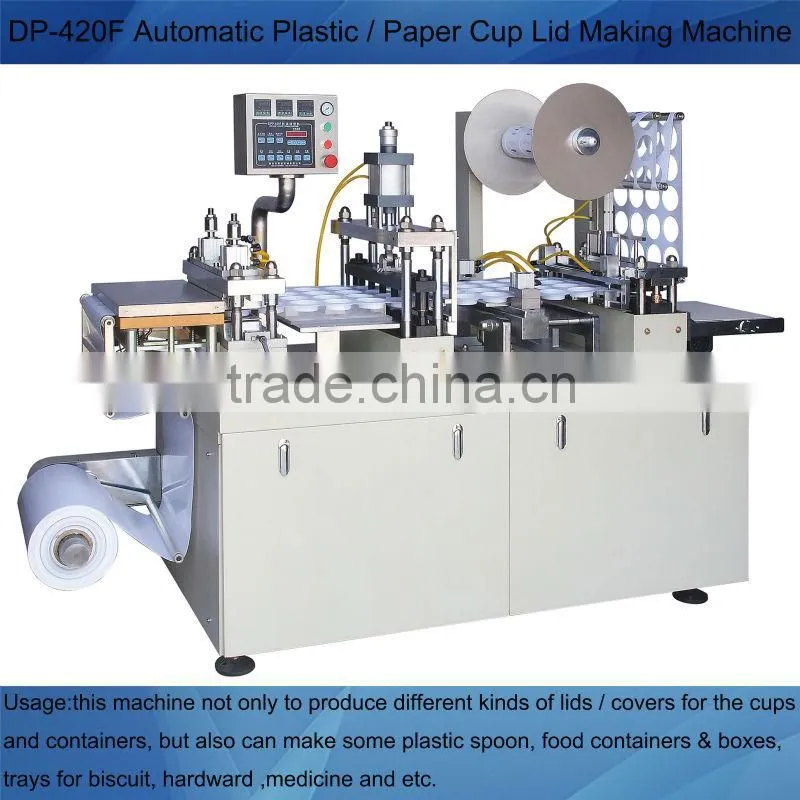

High Speed Paper Cup Lid Thermoforming Machine
(single row) Exported For Indian Market
Main Features
1. All processing steps be done automatically , which saves labor and high efficiency .
2. This machine operation is convenient and stable performance .

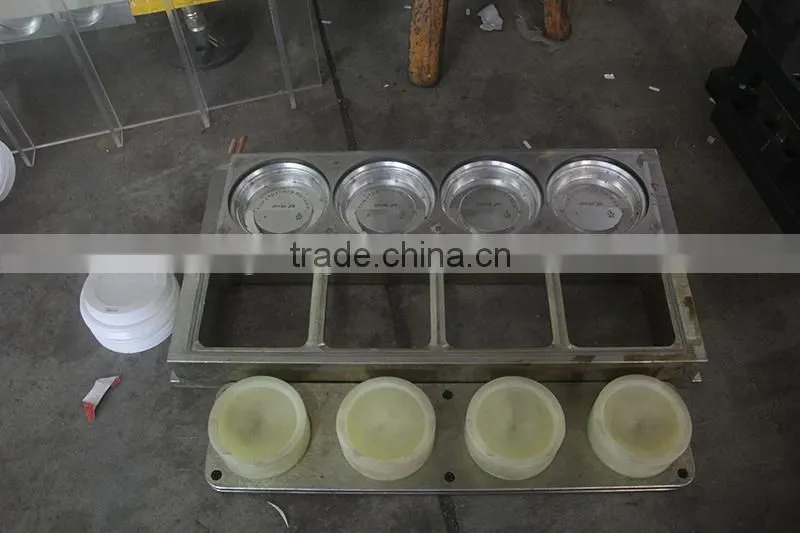

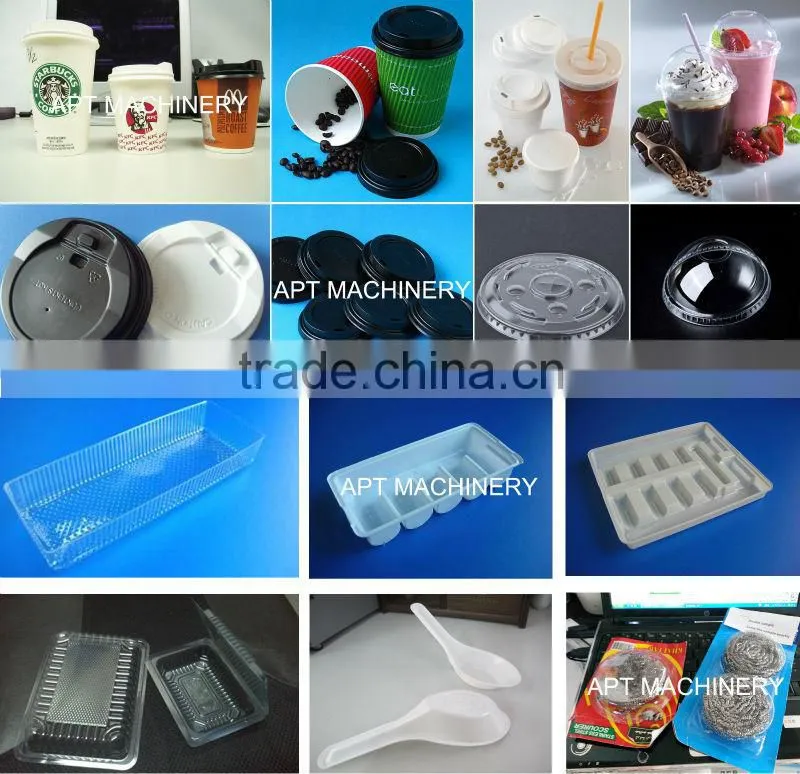

3. One machine can make different products, just change the mould, It has multifunction .
4. Machine can be customized according to customer requirement .
Technical parameters
Used material |
PS / HIPS / PET / PVC Sheet Roll |
|
Max.Forming Area |
410*150mm |
The machine can be customized
|
Max.Forming Depth |
30mm |
|
Forming Speed |
8-32times/min |
|
Sheet width for feeding |
Max.430mm |
|
Sheet Roll Diameter |
600mm |
|
Sheet Thickness |
0.15-0.55mm |
|
Water Consumption |
0.3 m3/h (recycle) |
|
Air Consumption |
0.6-0.8 m3/ min,0.4-0.7Mpa |
|
Total Power |
4.6kw |
|
Weight |
800kg |
|
Machine Dimension |
2.7m*0.9m*1.6m (L*W*H) |
|
Main Component List
No. |
Item |
Brand |
1 |
Power Switch |
Omron, Japan |
2 |
Temperature Controller |
Yatai, China |
3 |
Breaker |
CHNT, China |
4 |
Mini Relay (LY2NJDC24V) |
Omron, Japan |
5 |
Urgent Stop Button |
Schneider |
6 |
Photoelectric Switch |
China |
7 |
Reduction Valve |
China |
8 |
Solenoid Valve |
Airtec, Taiwan |
9 |
1.5KW Main Motor |
Lichao, Chao |
10 |
Inverter |
Invert, China |
11 |
PLC |
Siemens, Germany |
12 |
Expansion Module |
|
13 |
Touch Screen |
Siemens, Germany |

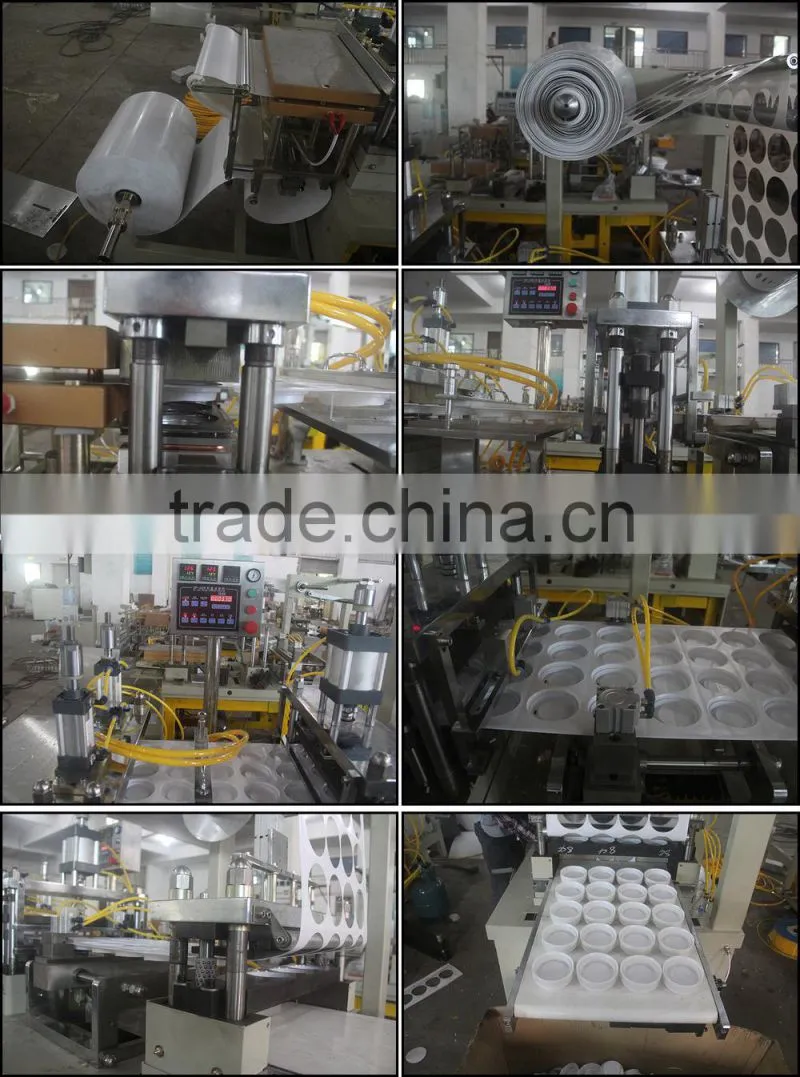

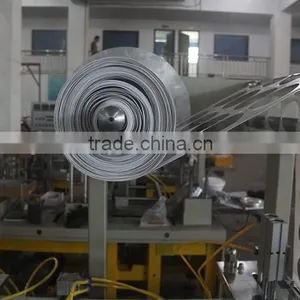

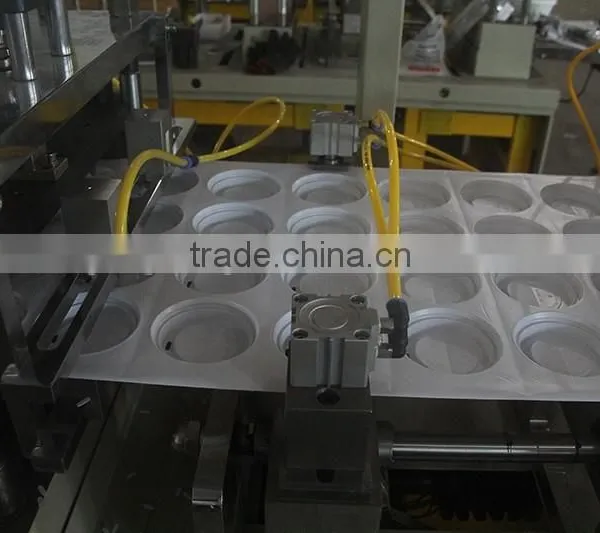

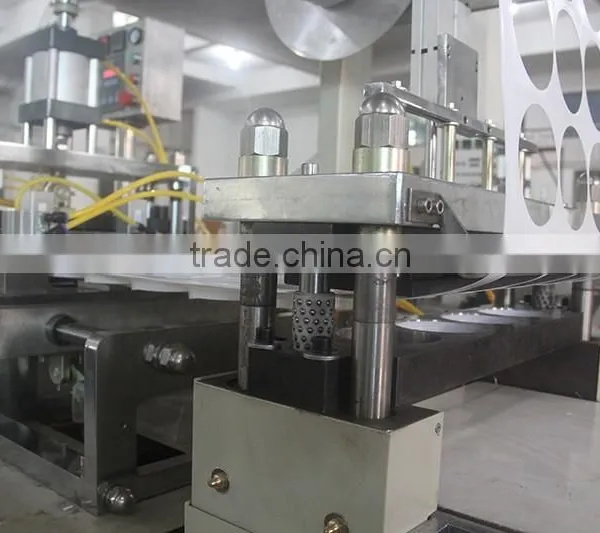

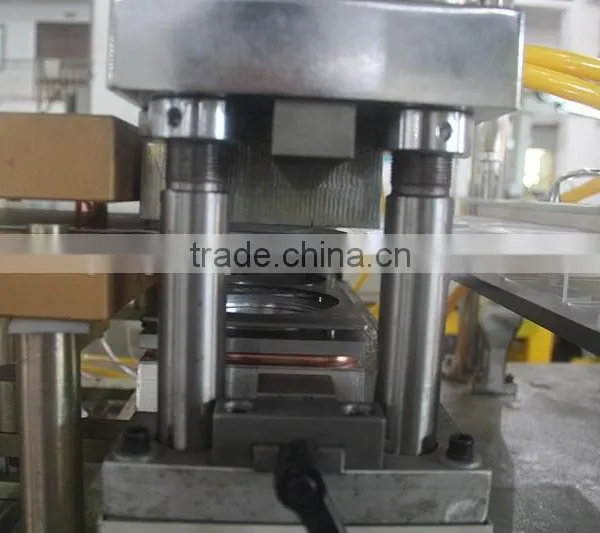

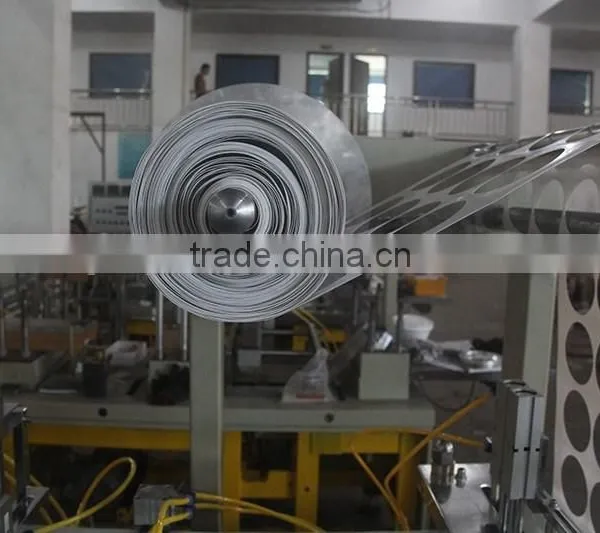

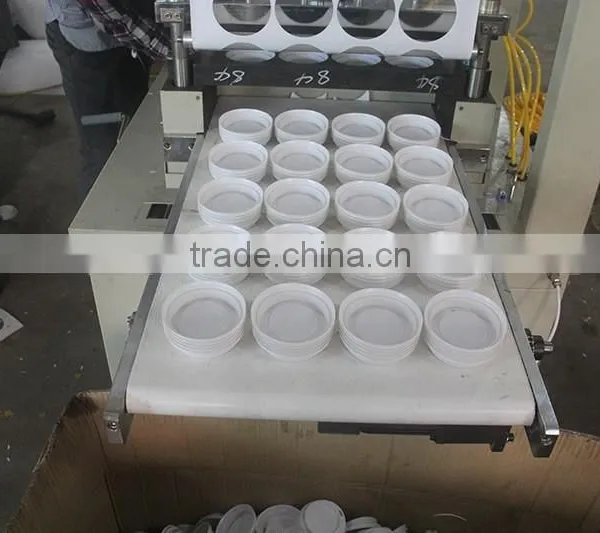

Machine Details
Home Website: http://apt-group.en.china.cn/
Product Video Link:/watch?v=TQXrogv44_E

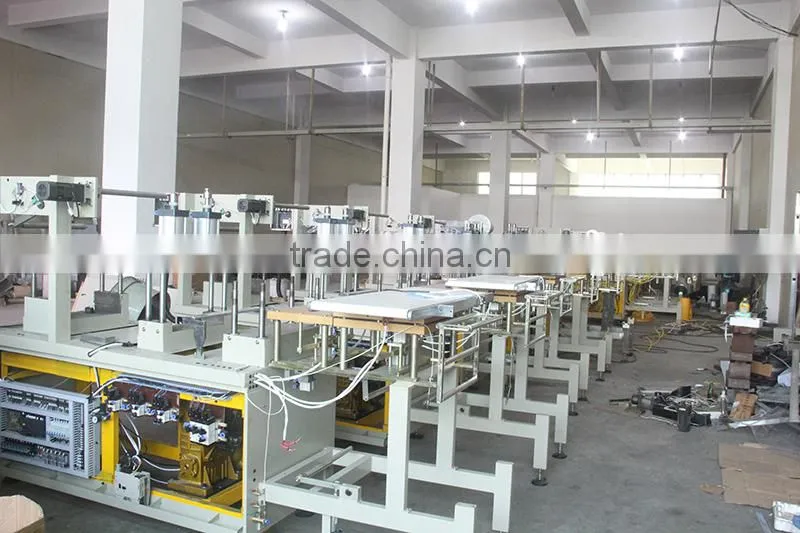

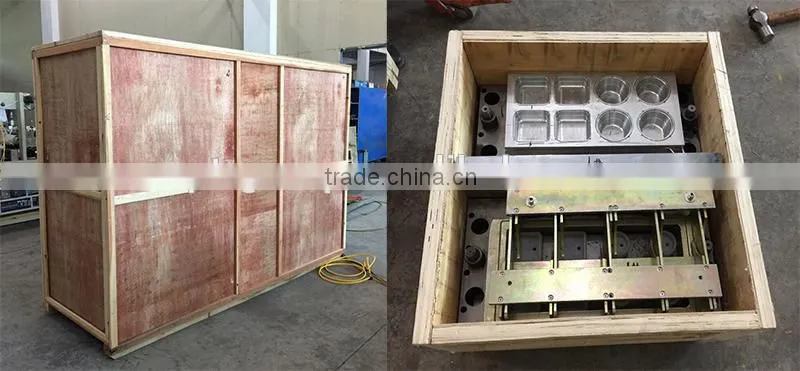

Packing Machine
Loading Machine
Shipping Machine
Sales Market Distribution
- Installation Services are available with all customers.
- we can send our Enginner to your company to install the machines If customer needs.
- We can train your staffs how to run the machine efficiently and safely.
3. After Sales Service
- Guaranty: One Year and offer the lifetime maintenance service.
- During warranty period and after warranty period, We will come for regular checks on machine and make records to ensure the normal operation of equipment.
- Our experienced engineer are always available for dispatching abroad to help customers.
- Any question, welcome to contact us at any time.
