Disposable Medical Tray Thermoforming Machine

FOB Price

US$ 20,000 - 30,000 / Set

1 Set(Min. Order)

Port NINGBO PORT
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Product Type	Plastic Cup
Place of Origin	China	Brand Name	APT
Model Number	DP-420S	Voltage	380V / 220V
Power(W)	6.0KW	Dimension(LWH)	23509502000mm
Weight	1200kg	Certification	CE
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.Material:PS/PVC/PET sheet
2.Convenient operation
3.With cutting and stacking function
4.Compact structure and multifunction

Disposable Medical Tray Thermoforming Machine

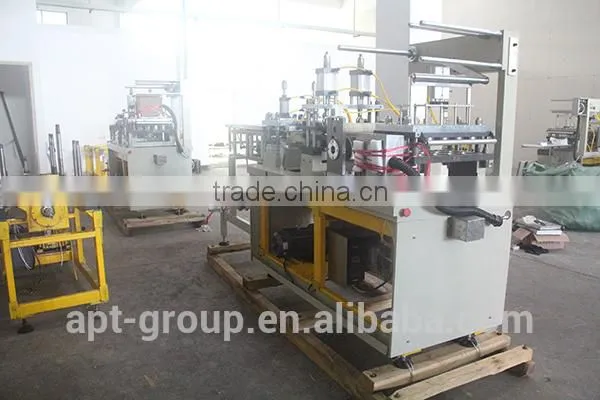

Machine Packing:

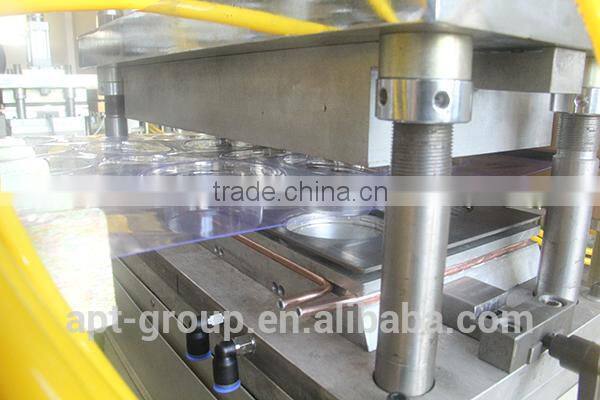

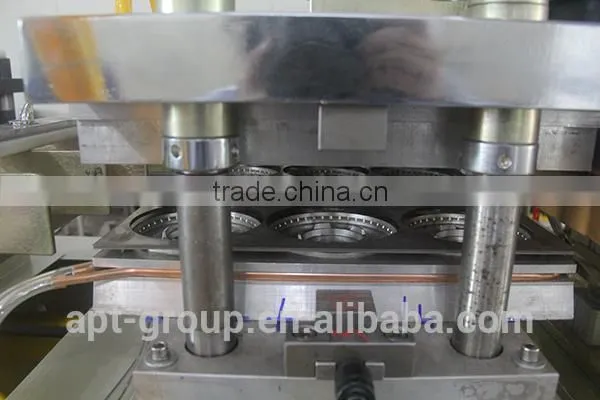

Three Row Lid Forming Mold

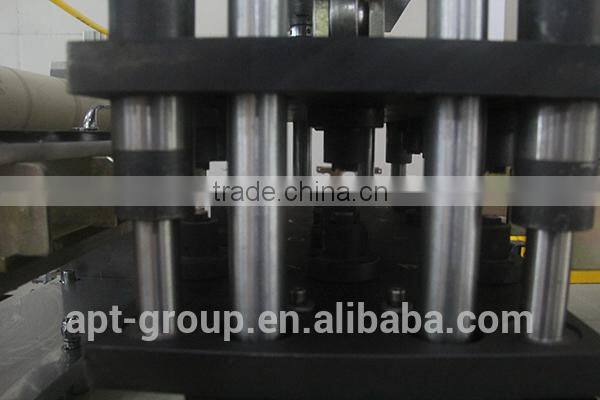

Hole Punching Position:

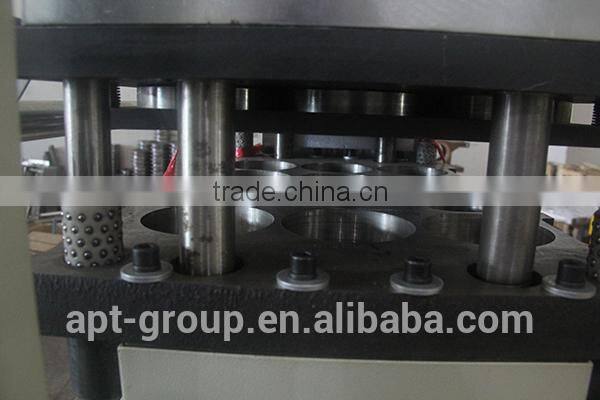

Cutting Position:

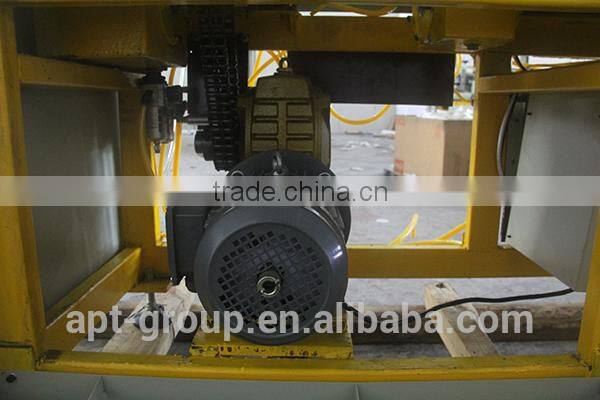

Driving Motor With gearbox

Servomotor Controlled Sheet Feeding

PLC Controlled Electrcial Cabinet

Technical parameters

Used material	PS / HIPS / PET / PVC Sheet Roll
Max.Forming Area	*410310mm**	According to Client requests,the machine can be customized.
Max.Forming Depth	52mm
Forming Speed	8-32times/min
Sheet width for feeding	Max.430mm
Sheet Roll Diameter	600mm
Sheet Thickness	0.15-0.55mm
Water Consumption	0.3 m3/h (recycle)
Air Consumption	0.6-0.8 m3/ min,0.4-0.7Mpa
Total Power	6.0kw
Weight	1200kg
Machine Dimension	2.9m0.9m1.8m (LWH)

Main Features

1. All processing steps be done automatically , which saves labor and high efficiency .

2. This machine operation is convenient and stable performance .

3. One machine can make different products, just change the mould, It has multifunction .

4. Machine can be customized according to customer requirement .

5.Controlled by Touch Screen with Siemens PLC.

Machine Video Link:

/watch?v=TQXrogv44_E

Molds (3 rows or 4 rows) for DP-420S Lid making Machine

Small PET Cup Formed by Automatic Lid Thermoforming Machine

Aluminum Forming Molds:

Diposable Medical Tray Mold

Food Tray Mold

Our Company Workshop

Customer's Inspection:

Thanks For Viewing Our Product !

Quality Is Our Culture , Service Is Our Attitude ! If You Need More Details, Welcome To Contact Me Any Time !
