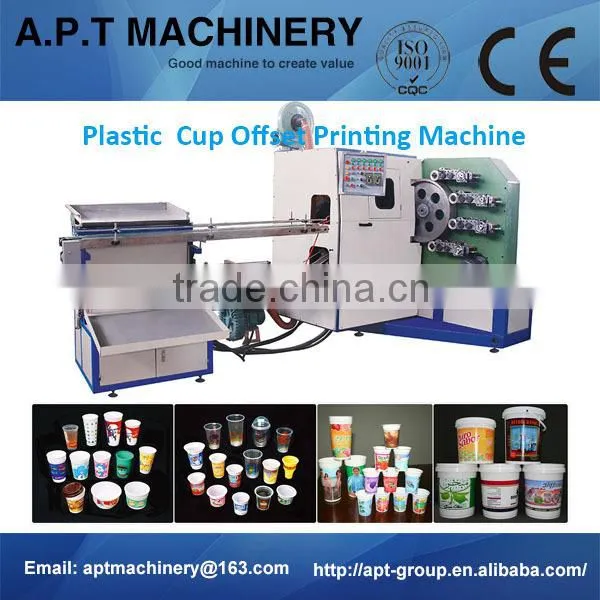

APT-4A Auto Plastic Cup Printing Machine
For Plastic Cup & Bowl
Features
APT-4A Cup printing machine is specially designed to meet the demand of low production capacity and low machine investment from customers. This printer machine has same function as APT-6B, but has smaller Printing size, lower printing speed and simple machine structure.
This printing machine is used for printing the plastics cups, bowls and others containers which have conical shape. We could also make the special designed printing machines according to customers’ requirements.
Main Technical Details
Printing Cup Dia. |
Suitable Cup Height |
Max.Printing Length(mm) |
Max. Printing Bevel |
Max. Printing Speed |
Total Power(KW) |
Overall Dimension (mm) |
φ40-φ100 |
40-120 |
30-100 |
12° |
5,000-10,000 |
14 |
4000×2200×2000 |
Product Details
More Color Cup & Bowl Printing Machine
9 color cup printing machine
Usage:
This printer is suitable for the surface-printing of the plastic containers in the shape of cylinder and cone, such as yoghourt cup, instant noodle-bowl, plastic bucket, soda metal-can and plastic tube and etc.
Main Technical Parameters:
Model |
APT-9160 |
Color |
9 |
Cup Height |
40-160mm |
Top Outside Dia. |
φ60-180mm |
Printing Height |
Max.140mm |
Printing Length |
|
6 segments blanket |
Max.282mm |
3 segments blanket |
Max.502mm |
Printing Degree |
0-15° |
Printing Speed |
|
6 segments blanket |
Max.400pcs/min |
3 segments blanket |
Max.200pcs/min |
Curing Power |
5kW |
Corona Power |
1kW |
Installed Power |
14kW |
Air Consumption |
80m³/hr |

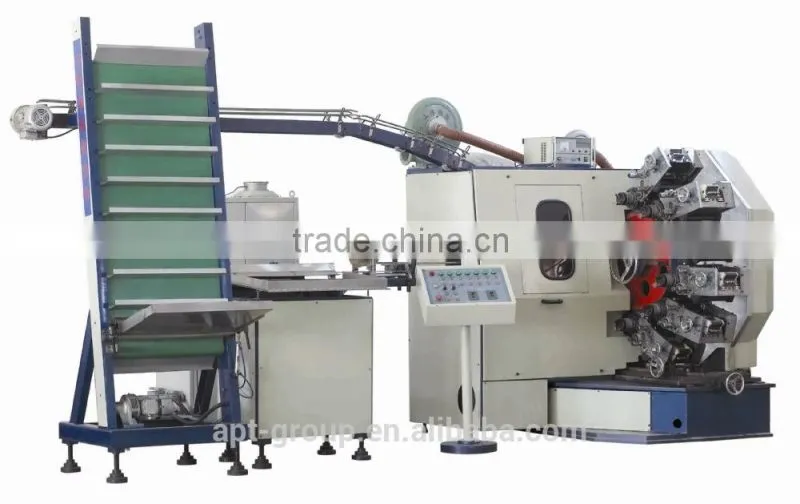

6 color cup printing machine
Features:
We adopt advanced technology and make considerable innovations on design, manufacturing and accessories for APT-6B Printing machine, ensuring flexible, convenient and stable and reliable operation, function and maintenance.
This machine uses for printing the plastics cups, bowls and others containers which the shape is conical.
The specific design for special demand can be made according to requirement. Such as: Printing size, and the colors!
Printing Cup Dia. |
Suitable Cup Height |
Max.Printing Length(mm) |
Max. Printing Bevel |
Max. Printing Speed |
Total Power(KW) |
Overall Dimension (mm) |
φ40-φ140 |
40-180 |
120 |
12° |
5,000-12,000 |
18 |
5000×2400×2500 |
Samples
Home Link
More details you could visit our home website:https://img13.fr-trading.com/
Other machines
Pillow Packing Machine Themoforming Machine Cup Rim Curling Machine Cup Counting & Packing Machine
Packing Machine
Loading Machine
Shipping Machine
Sales Market Distribution
- Installation Services are available with all customers.
- we can send our Enginner to your company to install the machines If customer needs.
- We can train your staffs how to run the machine efficiently and safely.
3. After Sales Service
- Guaranty: One Year and offer the lifetime maintenance service.
- During warranty period and after warranty period, We will come for regular checks on machine and make records to ensure the normal operation of equipment.
- Our experienced engineer are always available for dispatching abroad to help customers.
- Any question, welcome to contact us at any time.
Thanks a lot for viewing our product ! ^_^ If you are interested in our product and have any question, welcome to contact me any time !
Looking forward to your inquiry !Wish you a nice day!
