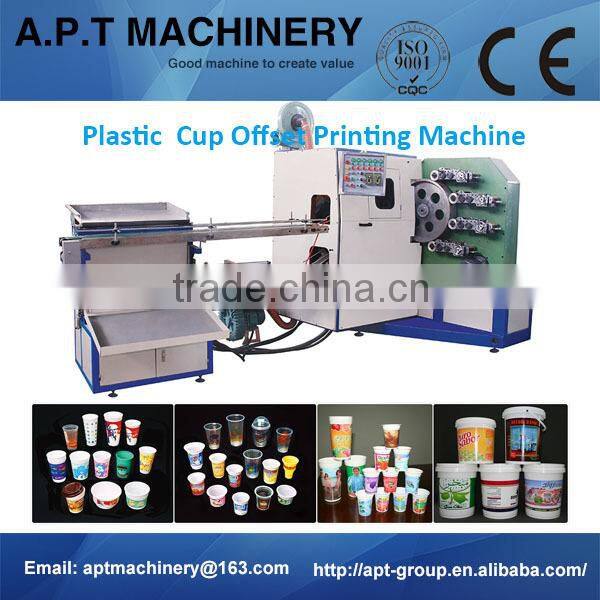

APT-4A Auto Plastic Cup Printing Machine
For Plastic Cup & Bowl
Features
APT-4A Cup printing machine is specially designed to meet the demand of low production capacity and low machine investment from customers. This printer machine has same function as APT-6B, but has smaller Printing size, lower printing speed and simple machine structure.
This printing machine is used for printing the plastics cups, bowls and others containers which have conical shape. We could also make the special designed printing machines according to customers’ requirements.
Main Technical Details
Printing Cup Dia. | Suitable Cup Height | Max.Printing Length(mm) | Max. Printing Bevel | Max. Printing Speed | Total Power(KW) | Overall Dimension (mm) |
φ40-φ100 | 40-120 | 30-100 | 12° | 5,000-10,000 | 14 | 4000×2200×2000 |

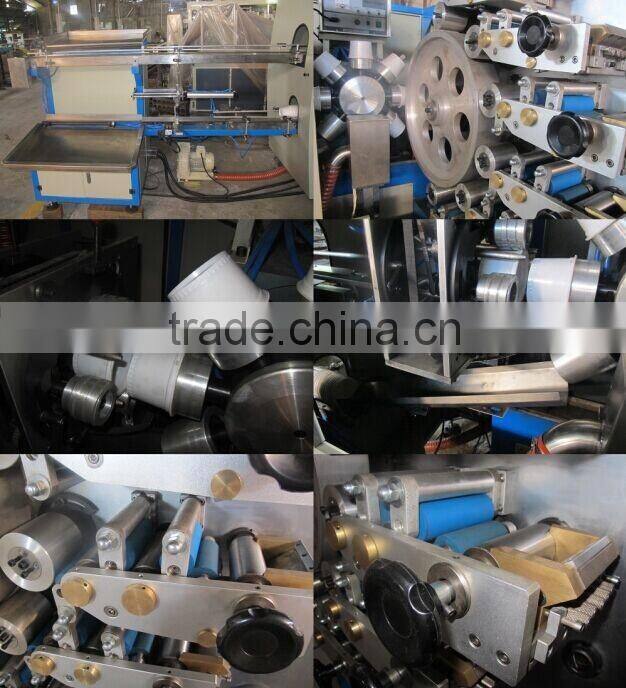

Product Details
More Color Cup & Bowl Printing Machine

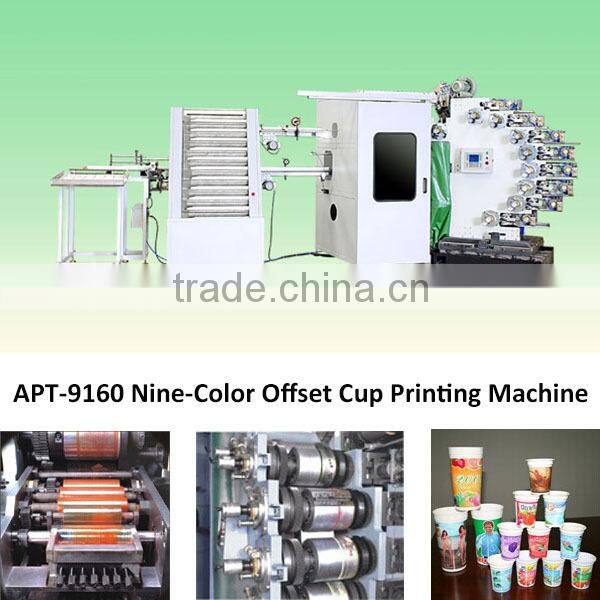

9 color cup printing machine
Usage:
This printer is suitable for the surface-printing of the plastic containers in the shape of cylinder and cone, such as yoghourt cup, instant noodle-bowl, plastic bucket, soda metal-can and plastic tube and etc.
Main Technical Parameters:
Model | APT-9160 |
Color | 9 |
Cup Height | 40-160mm |
Top Outside Dia. | φ60-180mm |
Printing Height | Max.140mm |
Printing Length |
|
6 segments blanket | Max.282mm |
3 segments blanket | Max.502mm |
Printing Degree | 0-15° |
Printing Speed |
|
6 segments blanket | Max.400pcs/min |
3 segments blanket | Max.200pcs/min |
Curing Power | 5kW |
Corona Power | 1kW |
Installed Power | 14kW |
Air Consumption | 80m³/hr |

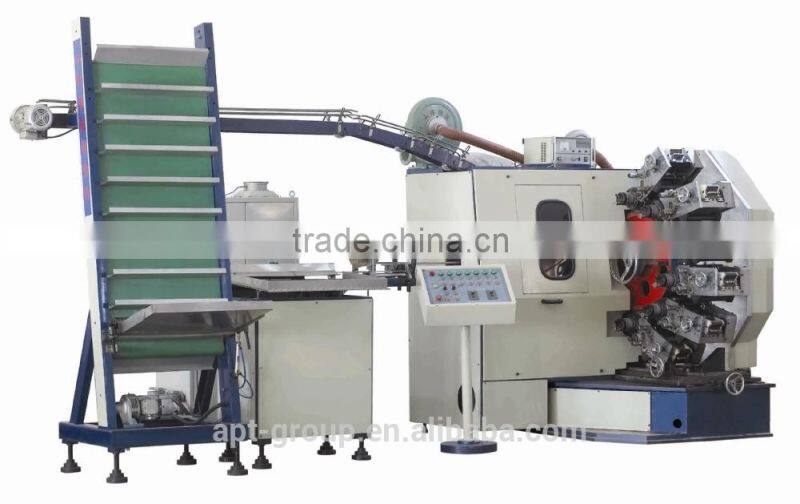

6 color cup printing machine
Features:
We adopt advanced technology and make considerable innovations on design, manufacturing and accessories for APT-6B Printing machine, ensuring flexible, convenient and stable and reliable operation, function and maintenance.
This machine uses for printing the plastics cups, bowls and others containers which the shape is conical.
The specific design for special demand can be made according to requirement. Such as: Printing size, and the colors!
Printing Cup Dia. | Suitable Cup Height | Max.Printing Length(mm) | Max. Printing Bevel | Max. Printing Speed | Total Power(KW) | Overall Dimension (mm) |
φ40-φ140 | 40-180 | 120 | 12° | 5,000-12,000 | 18 | 5000×2400×2500 |

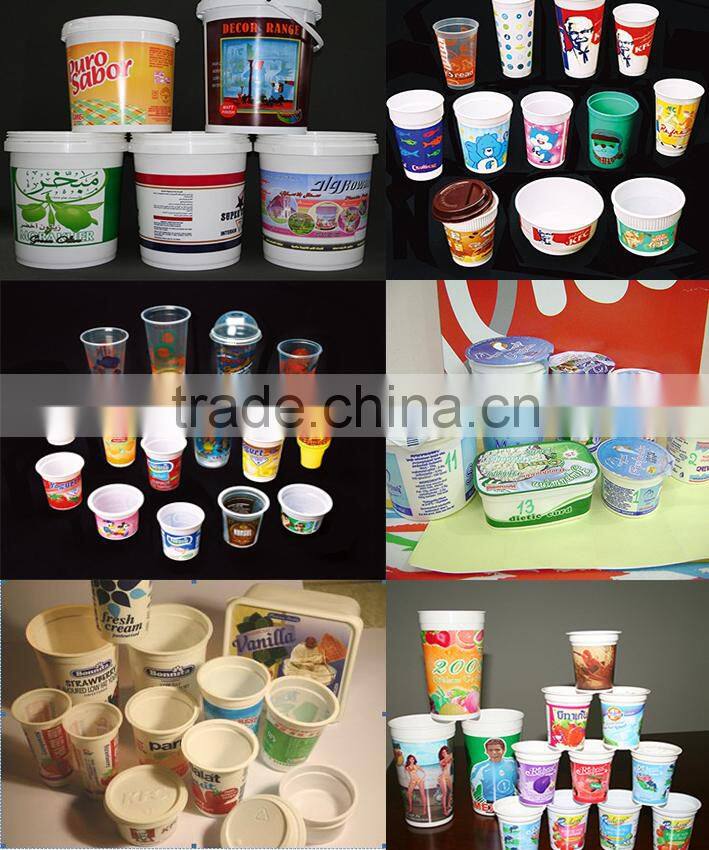

Samples
Shiping And Packing
APT Album
Home Link
More details you could visit our home website:http://aptgroup.en.china.cn/
Other machines
Pillow Packing Machine Themoforming Machine Cup Rim Curling Machine Cup Counting & Packing Machine
Cup lid Disposable Plastic Tray
FAQ
1.Machine adjustment and installation
we can send technicians go to customers' country for mahchine adjustment and installation
2.Guarantee time and after-sale
one year guarantee time, after one year , we have professional after-sales department
providing best service if any problems.
Contact Information
Thanks a lot for viewing our product ! ^_^ If you are interested in our product and have any question, welcome to contact me any time !My Trade Manager is cn1501622077.
My skype is live:aptmachinery.My QQ is 2366125825 .My phone number is 15067890299 . My company address is Feiyun Industry Zone,Ruian City, Zhejiang Province, China .
Looking forward to your inquiry !Wish you a nice day!
