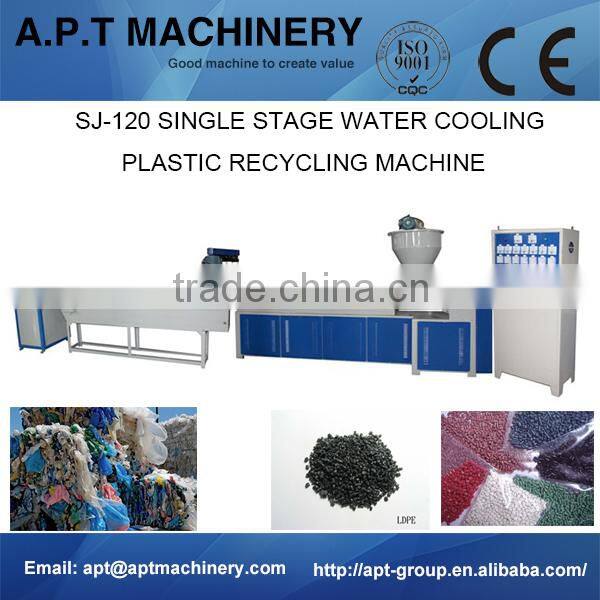

SJ-120 SINGLE STAGE WATER COOLING PLASTIC RECYCLING MACHINE
General Feature:
Material suitable to recycle: PE, PP,PS etc
Power supply: 3-P, 380V; 50Hz
Output: 100-130Kgs/H
Machine weight: around 2800kgs
Extruder:
Motor: 37kw-4P, Brand: Weinuo, from Nanjing city.
Control method: by inverter, brand: Pioneer from Shanghai city.
200# Gearbox: Hard-Tooth Surface, brand: Shuguang, from Xiaoshan city
Screw barrel material: 38CrAlA.
Screw Dia.: 120mm; Barrel Dia.:160mm
L/D ratio: 20:1
Screw length: 2400mm
Barrel heater: Ceramic heater
Hydraulic controlled screen changer(double-plate)
Motor power: 2.2KW
Sieve dia.: 220mm
Material Hopper: designed with compulsory feeder to push the crushed scraps into screw barrel more faster.
Feeder motor: 1.5KW-6P with inverter control
Water tank: made by thick steel, 2500×400×330MM
Air blowing dryer: 1 set
Fan motor power: 1.5KW
Rotary Speed Cutter: 1set
Adjustable Speed Motor: 2.2KW, brand: Weinuo from Nanjing city
Rotary blade dia. 140mm
Electrical Control cabinet: 1 set
Circuit breakers: Schneider
Contact: brand: Schneider
Ameter: brand:Huali, China
Heating temperature: Huali, China
Heating zone: 5 zones
Customer’s Special requirements:
The barrel should be two halves.
Main extruder: belt pulley of the gear box diameter should be 450-5C.
Bearing for rotary speed cutter: SKF brand.
The entry of screen should have a conical degree to avoid the sieve dropping down.
Free spare parts with the machine:
Air switch: 1pc
Contact: 1pc
Ameter: 1pc
Heating temperature: 1pc
Main extruder barrel heater: 1pc

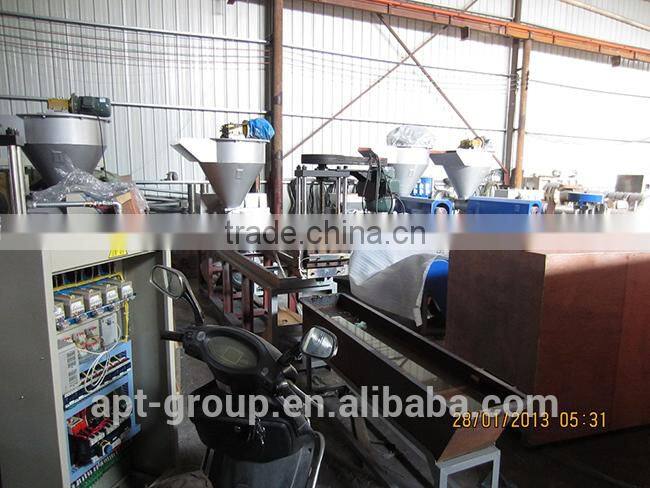

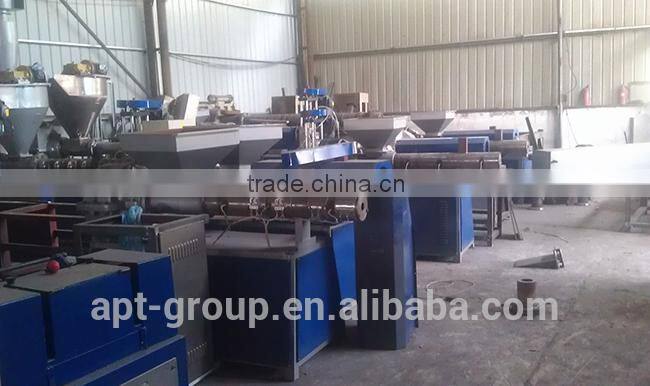

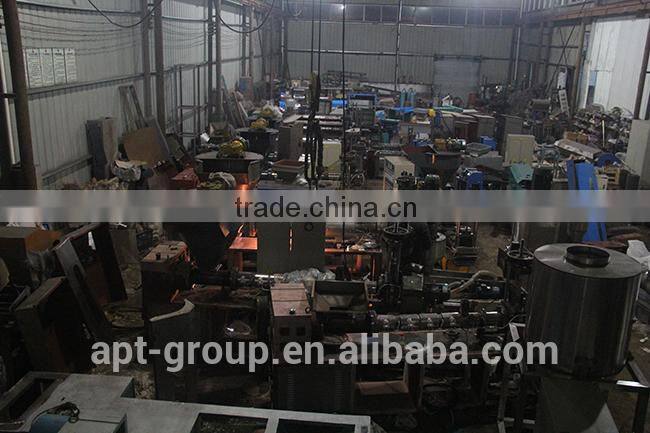

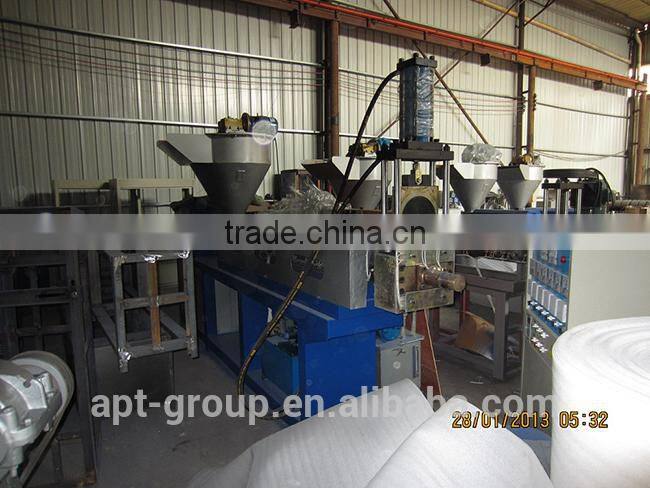

Manufacturing workshop:
Low Price Pelletizing Machine:
Shiping And Packing
Home Link
More details you could visit our home website:http://aptgroup.en.china.cn/
VIDEO LINK
/watch?v=YC_eSQNzB_E
FAQ
1.Machine adjustment and installation
we can send technicians go to customers' country for mahchine adjustment and installation
2.Guarantee time and after-sale
one year guarantee time, after one year , we have professional after-sales department
providing best service if any problems.
