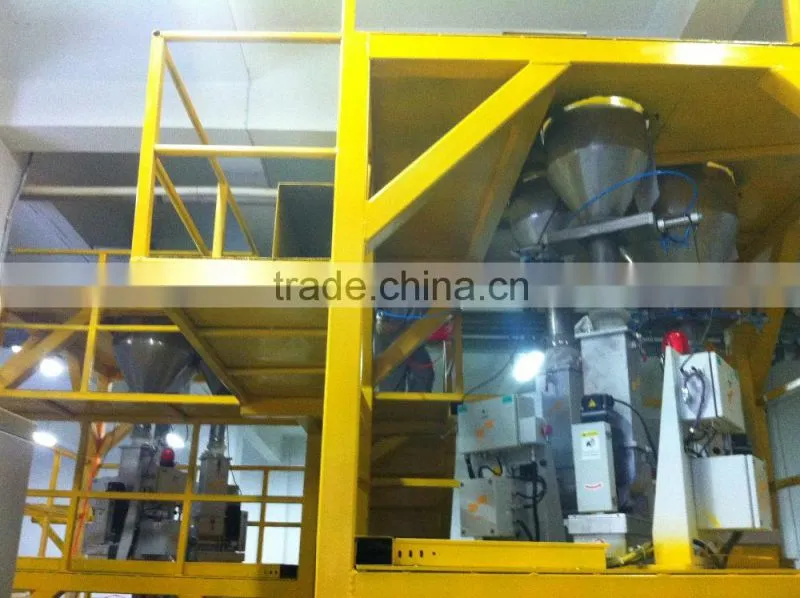

Help Center2015 Loss In Weight Feeder/lowest Cost Loss in Weight Feeder Price
Related Products
-
Professional Liquid Loss in Weight Feeder ManufacturingUS$ 1,000 - 5,000MOQ: 1 Set -
High Accurate Loss in Weight Feeder for Plastic ExtruderUS$ 1,000 - 5,000MOQ: 1 Set
-
Kairong Manual Loss in Weight FeederUS$ 1,000 - 5,000MOQ: 1 Set
-
ZD Series Screw Plastic Material Loader/for Material /PP/PE/PVCUS$ 1300.00 - 1500.00MOQ: 1 Set
-
Plastic PVC Powder Granules Screw Loaders For SaleUS$ 1300.00 - 1500.00MOQ: 1 Set
welcome to Nanjing kairong-GROUP
Brief introduction:
Our factory is a leading plastic machine designer and manufacturer in China.we have been specialized in this field for more than six years, especially expert at the manufacturing of plastic recycling and crushing machine, with good quality and credibility, our products have been exported around the world.Choose us, is to choose rest assured! .
Customized according to your requirement
Details:
1) Screw diameter : 71mm. L/D= 36:1/40:1/44:1/48:1
2)Main drive motor :AC 132kw,speed regulated by ABB transducer inported from switzerlad
3)Screw rotary speed:50~600rpm
4)Screw shaft is made of high-strength alloy 40CrNiMoA.
5)Lenght of each barrel is 290mm,totally 9 pieces of barrels
6)The 1st barrel is the main feeding vent,the 5th is for degassing,8th is vacuum section,and the others are closed barrels.
7)Casting copper heaters for 2.3th barrels.The others are equipped with casting aluminum heaters,All heating power:~50 kw
The extruder figure:
Feeding Degassing Vacuum
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
Four hinge style die section |
8)Reducing and distributing gearbox:
The gearbox reduces the motor speed to the speed of the screw shafts and distributes it to the 2 output shafts,
this gearbox output torque can reach 4.8T/A3
The gearbox consists of:
l Involute gear teeth couplings between the output shaft and screw shafts
l Integrated thrust bearing assembly,radial bearings of the output axis are NSK products
l Bottom part of casing designed as oil sump
| Mode |
Diameter (mm) |
L/D |
Screw rotary speed (r/min) |
Motor power(kw) | Torque(N.m) | Capacity(kg/h) |
| TSE-20 | 22 | 32-44 | 600 | 5.5 | 43 | 1-10 |
| TSE-30A | 31 | 32-48 | 500 | 11 | 105 | 5-30 |
| TSE-30B | 31 | 32-48 | 600 | 15 | 119 | 5-40 |
| TSE-40A | 41 | 32-52 | 600 | 15 | 119 | 65-110 |
| TSE-40B | 41 | 32-52 | 400 | 22 | 263 | 90-150 |
| TSE-52B | 51.5 | 32-64 | 600 | 75 | 597 | 225-250 |
| TSE-65B | 62.4 | 32-64 | 600 | 90 | 716 | 250-300 |
| TSE-75B | 71 | 32-64 | 600 | 132 | 1050 | 350-550 |
| TSE-75D | 71 | 32-64 | 600 | 220-250 | 1990 | 500-1000 |
| TSE-95A | 93 | 32-64 | 500 | 250 | 2387 | 600-1000 |
| TSE-95B | 93 | 32-64 | 600 | 315 | 2506 | 800-1200 |
| TSE-135 | 133 | 32-64 | 500 | 750 | 7162 | 1500-2250 |
Other applications:
1, Fibre reiforcement : glass fibre, carbon fibre reinforced PP, PA, PBT, ABS, PC, POM, PPS, PET, etc.
2, Polymer blending:blending of PC/ABS, PA/ABS, CPE/ABS, PP/EPDM, PA/EPDM, PP/SBS,etc.
3, Incorporation of Fillers: Caco3, Talc, TiO2, carbon black,filled PE, PP, or EVA, etc.
4, Cable Compounds: cable sheath, cable insulation compounds of LDPE, HDPE, LLDPE, MDPE; radiation-crosslinkable compounds, optical fibre protection compounds, heat-shrinkable polymer compounds.
5, Special Compounds: PPR pipe compounds, PE compounds for crosslinked pipes, tobacco filter compounds, etc.
6, High Concentration Color Masterbatches: PE, ABS, PS, EVA, PP,etc. with high concentration of pigments and other processing aids.
7, Masterbatches with Flame-retardants: PE, ABS, PS, EVA, PET, PP, etc. with flame retardants and other additives.
Characteristics:
1, New high speed and torque gear box ,type B. Key bearings of NSK products.
2, Euro-style barrels are made of high quality steel with bimetallic liners, whose refux refrigeration channel makes temperature difference in C areas smaller.
3, Screw elements and kneading blocks are designed accurately by precise process, agile combination,and interchangeability, to fulfill efficient self-cleaning, transmission , compounding and pressure built-up.
4, Water cooling strand pelletizing system insures high granulating efficiency.
Protection measure and cooling method:
1. Torque of each screw reaches 800N.m~1400N.m
2. Linkage protection of motor adopts high quality nylon pin to make sure of safety and efficiency.
3. Side tubes of water-cooling system are of high quality copper material.

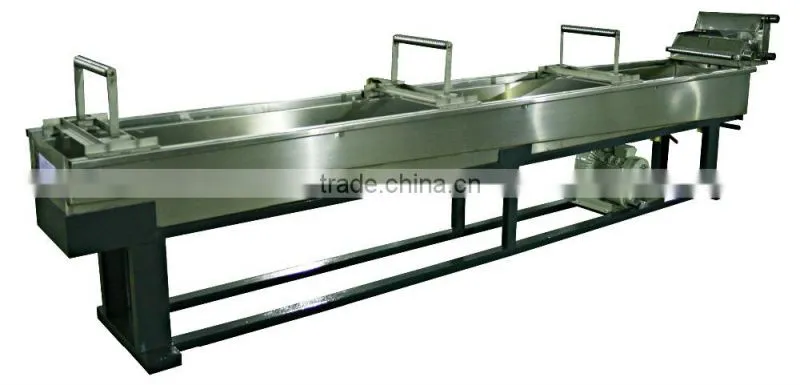

2. Loader 3. Main feeder 4. Side feeder( for short fiber) 5. Long glass fiber 6. Twin screw extruder 7. Water trough 8. Air knife 9. Pelletizer 10. Product hopper
Besides the twin screw extruder, kairong supplies all the auxiliary machines and spare parts.
Auxiliary machines:
Ce and ISO9001 Certificates
Business partner
why choose us?
1.Kaironggroup is an integrated company with research and development production, sales and service departments.
2. 6 Years of experience in packaging machinery.
3. With research and development team, we welcome OEM and ODM orders.
4. Strict QC process to make sure each product with good quality.
5. Various equipments to meet your need.
6. Unique business philosophy brings reliable quality and considerate service
