DPB-400 Automatic Jam/Chocolate Cream/Coffee Powder Small Cup Forming Filling Sealing Machine
1) Application:
This machine is special designed for packing jam/chocolate/butter/honey/cheese automatically.
2) Working Process:
Plastic Sheet (PVC/HIPS) Heating----Tray Thermoforming---Honey/Jam/Chocolate/Cheese Filling ----Aluminum Foil/Plastic Film Hot-Sealing---Impress---Servo Traction--- Cutting---Transport Final Product Out Automatically.
3) Main Technical Parameter:
Model |
DPB-400 |
Running Speed |
20-30 cycles/min (If the forming height is more than 26mm, the speed will be lower) |
Max. Forming Area |
400x180mm |
Max. Forming Depth |
25mm |
Stroke |
40-180mm |
Air Pressure |
0.4-0.6MPa |
Air Consumption |
0.3m³/min |
Heating Power |
2.5KW*3pcs=7.5KW |
Main Motor Power |
2.2KW |
Lower Film Material (Rigid Film) |
PET, PVC, PS Sheet |
Specification of Lower Film Material Thickness (Rigid Film) |
Thickness: 0.15-0.5mm; Width: 410mm |
Specification of Upper Film Material |
Aluminum foil(PTP) : 0.02-0.035mmX 410mm |
Dialysis Paper: 50-100gX: 410mm | |
Power Voltage |
380V/50HZ |
Machine Dimension |
4500x820x1600mm(L/W/H) |
Machine Weight |
3000kg |

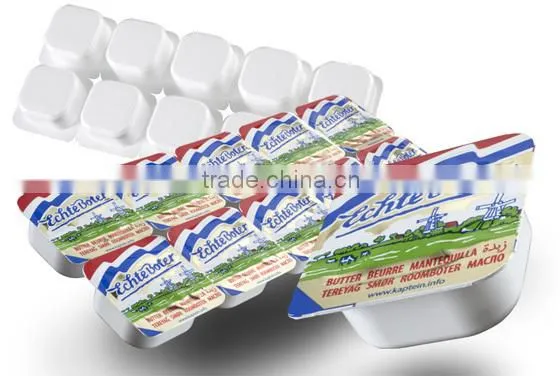

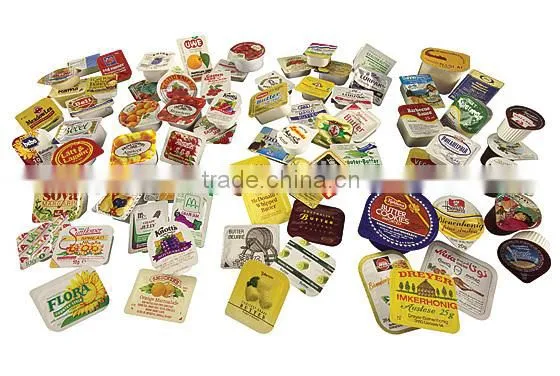

Samples:
The above machine photo is for reference. We will special design the filling system according to customer's products and request!
