Flat-plate Automatic Blister Packing Machine for Candy, Chocolate,Cocoa Powder,Ketchup,Marmalade,Chocolate Cream, Butter, Honey

Flat-plate Automatic Blister Packing Machine for Candy, Chocolate,Cocoa Powder,Ketchup,Marmalade,Chocolate Cream, Butter, Honey photo-1
Flat-plate Automatic Blister Packing Machine for Candy, Chocolate,Cocoa Powder,Ketchup,Marmalade,Chocolate Cream, Butter, Honey photo-2
Flat-plate Automatic Blister Packing Machine for Candy, Chocolate,Cocoa Powder,Ketchup,Marmalade,Chocolate Cream, Butter, Honey photo-3
Flat-plate Automatic Blister Packing Machine for Candy, Chocolate,Cocoa Powder,Ketchup,Marmalade,Chocolate Cream, Butter, Honey photo-4
US$ 40,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Food, Medical
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO PORT
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Food, Medical
Automatic Grade Automatic
Driven Type Mechanical
Voltage 380V/220V/440V, 60HZ, 3 Phase
Power 10KW
Place of Origin Zhejiang, China
Brand Name APT
Model Number DPB-400
Dimension(L*W*H) 4500 x 820 x 1600mm (L/W/H)
Weight 3000kg
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

 DPB-400 Automatic Blister Packing Machine For Jam/Chocolate/Butter/Honey/Cheese

 Flat-plate Automatic Blister Packing Machine for Candy, Chocolate,Cocoa Powder,Ketchup,Marmalade,Chocolate Cream, Butter, Honey



Product Description

1) Application:

This machine is special designed for packing jam/chocolate/butter/honey/cheese automatically.



2) Working Process:



Plastic Sheet (PVC/HIPS) Heating----Tray Thermoforming---Honey/Jam/Chocolate/Cheese Filling ----Aluminum Foil/Plastic Film Hot-Sealing---Impress---Servo Traction--- Cutting---Transport Final Product Out Automatically.



 3) Main Technical Parameter:



Model

DPB-400

Running Speed

 20-30 cycles/min (If the forming height is more than 26mm, the speed will be lower)

 Max. Forming Area

400x180mm

Max. Forming Depth

25mm

Stroke

40-180mm

Air Pressure

0.4-0.6MPa

Air Consumption

0.3m³/min

Heating Power

2.5KW*3pcs=7.5KW

Main Motor Power

2.2KW

Lower Film Material (Rigid Film)

PET, PVC, PS Sheet

Specification of Lower Film Material Thickness (Rigid Film)

Thickness: 0.15-0.5mm; Width: 410mm

Specification of Upper Film Material

Aluminum foil(PTP) : 0.02-0.035mmX 410mm

Dialysis Paper: 50-100gX: 410mm

 Power Voltage

380V/50HZ

Machine Dimension

4500x820x1600mm(L/W/H)

Machine Weight

3000kg



Samples:

Flat-plate Automatic Blister Packing Machine for Candy, Chocolate,Cocoa Powder,Ketchup,Marmalade,Chocolate Cream, Butter, Honey

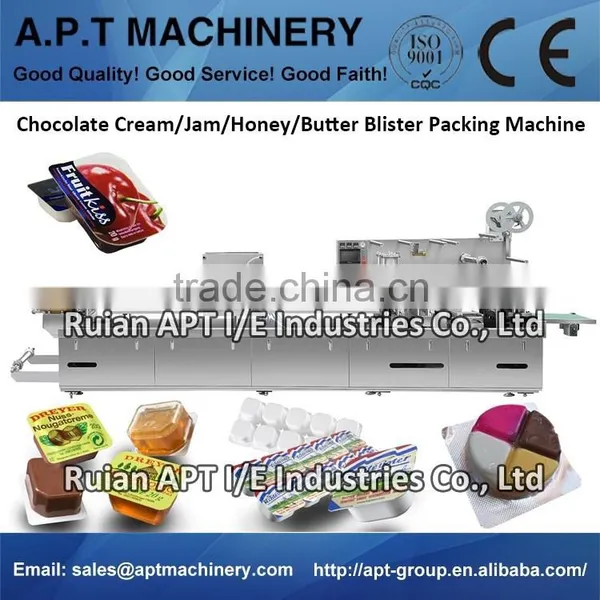

The above machine photo is for reference. We will special design the filling system according to customer's products and request!





Video Link:

/watch?v=0-JSJkub_JE
