BD-420F Body Warm Stick, Hand Warm Stick, Foot Warm Stick Making Machine

BD-420F Body Warm Stick, Hand Warm Stick, Foot Warm Stick Making Machine thumbnail-1
BD-420F Body Warm Stick, Hand Warm Stick, Foot Warm Stick Making Machine thumbnail-2
BD-420F Body Warm Stick, Hand Warm Stick, Foot Warm Stick Making Machine thumbnail-3
BD-420F Body Warm Stick, Hand Warm Stick, Foot Warm Stick Making Machine photo-1
BD-420F Body Warm Stick, Hand Warm Stick, Foot Warm Stick Making Machine photo-2
BD-420F Body Warm Stick, Hand Warm Stick, Foot Warm Stick Making Machine photo-3
US$ 20,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Commodity, Medical
Packaging Type:
Bags
Contact Supplier Request Quote Chat Now
Ruian APT I/E Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Chemical, Commodity, Medical
Packaging Type Bags
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Mechanical
Voltage 380V,50HZ
Power 4.5KW
Place of Origin Zhejiang, China
Brand Name APT
Model Number BD-420F
Weight 1200kg
Dimension(L*W*H) 3950*1070*1700
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

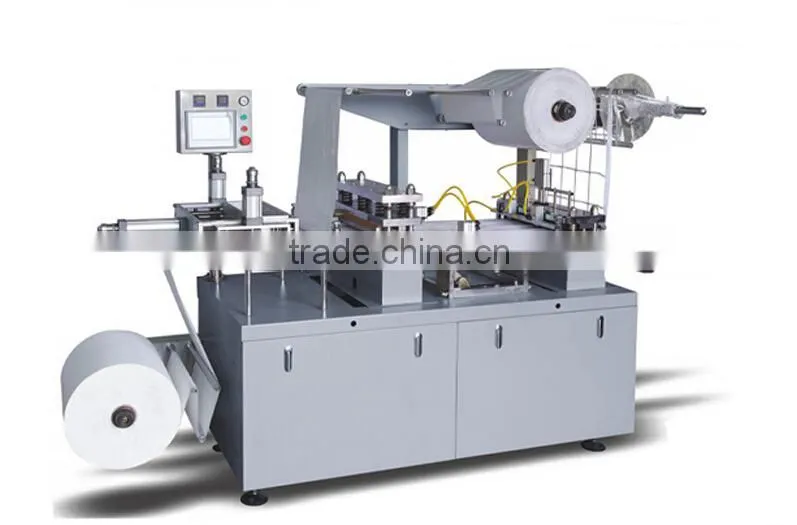

Automatic Warm Pad Forming Machine

BD-420F Body Warm Stick, hand warm stick, foot warm stick making machine



Usage:



This machine is specially designed for packing warm packs, heating pads, body warmers, foot pad warmers, warm uterus past, self-heat activated materials, such as activated carbon and etc. These warm packs are widely used in winter for both male and female.



Machine Features:



1. Heat sealing, coding batch number, creasing, punching and other devices all are fixed core shaft with positioning rack. When you turn the handle wheel, different positions can easily move on the mandre. This machine is equipped with scales, calibration convenient, fast and accurate positioning.



2. Manipulator traction with a double pendulum device, which increases traction adjustable stroke range (up to 220mm). It can be suitable for various sizes of medicine packaging. Different working positions, such as Registration heating, up&down cobwebbing, heat sealing by cylinder, automatic feeding, automatic coding batch number, punching, is simple and reliable operation.



3. The main transmission part adopts parallel shaft helical gear boxes. The molds for heat sealing, indentation etc are positioned by pin, plate fastened, accurate positioning, convenient change molds, save packing material.



Main Technical Parameters:



Model

 BD-420

Mold Arrangement

                      12pcs (accoridng to pad size:100×130mm)

Punching Speed

1-15cycles/min

Bag Size(mm)

L×W  (50-150)×(50-120)

Material Used

Non-woven fabrics, gum and other composite PE film

Bagging Speed(bags/min)

120-180(according to different sizes)

Max.Film Width(mm)

                                                    400

Sealing Method

                                    Four side heat sealing

Usage

Different kind of warm pack

  Material Filling Measurement   Methods

Calculated using the coordinates of the push plate volumetric method

Power Supply

380V/220V 50HZ 4.5KW

Air Pressure

                                             0.4-0.6Mpa

Mold Cooling

Recycling water cooling

Dimension(mm)

3950×1070×1700

Weight(kg)

1200

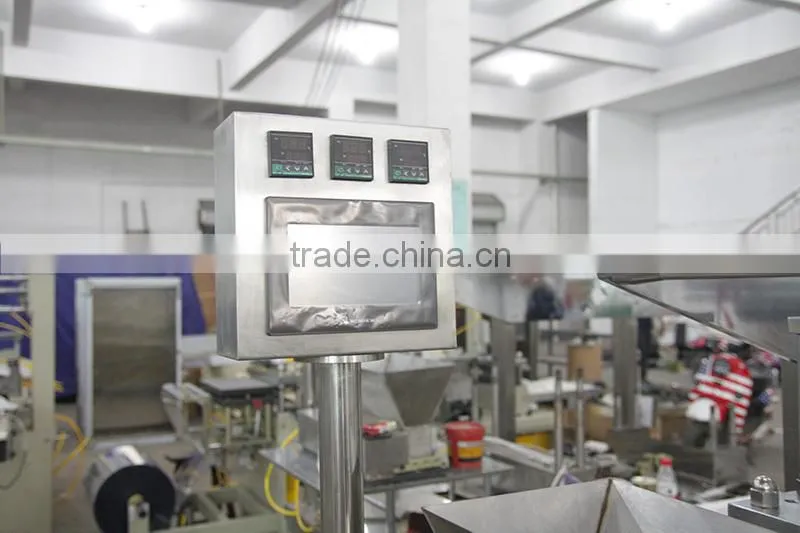

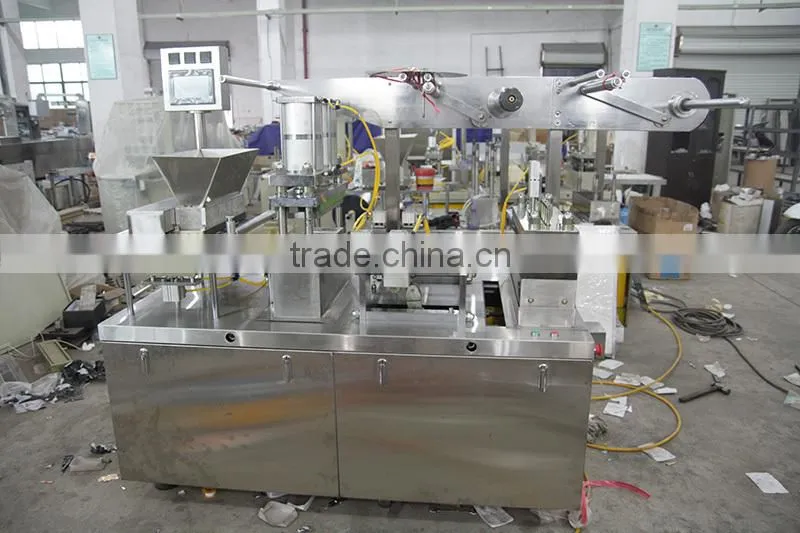

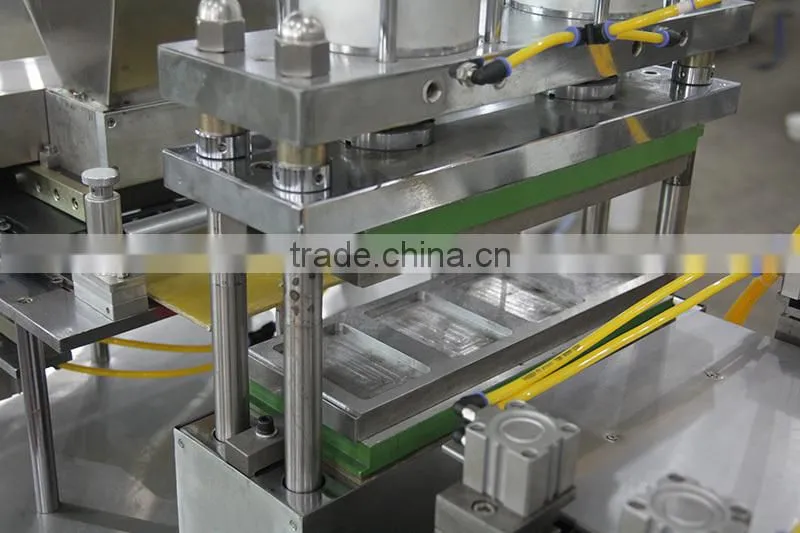

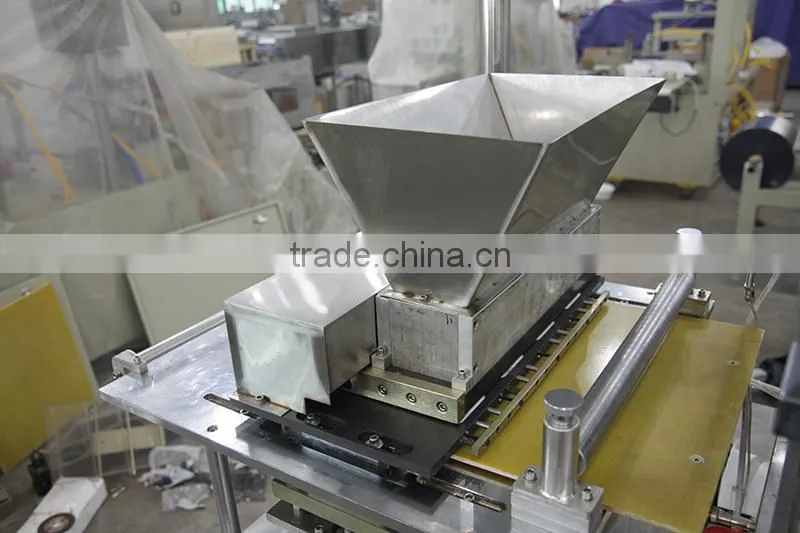

  Manufacturing Workshop:

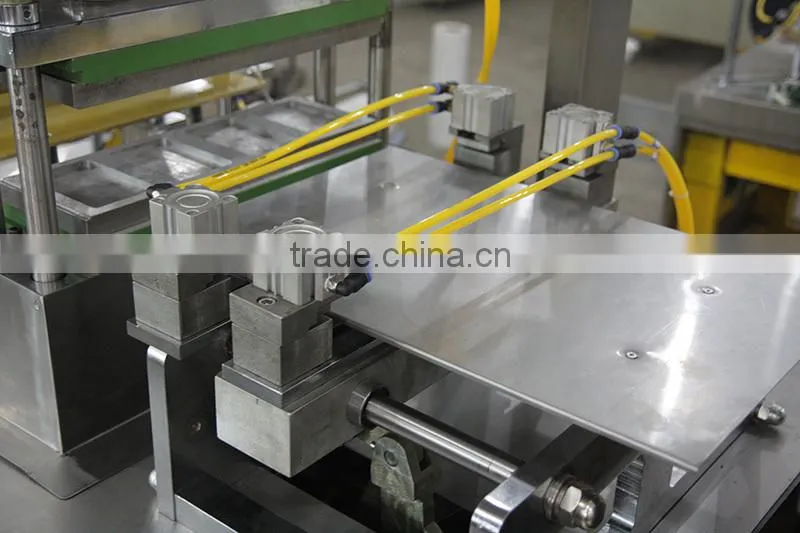

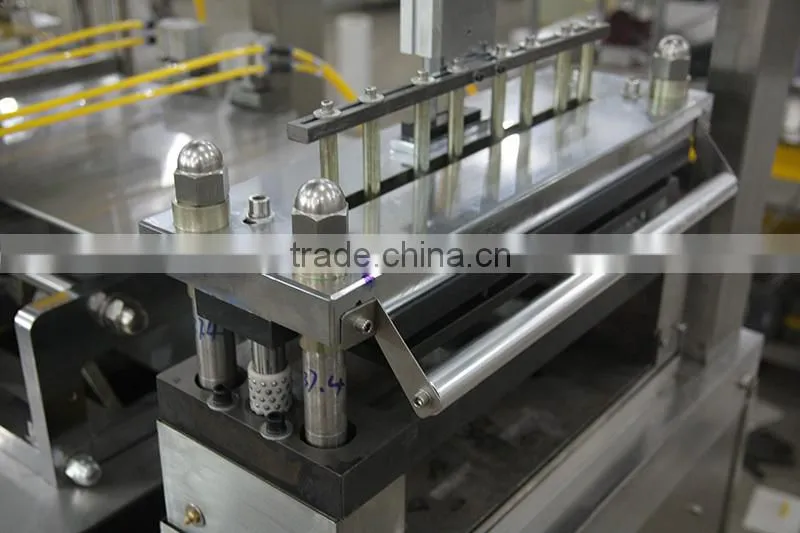

BD-420F Body Warm Stick, hand warm stick, foot warm stick making machine



BD-420F Body Warm Stick, hand warm stick, foot warm stick making machine



BD-420F Body Warm Stick, hand warm stick, foot warm stick making machine



BD-420F Body Warm Stick, hand warm stick, foot warm stick making machine



BD-420F Body Warm Stick, hand warm stick, foot warm stick making machine



BD-420F Body Warm Stick, hand warm stick, foot warm stick making machine

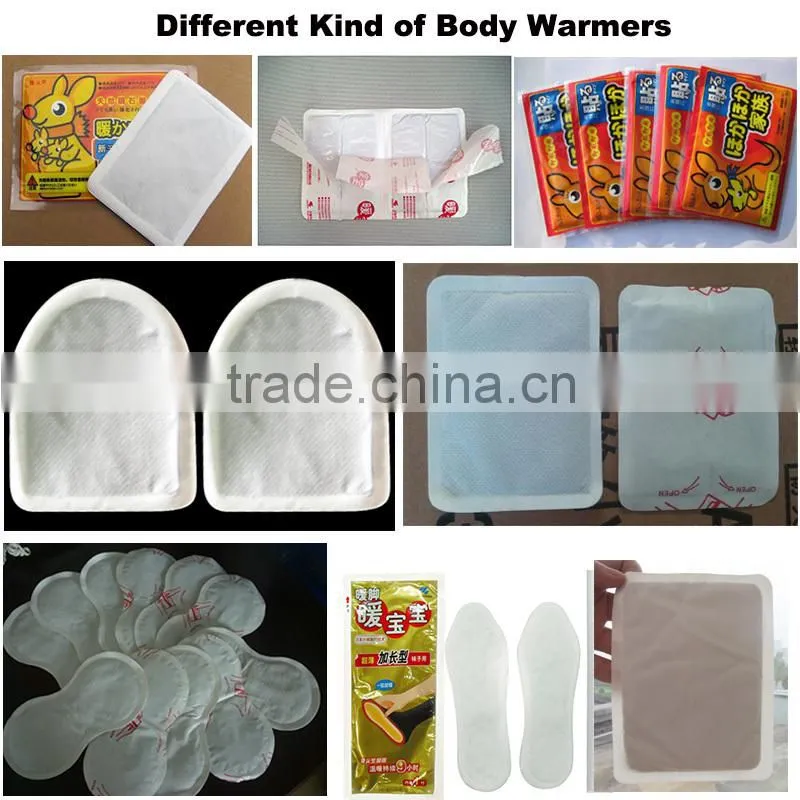

  Samples:

BD-420F Body Warm Stick, hand warm stick, foot warm stick making machine
