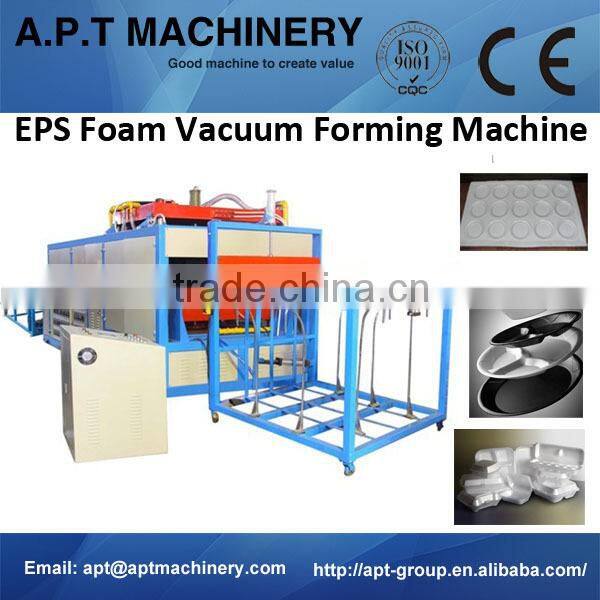

PS (Styrofoam) Foam Plastic Vacuum Thermoforming Machine
I. Features:
EPS Foam Hi-speed Vacuum Forming Machine is an all-powerful thermoforming machine with integration of vacuum forming, pressing forming and synthetically forming. It can be sed for processing many kinds of plastic sheets for making PS foam lunch dishes, plates, boxes, bowls, covers, etc. This vacuum forming machine adopts digital system, fully automatic PLC mechanical and
electronic integration control, touch screen to control the working program .
It is easy to operate and of high efficiency .It features reliable stability, large forming area,
fast speed highly automation and economic on manpower.
II. Main Technical Parameter:
Model | CJ-600/850 | CJ-600/1200 | CJ-1100/1250 |
Used Sheet | PS Foam Sheet | ||
Max. Forming Area | 600×850mm | 600×1200 mm | 1100×1250mm |
Sheet Thickness | 0.6-4mm | ||
Forming Depth | ≤130mm | ≤130 mm | ≤160 mm |
Forming Speed | 4-20 Moulds/Min | 4-20 Moulds/Min | 4-20 Moulds/Min |
Forming Pressure | 12T | 15T | 20T |
Air Comsumption | 1.5 m3/min | 1.6 m3/min | 2.0 m3/min |
Installed Power Capacity | 80KW | 100KW | 125KW |
Machine Dimension | 13.0×1.5×1.8m | 13.5×1.5×2.3m | 15×2.1×2.5m |
Machine Weight | 7T | 8T | 10T |
Power Supply | 380V50HZ Tri-phase, Four Wire | ||
III. Molds For PS Foam Thermoforming Machine:
The products made by this type PS foam vacuum forming machine are connected (Please see photos as following). We need to use punching machine (cutting machine) to cut the products into single piece.
Products made by PS foam vacuum forming machine
Duplex Punching Machine (Cutting Machine)
Cutting Blades(It's for your reference and we will make cutting blades according to the samples.)
IV. PS Foam Samples:
Normally, the complete production line for making PS foam food containers (such as fast food boxes, take-away food containers, plates, bowls, etc) include PS foam sheet extruder (This machine is used for produce foam sheet from raw material (GPPS resin), PS foam vacuum forming machine, molds, punching machine, pelletizing machine and auxiliary machines (air compressor, cooling tower). We supply complete production line for customers. If you need to know more about other machines, pls visit the following links. Thanks!
Shiping And Packing
Home Link
More details you could visit our home website:http://aptgroup.en.china.cn/
VIDEO LINK
Hi-Speed EPS Foam Lunch Boxes Forming Machine
/watch?v=ro33Dq-P2_4
