Help CenterPP Rectangular Container Cover Thermoforming Machine With Stacker
Related Products
-
PP/PS/HIPS/PVC/PET Thermoforming Sheet Making Plant ManufacturerUS$ 1,000 - 50,000MOQ: 1 Set -
Sheet Extrusion Thermoforming Line for Disposable Plastic GlassUS$ 1,000 - 50,000MOQ: 1 Set
-
High Speed PP/PS/PET/PVC Sheet Making Plant/Sheet Plant ManufacturerUS$ 1,000 - 50,000MOQ: 1 Set
-
High Capacity Plastic Extrusion Line for PP and HIPSUS$ 28,000 - 35,000MOQ: 1 Set
-
Plastic Glass Thermoforming Machinery and PP/PS Extruding Sheet Line for ThermoformingUS$ 25,000 - 40,000MOQ: 1 Set
Automatic Plastic Thermoforming Machine (Tilt-Mold)
Machine Video Link:
Usage:
APT-70 Automatic Thermoforming Machine special designed for high quality cups,sheet feeding and drawing adopt imported servo motor.
It is used for forming PP,PS,HIPS,PVC,PET and PLA plastic sheets, which can be widely used to produce all kinds of plastic boxes, containers and other plastic wares, such as ice-cream cups,milk cups,chocolate package boxes,candy boxes and fast-food boxes etc.
Features:
Main Technical Parameter:
Max. Forming Area | 320x680mm |
Max. Depth of Draw | 120/150 mm |
Suitable material | PP, HIPS, PVC, PET, PVC sheet |
Max. Sheet Width | 550-720mm |
Material Thickness Range | 0.4-2.0mm |
Max. Material Roll Diameter | Φ1200mm |
Cycles per Minute(dry run) | 15-33strokes/min |
Power Supply | 3-N AC380V±15V |
Heating Power | 80KW |
Main Motor Power | 11KW |
Plug Servomotor Power | 7.5KW |
Index Motor Power | 3.5KW |
Air Pressure | 0.7-0.85Mpa |
Air Consumption | 2000-3000 Liters/min |
Cooling Water Consumption | 15 Liters/min (15° - 20° C) |
Machine Dimension | 7000mm*2300mm*2650mm |
Machine Weight | 7500kg |

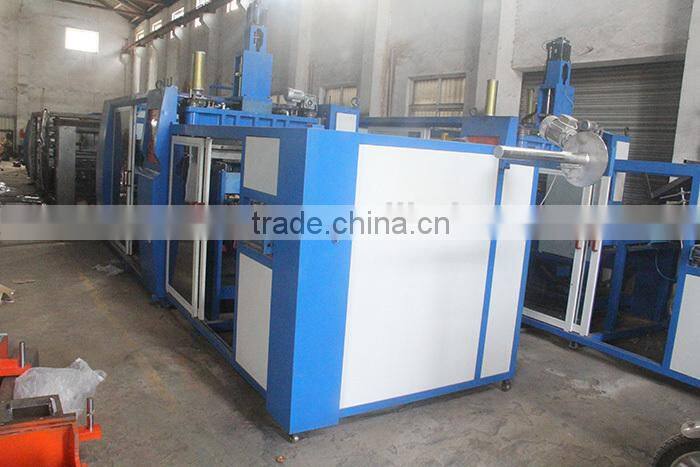

Machine Manufacturing Photos:

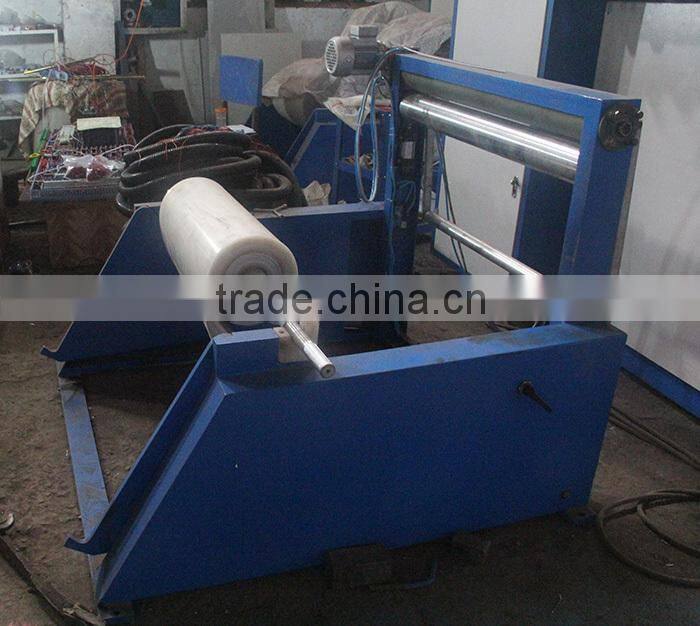

Auto Loading&Unwinding Unit
Top&Bottom Heating Oven

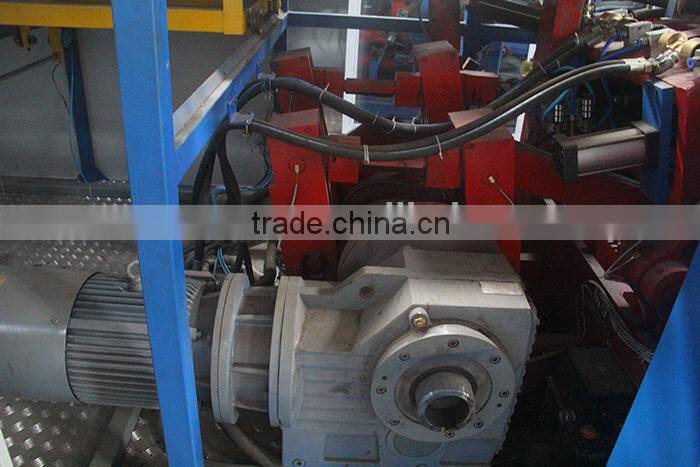

Cam Driving System

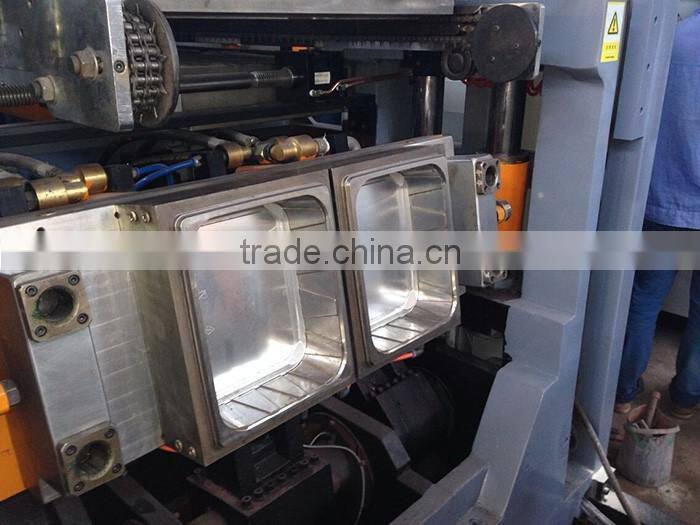

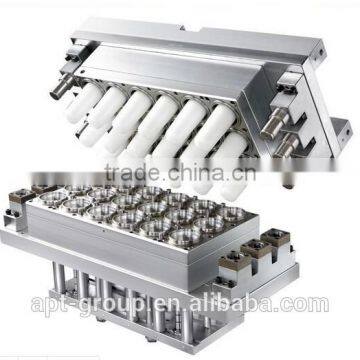

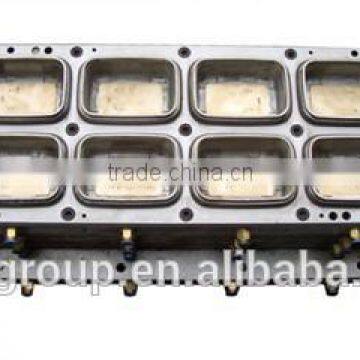

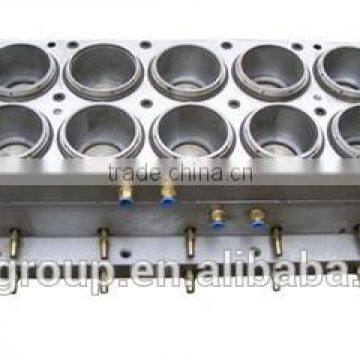

Big Container PP Mold

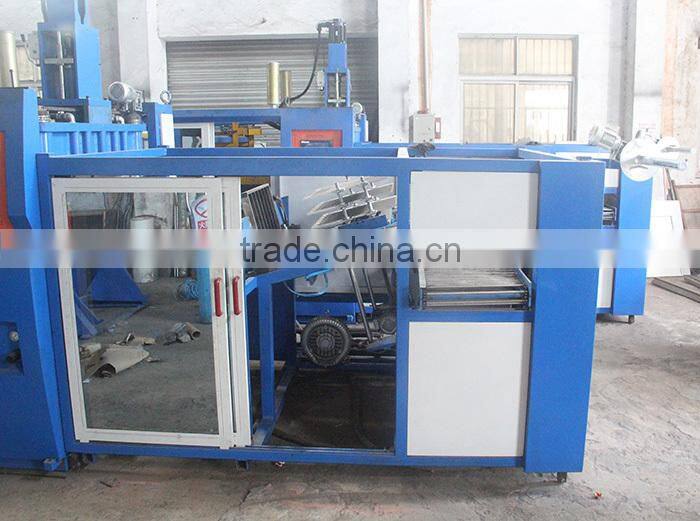

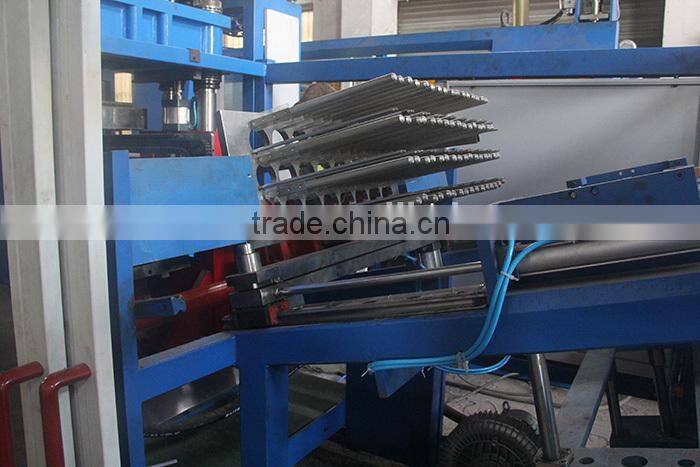

Pick-Up Stacking and Counting System

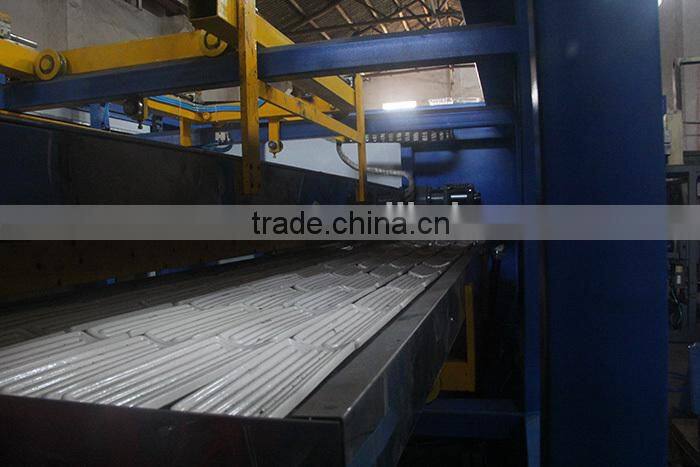

Conveying Table Units
Partnership:
More details of the machine, pls contac with us!
Jacky Hsu
Mobile: 0086-13736907307
Trade Manager: wzapt
Send Inquiry to This Supplier
