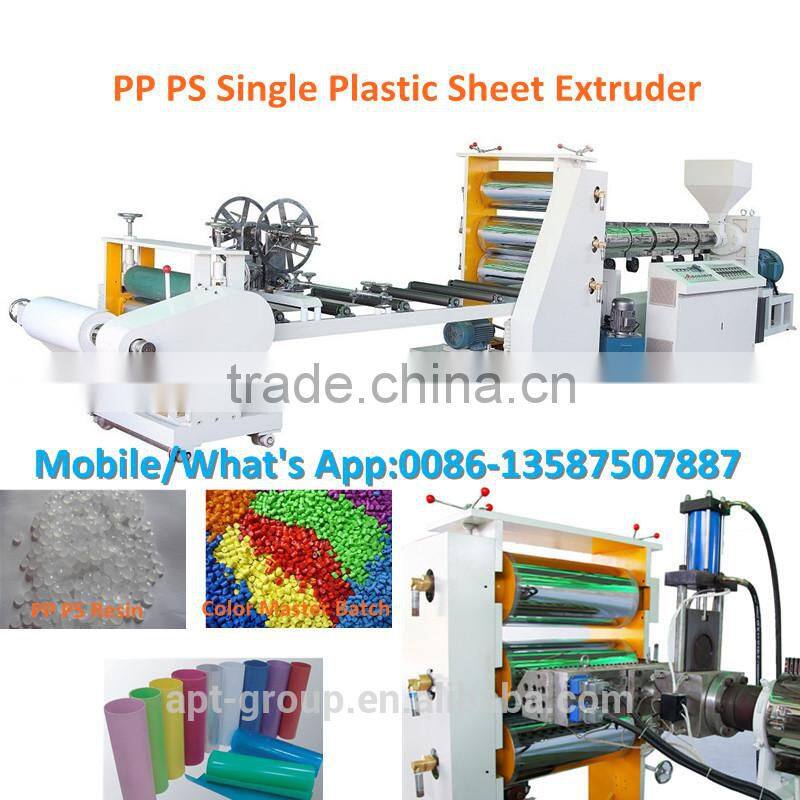

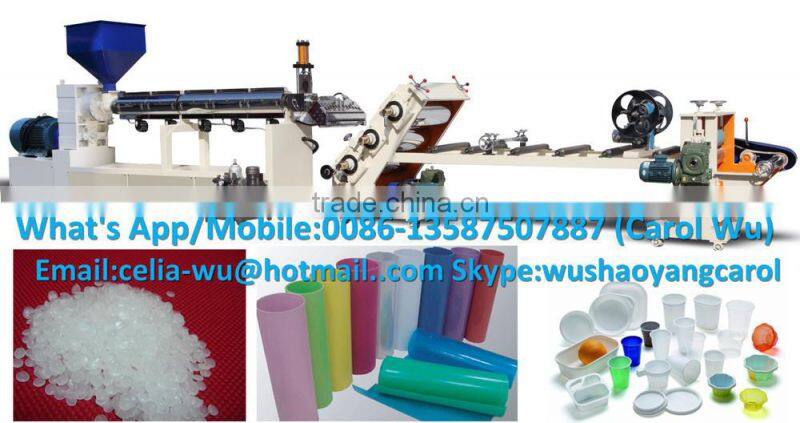

Plastic Sheet Extrusion Machine / PP Sheet Making Machine / PS Sheet Making Machine
- 10 Set / Sets per Month
- NIngbo Port
- T/T L/C D/P D/A
Product Details
| Condition: | New | Application: | Sheet | Plastic Processed: | Other, PP PS PE |
| Screw Design: | Single-screw | Automatic Grade: | Automatic | Place of Origin: | Zhejiang, China |
| Brand Name: | APT | Model Number: | SPJ-110/33-680A | Voltage: | 380V/50H,3P |
| Power(W): | 100KW | Dimension(L*W*H): | 12500*1850*2200mm | Weight: | 8 Ton |
| Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Golden Supplier Plastic Extrusion Machine Line, PP PS Sheet Extruder from Wenzhou
I. Usage:

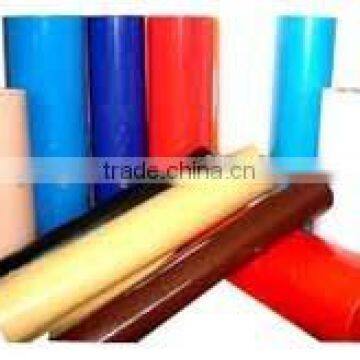

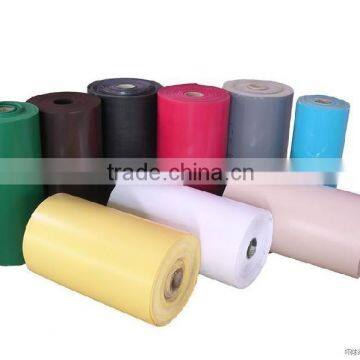

This machine is used to produce PP/PS plastic sheet rolls for thermoforming machine and vacuum forming machine, which is used for making disposable plastic water drinking cups, juice cups, tea cups, milk cups, ice cream cups, yogurt cups, jelly cups, bowls, food containers, lids, flowerpot, seeding trays, etc varous packages.
II. Main Technical Parameter:
Target material | PP/HIPS/GPPS |
Efficient width of sheet | 680mm(adjustable) |
Thickness of sheet | 0.3~2.0mm |
Tolerance of thickness | ±0.01mm |
Main Motor Power | 45KW |
Screw Dia. | 110mm |
Screw L/D | 33:1 |
T-die Width | 800mm |
Size of Calander Roller | Φ350×780mm |
Maximum output | 150kg/hr |
Power Voltage | 380V/50HZ, 3P, 4Wire |
Approx. Machine Dimension | ~12500×1850×2200mm |

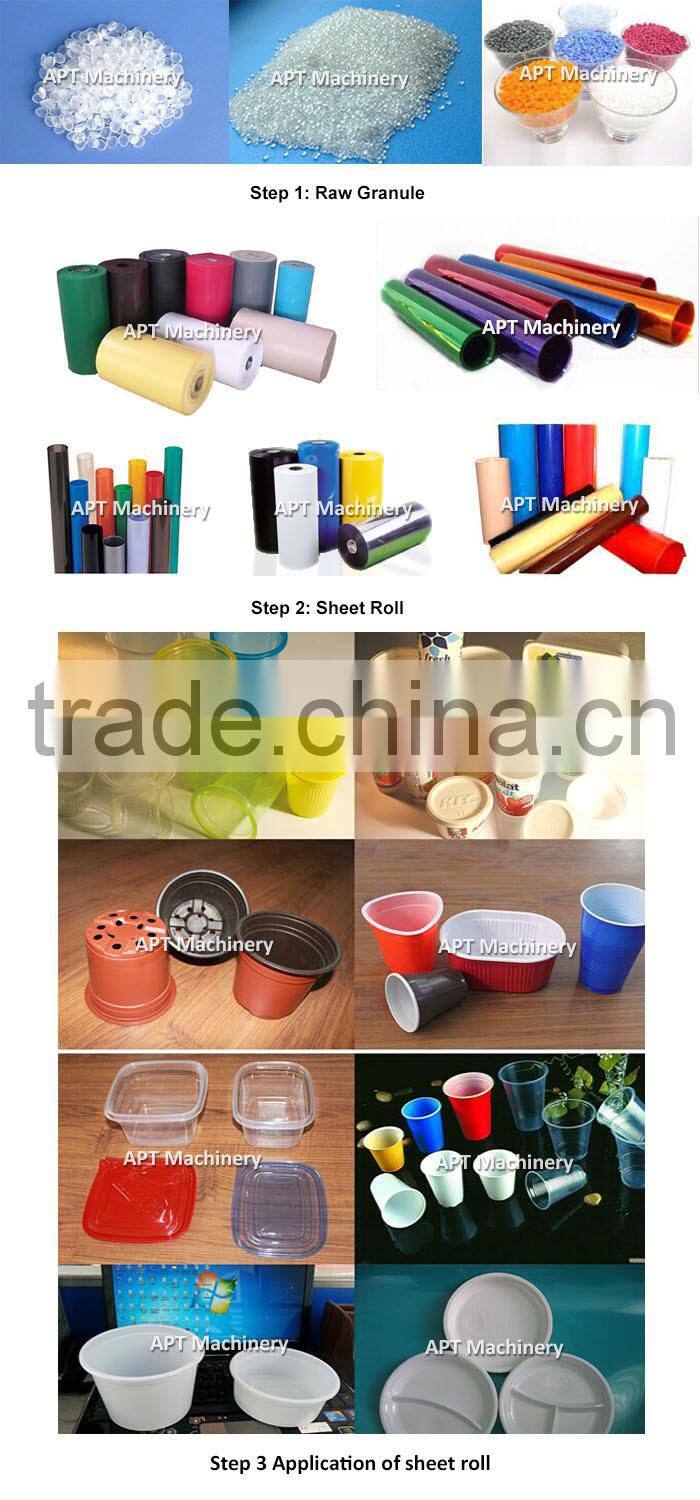

III. Working Process:

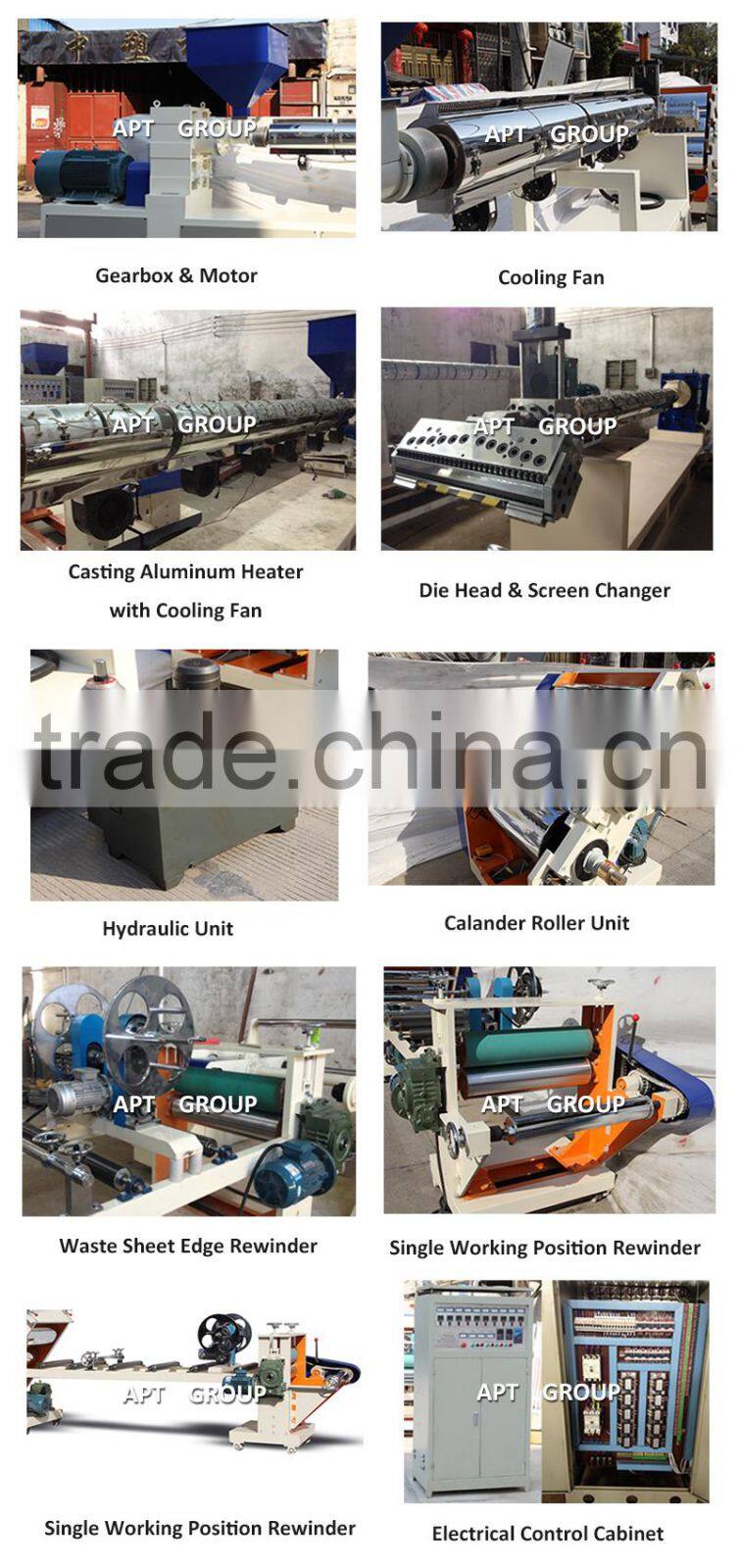

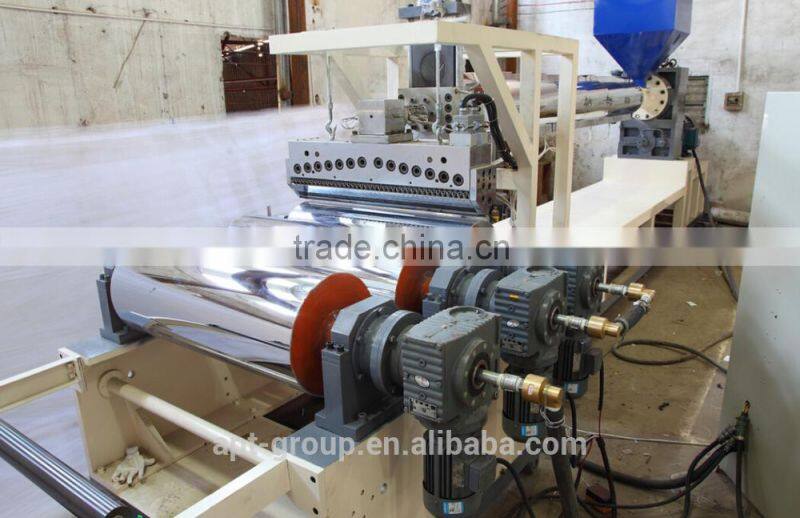

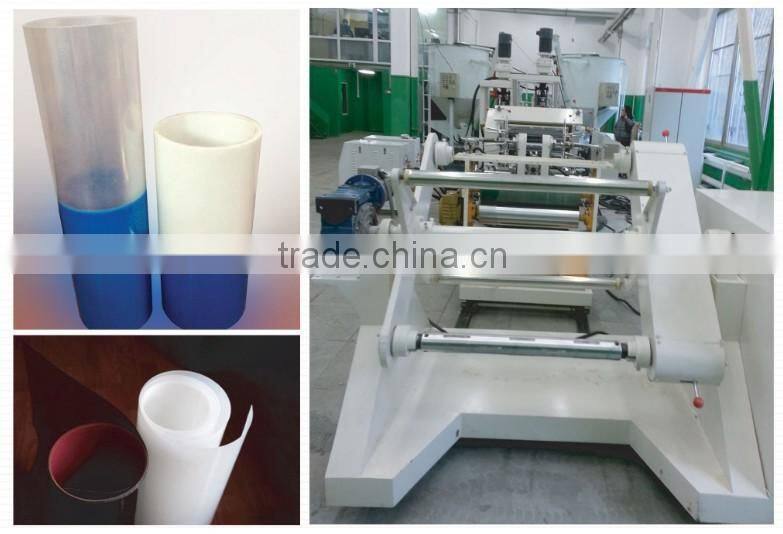

IV. Machine Details:
V.The following extruders are also available.
1) SPJ-110/33-680B Single Layer PP/PS Sheet Extrusion Line (Vertcial Calander Roller)
2) SPJ-110/33-680C Single Layer PP/PS Sheet Extrusion Line (Horizontal Calander Roller)
3) Double Layer PP/PS Sheet Extrusion Line:

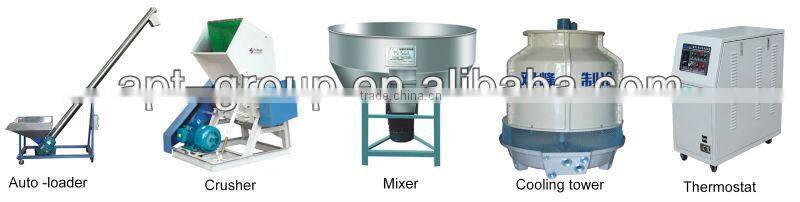

VI. Auxiliary Machines For Sheet Extruder:
Thanks for visiting our website! You are welcome to contact with us to get more details at any time!
You are welcome to contact with us at any time!
Skype: wushaoyangcarol
Trade Manager:cn1501622000
Mobile: 0086-13587507887
