ceiling filters filtr. class F5 for spray booth use

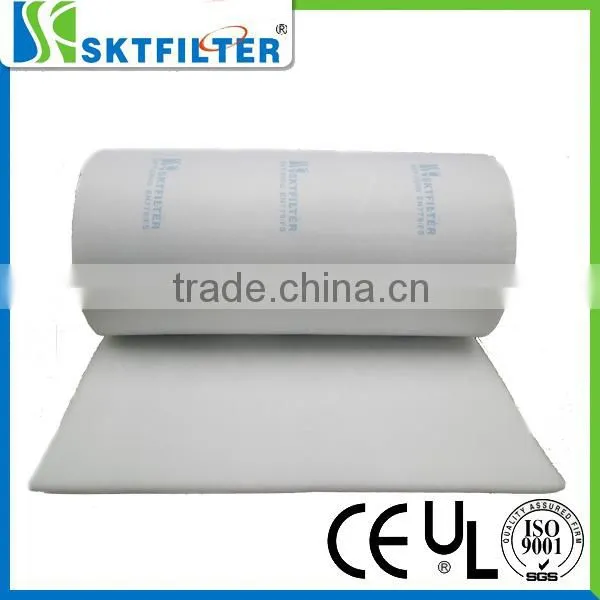

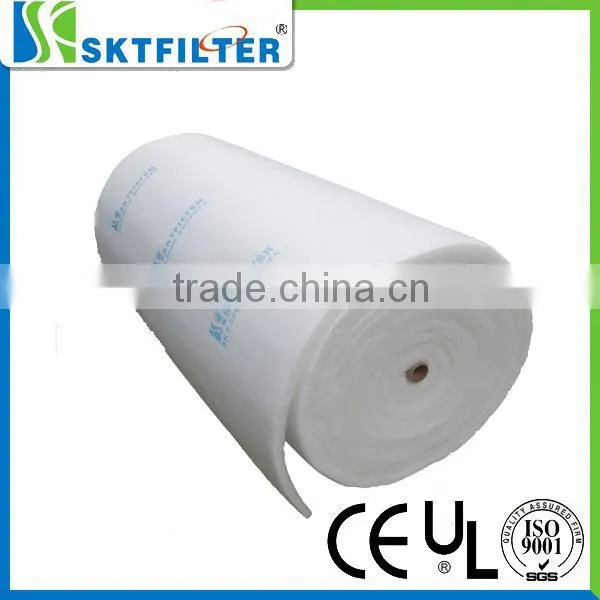

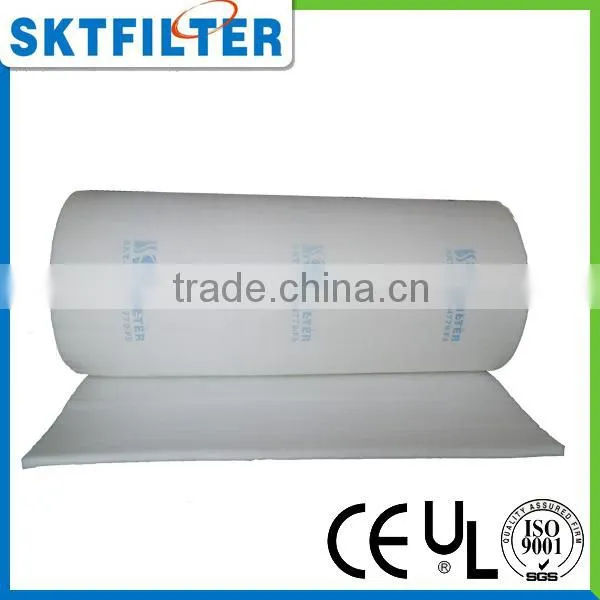

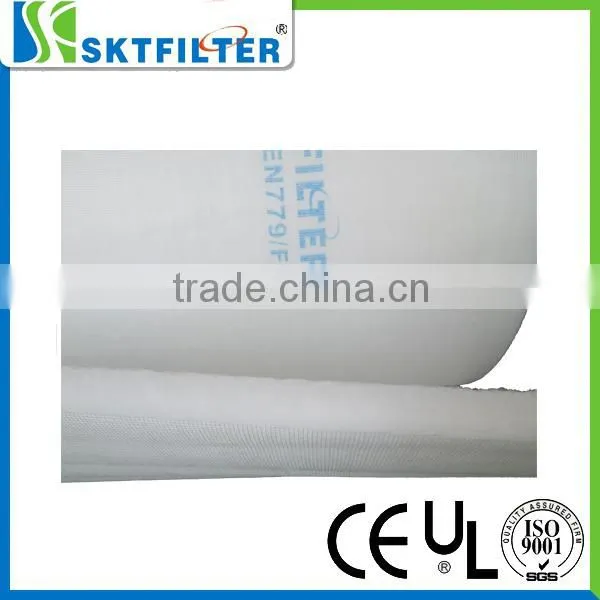

SKT-600G Solid Glue Ceiling filter

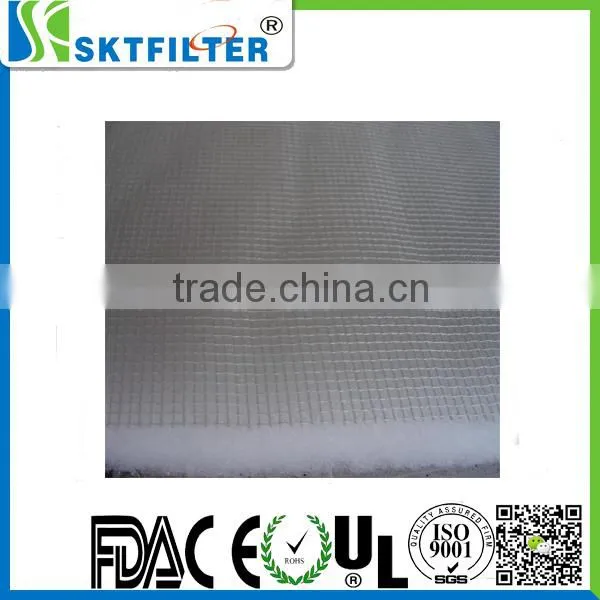

Because of use of the longer and anti-broken synthetic fiber and higher quality water resin, this series makes the surface smooth and achieves higher air flow rate, so that this series has more higher absorbility for the tiny particles and assures the space much more clear.with net and fabric surface, it has more efficient arrestance and longer use life. This product is widely used in air ventilation systems of auto spray booths, pharmaceutical and all kinds of purifying spaces and also metallurgical industry and higher requirements of air purity and surface painting fields etc.

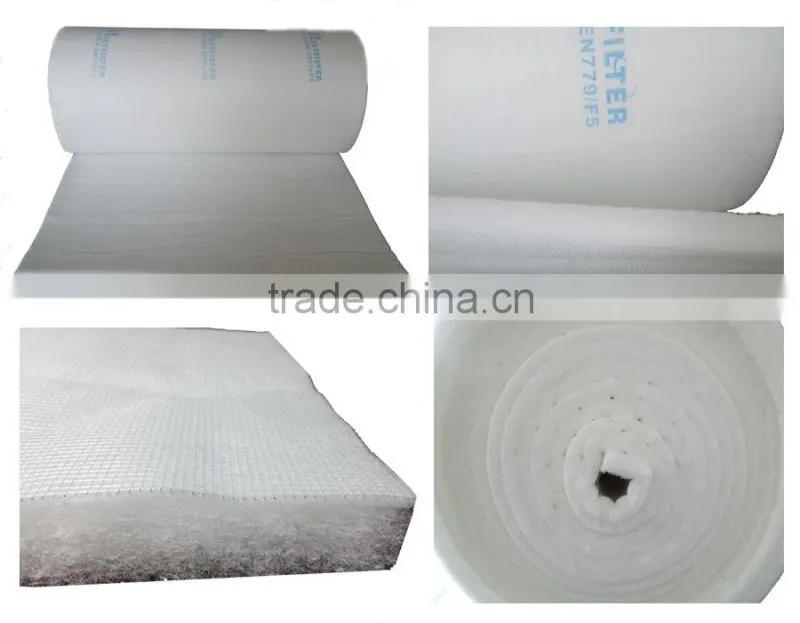

Composited of imported high-performance, break-resistant synthetic fiber in gradual technology ;Due to complete penetration of viscosity in media, dust particles can not pass. Fully filtered air evenly spreads to form a laminar flow state to achieve the best spray results.
Application: capturing to particles, especially
for the top part of spray booth, prefiltration through
air filter program, Hi-tech electronics, aerospace and
other military areas etc.
Type: supply pads or rolls size
Media: synthetic fiber with gradual density, full
imregnated with adhesive treatment
EN779 class: F5
Weight: | 600gr/sqm | 560gr/sqm |
Thickness: | 20mm | 20mm |
Air Flow Rate: | 900m3/h | 936m3/h |
Initial Resistance: | 26pa | 25pa |
Final Resistance: | 400pa | 400pa |
Medium Arrestance: | 96.80% | 95.40% |
Air Velocity: | 0.25m/s | 0.26m/s |
Dust Holding: | 428gr/sqm | 407gr/sqm |
Max Temperature: | 1200C | 1200C |
Filtration Class: | F-5(DIN 24185) | F-5(DIN 24185) |
Flame Resistance: | F-1(DIN 53438) | F-1(DIN 53438) |
Our company is one of the best international enterprises, specialized in producing the relevant products in the field of filtration and purification in China. With the advanced technique, continuously innovative and powerful science and technique research, our products have been sold to various countries and regions, such as Japan, Korea, Australia, the United States and Southeast Asia.
Why will you choose us? What’s our prosity?
l 12-hours reply
We have warm sales teams,your questions or inquiry will be replied in 12 hours,send you the correct price and photos for confirm.
l Free sample
Free sample will be sent for you check the quality and workmanship within 2 days
l Factory price
Factory direct quality assurance competitive price
l Professional
Owing 8 years producing and designing experience in filtration industry
l Timely delivery
We have two production line for filter media and one line for air filters production, the most advanced equipments and stable workers to control the quanlity and capacity.
Filter media delivery date: polyester media type: 2-3 days,spray booth filter type: 4-5 days,air filter media: 7-8 days,Air filter: 3-5 days,filter mesh: 4-5 days
l OEM made
OEM is warmly welcomed, we can arrange your own color or label,print your OEM package,and make your own shape according to your drawing.
l After-sale service
We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment.For any other supplier order,you just ask them to deliver us for combine container,we’ll do this favor to arrange everything very well.
l Certificate
We are Alibaba Assessed Supplier,our company approved CE,SGS, ISO9001-2008,for other certificate,example: SASO,SONCAP,FDA,MSDS,UL etc.,we can help you apply it and the charge can return you when the order reached our appointed MOQ.
l Payment terms
T/T,D/P,L/C, Paypal, Western Union
Just send enquiry to us now ,you will get more than what you see.
