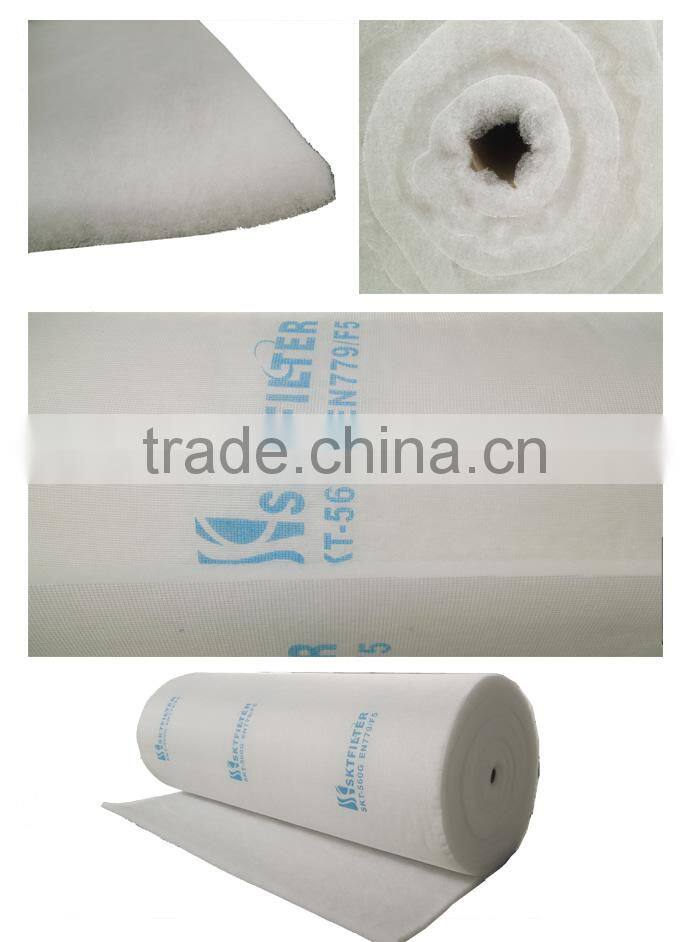

China suppliers ceiling material paint booth for cars accessories
Ceiling filter are mainly used in surface spray-paint industry, especially for the terminal filtration for spray booth, it can create uniform air diffusion and provide perfect laminar air flow throughout paint cabin in auto fitting shop and auto repair paint plant.
It is processed by anti-break high performance fiber with heat fusion method, advanced gradual structure (the fiber density increases gradual toward pure air) assuring its high efficiency and collect more dust in different layers.
could catch 1um or above dust particle, full glue coupled with high density cloth or net, large dust holding capacity, extremely high efficiency and premium water soluble resin
Material: made of extra long, thermo-melt and break-resistant synthetic fiber with full glue.
- Low initial resisitance
- Large dust holding capacity
- Flexible
- Outlet side with net or cloth mesh to reinforce
Application:can capturing 1-10Um particles,especially for the top part of spray booth,prefiltration mesh to reinforce through air filter system,diffluent equally
Type:supply slces or rolls size
Media:synthetic fiber with gradual dnsity,surface of inlet side with adhesive treatment
EN779 class:F5
Averagearrestance:96%(ASHRAE52.1-1992)
Average efficiency:45%-55%(ASHRAE52.1-1992)
EUROVENT4/5 class:EU5
DIN53438 Non-flammability Standard:FI
Final resistance:(suggest)400Pa
Max.Dust holding capacity:450g/m2
Temp.resistance:100℃
Instant temperature:≤ 120℃
Specification:
| Type | Dimensions | Rated air velocity(m/s) | Inital pressure drop(Pa) | Rated air flow(m/h | ||
| Length(m) | Height(m) | Depth(m) | ||||
| Roll | 14/21 | 1.6/2 | 22 | 0.30 | 38 | 1080 |
