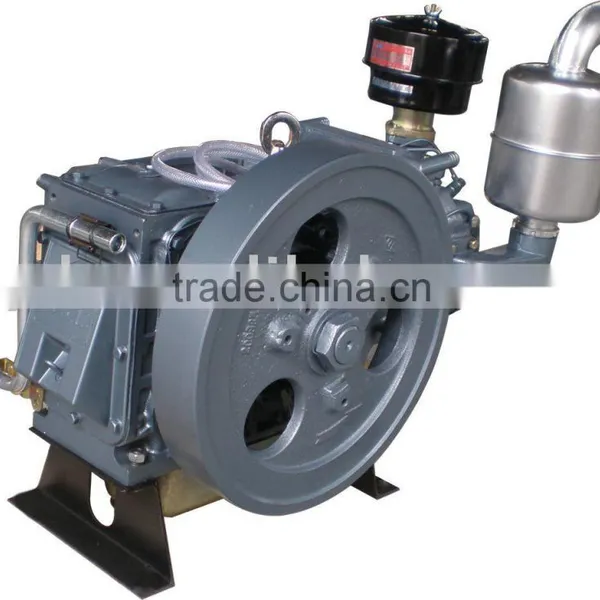

diesel engine S1115

Specifications

1.china -made new design
2.low fuel conspution
3.without hooper and tanker.
4.high quality and low price
5.quick delivery ti

Yancheng Jiangyang Foreign Trade Engine Co.Ltd is in

Yancheng city,Jiangsu  province, China.



Our factory owns the firstrate inspection equipment,high technology and over 20

years’experience in manufacturing diesel engine from 3hp to 33hp and various kinds of

generating set from 0.5kw to 1500kw, We also supply water pump set, sprayers,alternator,

 gasoline engine,tractors and spare parts related.



Warmly welcome you and your company to operate with us for the prosperity future.



Specifications:





Model	S195	S1100	ZH1105	ZH1110	ZH1115	ZH1125	ZH1130
Type	Single-cylinder, Horizontal, 4-Cycle
Combustion System	Swirl		Direct Injection
Bore x Stroke(mm)	95x115	100x115	105x115	110x115	115x115	125x120	130x120
Displacement(L)	0.815	0.903	0.996	1.093	1.194	1.473
Compression Ratio	20:1	20;1	17:1	17:1	17:1	17:1	17:1
Output/Speed(hp/rpm)	14/2000	16/2000	18/2200	20/2200	24/2200	28/2200	30/2200
Cooling System	Evaporative/Radiator
Lubrication System	Combined Pressure and Splash
Starting Method	Hand Cranking/Starting Motor
Gross Weight(kg)	160	165	180	190	200	210	220
Packing Size(LxWxH) (mm)	900*440 *760	900*440 *760	900*440 *760	900*440 *760	900*440 *760	900*440 *760	900*480 *760
Available Type		B: double-ball bearing
		N: radiator
		D: electric start
		L: with light
		WP: with pump









 GOOD QUALITY, GOOD PRICE, GOOD SERVICE!!
