Specifications
1) activated carbon filter felt2) air filter
3) 100% of the adsorption capacity
4) low resistance of airflow

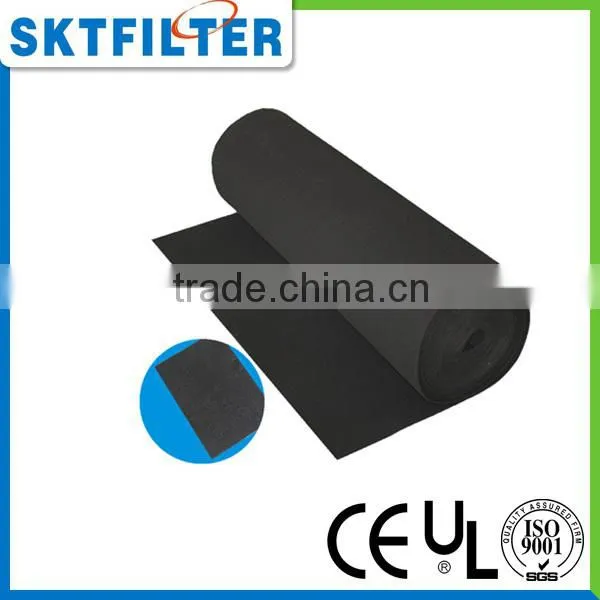

scott carbon filter material roll
Activated carbon filter media
1) activated carbon filter felt
2) air filter
3) 100% of the adsorption capacity
4) low resistance of airflow
Purpose: mainly used in air purifiers, air conditioners, filters, fume purifiers, water purification, gas adsorption, and so on; also be used in high-level of household textiles, tasteless furniture such as closet, shoe cabinet, etc.
Introduction: Fiber activated carbon media is made of high-quality activated carbon powder as absoption material. It is adopted of macromolecule adhesive material enclosed at fiber base with excellent absorption performance, good sharp, high strength, low air flow. Widely used in various domestic and car air-conditioner, air purifier, water purification, and gas absoption ect. Fiber activated carbon media can also be single-used for filtering effect with the super-fine synthetic fiber.
Main indexcarbon content≥40%,adsorptive rate of benzene≥20%,adsorptive rate of the carbontetrachloride≥35%,purifying rate of bug dust≥85%,airflow resistance≤80 pa.
CTC absorption: 40-50%
Thickness: 3-20mm
Width: 1-2m
Length: 20-50m
Make according to customers order.
Activated Carbon Filter |
AC-250 |
AC-300 |
AC-450 |
Normal Thickness |
3mm |
5mm |
10mm |
Class Acc. EN779:2002 |
G3 |
G3 |
G4 |
Carbon Content |
≥50% |
≥50% |
≥50% |
Benzene Adsorption Capacity |
≥22Wt% |
≥22Wt% |
≥24Wt% |
Rated Air Flow Velocity |
1.5m/sec |
1.5m/sec |
1.5m/sec |
Rated Air Flow |
/ |
5400m³/h |
5400m³/h |
Initial Resistance |
/ |
20Pa |
20Pa |
Final Resistance |
/ |
200Pa |
200Pa |
Temp. Resistance |
<180C |
<180C |
<180C |
Temp. Resistance Short Peaks |
<220C |
<220C |
<220C |
Standard Roll Size |
1*20m, 1.2*20m |
1*20m, 1.2*20m |
1*20m 1.2*20m |
Our company is one of the best international enterprises, specialized in producing the relevant products in the field of filtration and purification in China. With the advanced technique, continuously innovative and powerful science and technique research, our products have been sold to various countries and regions, such as Japan, Korea, Australia, the United States and Southeast Asia.
General Terms Of Business
1.Price Terms:
EX-Works, FOB,CNF CIF or DDU is available and up to you.
2.Sample terms:
We can supply 1-2 small samples for free but express cost is covered by your side.
3.Payment terms:
30% deposit upon getting the order, balance against the B/L copy.
