Help CenterAcid Proof Stainless Steel Roller Chain 08A With SA1 Attachments
Related Products
-
Acid Proof Stainless Steel Roller Chain 10A With SA1 AttachmentsUS$ 9 - 10MOQ: 100 Meters -
Acid Proof Stainless Steel Roller Chain 12A With SA1 AttachmentsUS$ 9 - 10MOQ: 100 Meters
-
Acid Proof Stainless Steel Roller Chain 16A With SA1 AttachmentsUS$ 9 - 10MOQ: 100 Meters
-
Industry Stainless Steel Roller Chain 40SS With SK1 AttachmentsUS$ 9 - 10MOQ: 100 Meters
-
Industry Stainless Steel Roller Chain 50SS With SK1 AttachmentsUS$ 9 - 10MOQ: 100 Meters

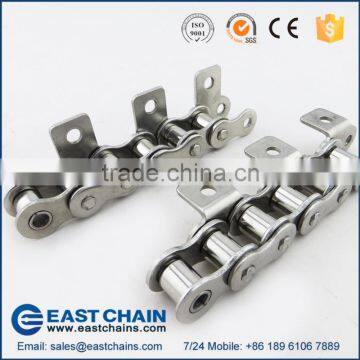

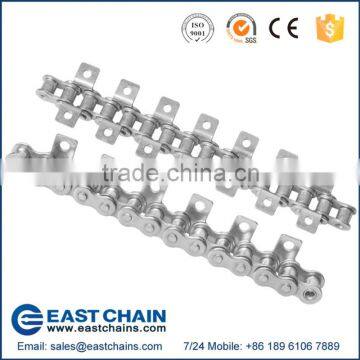

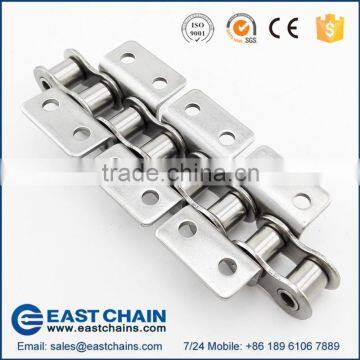

Acid proof stainless steel roller chain 08A with SA1 Attachments
State Of The Art Production
We are better in every detail
Short Pitch Roller Chain Attachment Dimensions
| East chain NO. | Pitch | Attachments | |||||||
| P | d4 | F | h4 | L | C | d2 | L3 | ||
| ANSI | ISO | mm | mm | mm | mm | mm | mm | mm | mm |
| 06B | 9.525 | 3.25 | 19.05 | 6.35 | |||||
| 40 | 08A | 12.7 | 3.4 | 25.4 | 7.9 | 12.7 | 12.7 | 3.96 | 9.5 |
| 08B | 12.7 | 4.5 | 25.4 | 8.9 | 12.7 | 12.7 | 4.45 | 12.7 | |
| 50 | 10A | 15.875 | 5.5 | 31.75 | 10.3 | 15.875 | 15.9 | 5.08 | 11.9 |
| 60 | 12A | 19.05 | 5.5 | 38.1 | 11.9 | 19.05 | 18.3 | 5.94 | 14.3 |
| 80 | 16A | 25.4 | 6.6 | 50.8 | 15.9 | 25.4 | 24.6 | 7.92 | 19.1 |
| 100 | 20A | 31.75 | 9.2 | 63.5 | 19.8 | 31.75 | 31.8 | 9.53 | 23.8 |
| 120 | 24A | 38.1 | 11 | 76.2 | 23 | 38.1 | 36.5 | 11.1 | 28.6 |
| 140 | 28A | 44.45 | 11.4 | 88.9 | 28.6 | 44.45 | 44.5 | 12.7 | 33.3 |
| 160 | 32A | 50.8 | 13.1 | 101.6 | 31.8 | 50.8 | 50.8 | 14.27 | 38.1 |
Note:
1. In the figure parameters are for reference, we have many different kinds of models. And accept custom non-standard design.
2. 06B-C12A connecting links are clip type;16A-32A are cottered type,GK-1 attachment connecting links are cottered type.
3. All links other than connecting links ,with or without attachments, are riveted type.
4. To confirm other parameter are not shown, please contact me ,we will provide more Detailed drawings.
20 Years Roller Chain Manufacturing and Exporting Experience
Applied In More Than 30 Countries
15 working days delivery time
OEM / ODM available
EAST CHAIN provide the world with only the best quality chain.
Material Test Report and Breaking Load Test Report are available for every order.
Perfect Packing and Fast Delivery for every order.
