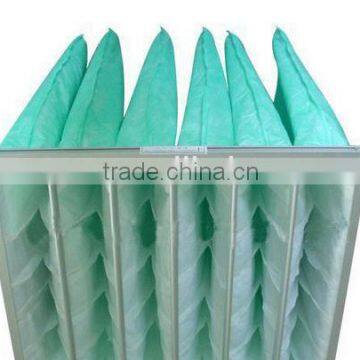

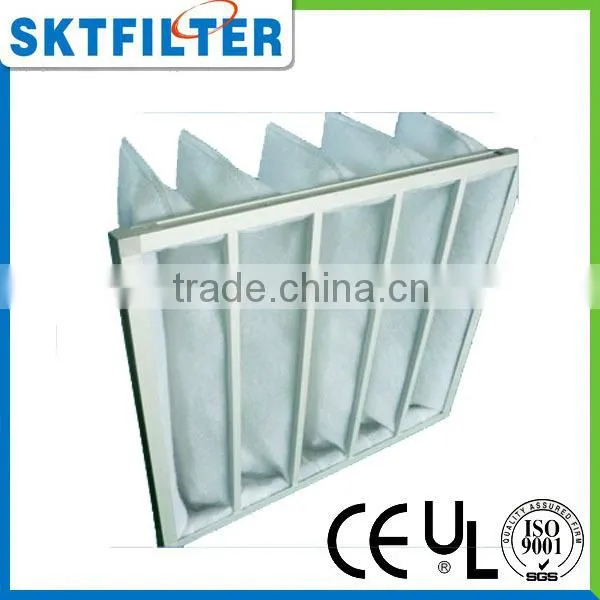

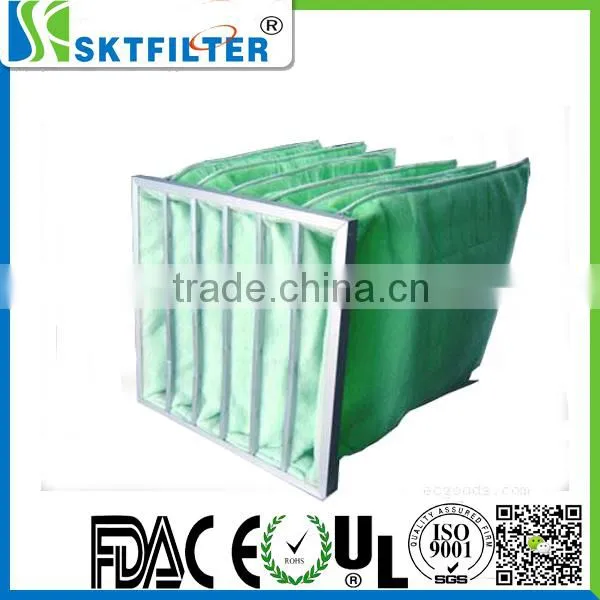

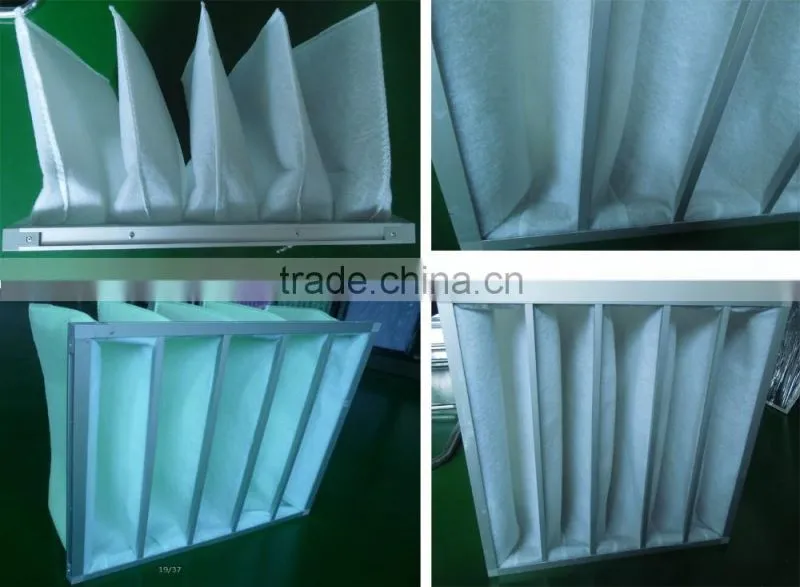

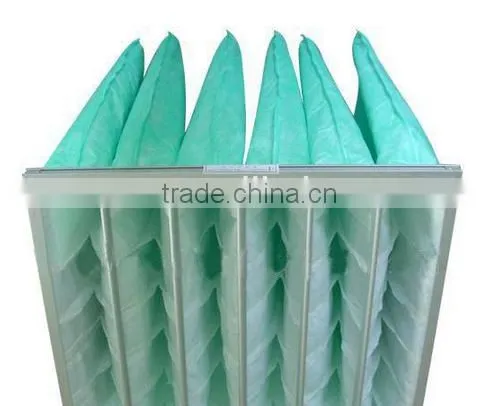

Polyester pocket filter
·Large air flow
·Low resistance.
·Washable
·Large dust holding capacity
·Low operating cost
Type: multi-pocket design
Frame: aluminum,extruded galvanized or plastic frame
Media: Polyester/Synthetic fiber
Efficiency: 35%
Standard:EN779 G1~G4
DIN53438 Non-flammability Standard: F1
Final resistance: (suggested)250Pa-350Pa
Max. air flow: 125% of the rated air flow
Temp. resistance: ≤70℃
Humidity: 90%
Applications:
Used in commercial and industrial ventilation and air conditioning systems,the automobile industry,hotels and office buildings.
Technica Parameters:
W×H×D |
Pockets |
area |
Efficiency |
Airflow(CMH) |
Initial Pressure |
Airflow(CMH) |
Initial Pressure |
(mm) |
(m2) |
(CMH) |
(Pa) |
(CMH) |
(Pa) |
||
591×592×380 |
6 |
3.29 |
G3 |
2540 |
30 |
3800 |
45 |
G4 |
45 |
65 |
|||||
487×591×380 |
5 |
2.73 |
G3 |
2100 |
30 |
3150 |
45 |
G4 |
45 |
65 |
|||||
487×591×380 |
5 |
2.31 |
G3 |
1720 |
30 |
2580 |
45 |
G4 |
45 |
65 |
|||||
286×591×380 |
3 |
1.63 |
G3 |
1240 |
30 |
1860 |
45 |
G4 |
45 |
65 |
Recommended final pressure: 250Pa
Pressure range:±15%
Remark:Different sizes and specifications are available.
We take pleasure to introduce ourselves as the leading manufacturer and supplier of a high quality range of Air Filter Media and air filters. The offered product is widely used in the field of dust collection system. Our product of quality appreciated by our clients.
Our advantages:
•OEM available
•Factory direct sale
•Professional service
•Strict quality control
•We have 1~2 QC for each step
•We are supplier of some large supermarkets and famous brands
•No matter the quality or price,we can either give you the best
•Make sure the prompt leadtime
•We have our own raw material factory,carton factory,packing material factory to control every link,and save you the cost from every link
