Product Details
| Place of Origin: | Guangdong, China | Brand Name: | TECHKING | Model Number: | TK-TSR |
Product Description
Specifications

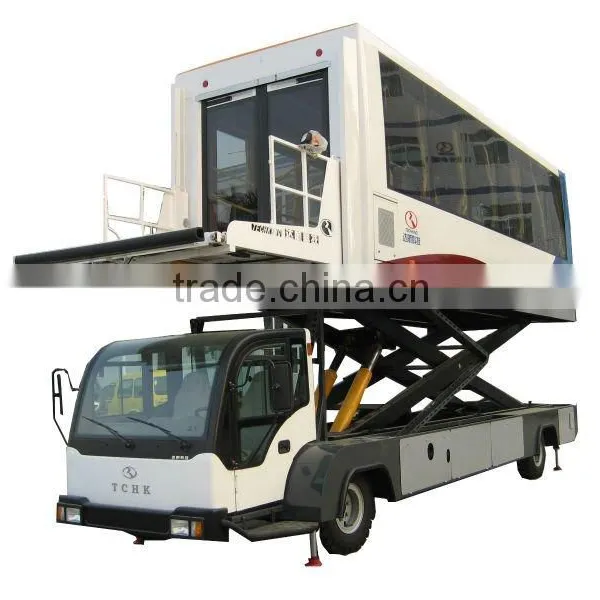

TK-TSR model disabled passenger boarding vehicle's chassis is designed by TECHKING, being low gravity and safety operation.TK-TSR model disabled passenger boarding vehicle adopted humanized design for the specilized van, being fully functional, easy getting on and down and comfortable.
It wide range and strong bearing make it can service for all kind airplane. Lifting platform is designed for both front end and rear end of the vehicle , to make the influent passing.
Model | TK-TSR60 |
Shipping Dimensions |
|
Overall Dimensions(L*W*H) | 9700mm*2500mm*3700mm |
Gross vehicle weight |
|
Standard Features |
|
Max .Speed | 50Km/h |
Front Platform Lifting Range | 2200~5800mm |
Rear Platform Lifting Range | 0~1300mm |
Van Body Lifting Range | 1000mm~3690mm |
Van Body Load Capacity | 1600Kg |
Van Body Dimension (L*W*H) | 7220mm*2500mm*2550mm |
Front Dimension | 2100mm*1900mm |
Front Platform Flexing Extension | 500mm |
Front Platform Load Capacity | 200Kg |
Rear Platform Dimension(L*W) | 1500mm*2150mm |
Rear Platform Load Capacity | 600Kg |
Main Components |
|
Chassis | TECHKING |
Engine | DEUTS BF4M2012 |
Transmission | Allison 1000 |
Steering System | Hydrostatic Front Wheels |
Front/Rear Axle | HF338DH/HF18040DH |
Tire Size | 8.25-16 |
