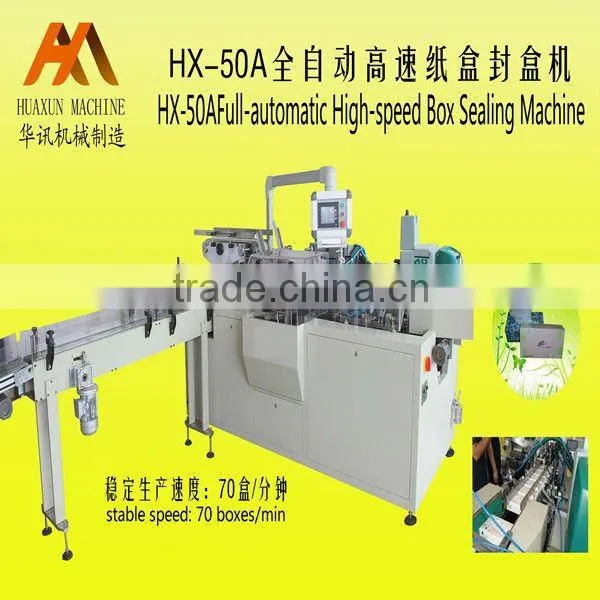

Fully Automatic Facial Tissue Packaging Machine

Name: Fully Automatic Facial Tissue Packaging Machine
Brand: HUAXUN
SKU: 108493367
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Other, Facial Tissue Paper

Packaging Type:

Cartons

Quanzhou Huaxun Machinery Making Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Facial Tissue Paper

Packaging Type Cartons

Packaging Material Paper

Automatic Grade Automatic

Driven Type Electric

Voltage 380V

Power 5.1KW

Place of Origin Fujian, China

Brand Name HUAXUN

Model Number HX-50A fully automatic facial tissue packing machine

Dimension(L*W*H) 3250*1650*1800mm

Weight 1.5 tons

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.it seals box automatically for tissue paper
2.Fully automatic
3.CE certificate
4.facial tissue packaging machine

Fully Automatic Facial Tissue Packaging Machine, facial tissue packaging machine , automatic tissue packing machine , face tissue packing machine

1.Application range:

It is suitable for automatic boxing of facial tissues, napkins, square tissues, pocket tissues, sanitary towels, pads, etc.

2.Main performances and structure features:

Packing forms such as automatic feeding, box opening, boxing, batch No. printing, glue spreading, box sealing, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment.
Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.
The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line, which can greatly reduce labor cost.
The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.
With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.

3.Performance technical parameters

model		HX-50A
Paper quality of carton		300-400g/m³
Maximum packing specification		L240mm×W120mm×H90mm
Packing speed		30-80 boxes/minute
Hot melt machine power		2.32KW
Motor power		2.74KW
Total power		5.1KW
Power supply type		(3phase 4wire) 380V 50Hz
Machine noise		≤80dB
Air supply		0.5-0.8 Mpa
Air consumption		120-160L/min
Outline dimensions	Main machine	L3250×W1650×H1800mm
	Conveying mechanism	L4000×W660×H1200mm
Machine weight		1500Kg
