Help CenterSpacer Fabric PVC Extrusion Coating Laminating Machine
Related Products
-
HDLF65X2-1000 Co-extrusion Lamination/coaterUS$ 150,000 - 200,000MOQ: 1 Set -
HDLF65X2-1000 Co-extrusion Silicon CoaterUS$ 150,000 - 200,000MOQ: 1 Set
-
HDLF65X2-1000 Co-extrusion Laminating&coatingUS$ 150,000 - 200,000MOQ: 1 Set
-
HDLF65X2-1000Co-extrusion Laminator MachineUS$ 150,000 - 200,000MOQ: 1 Set
-
HDLF65X2-1000Co-extrusion Lamination and Coater MachineUS$ 150,000 - 200,000MOQ: 1 Set
Specifications
1.PLC controller;2.CE.ISO9001;
3.Engineers available
4.High capacity;

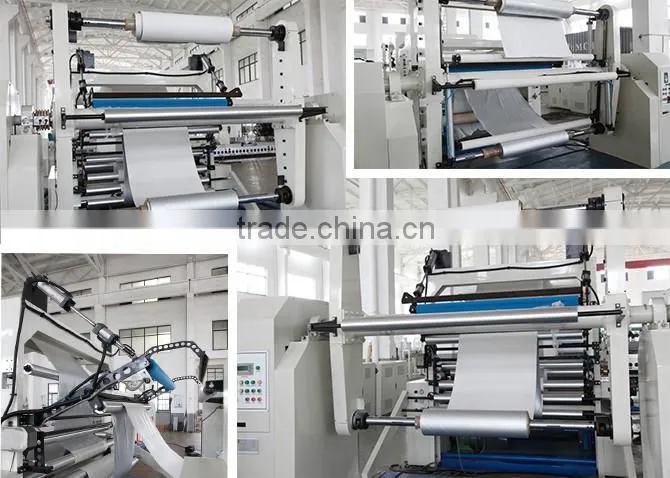

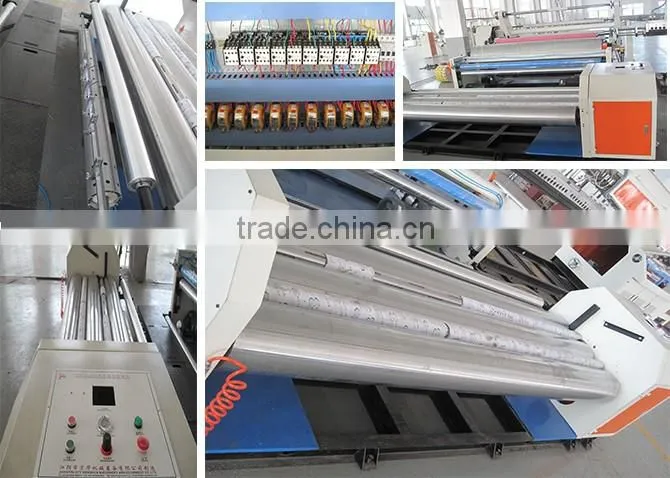

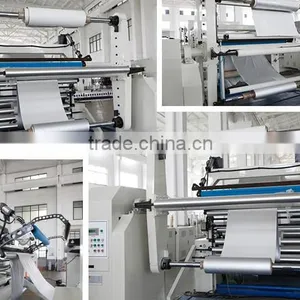

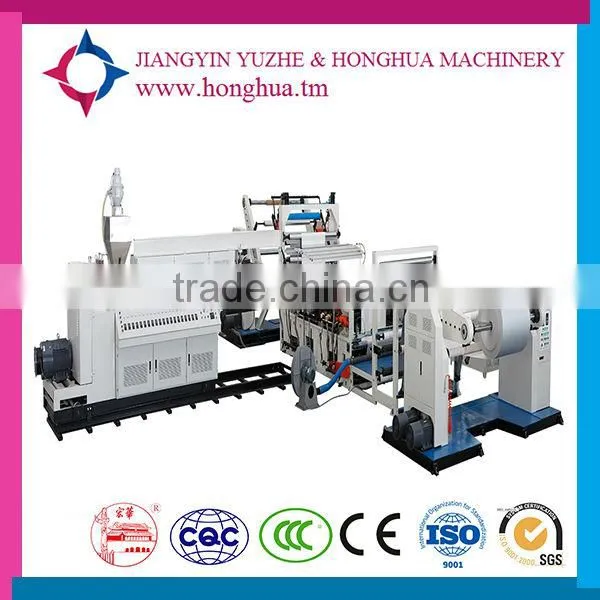

spacer fabric PVC extrusion coating laminating machine
Main feature and performance
Model JDLF65x2-1000 adopts more advanced, more humanized PLC programmable controller. Mostly used for aluminum paper-plastic packaging material. such as alcohol packing..instant noodle box cover, toothpaste shell and so on.
Main technical parameter
1.Screw and barrel:φ65mm with special mixed segment and high capacity.
2.Mold:T-flexible mold supporting auto filter change
3.Raw material laminating film: Laminating PE/PP, etc.
4.Laminating effective width:600-1000mm
5.Laminating film thickness:0.012-0.035mm,single.
6.Mechanical design speed:0-150m/min
7.Unwinding:High-speed non-stop automatic cutting
8.Winding:High-speed non-stop automatic cutting.
PART1:Unwnding system
Unwinding substrate requirements |
80~350gsm Roll paper 0.006~0.007mm Roll of aluminum foil |
Mechanical design speed |
0~150m/min |
Unwinding |
High-speed non-stop automatic cutting |

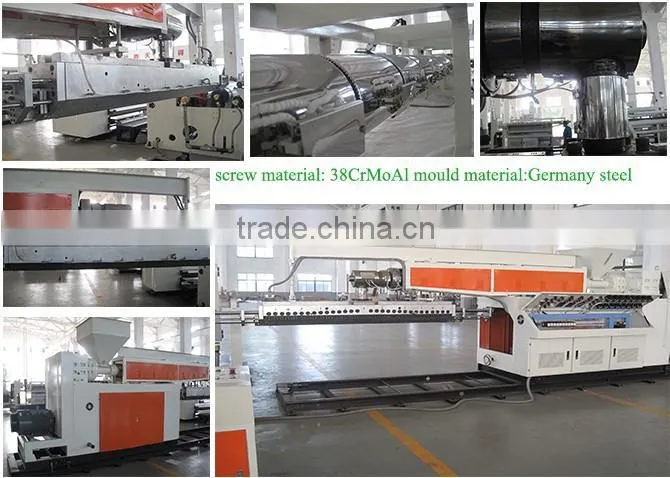

PART2: Extruding system
Screw and barrel |
Φ65mm with special mixed segment and high capacity |
Mold |
T-flexible mould supporting auto filter change |
Raw material laminating film |
Laminating film machine PE,PP, resin, etc. |
Effective film width |
600~1000mm |
Laminating film thickness |
0.012~0.03mm Single |
Laminating evenness |
±5% |

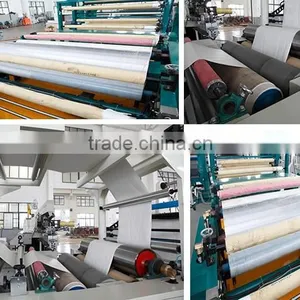

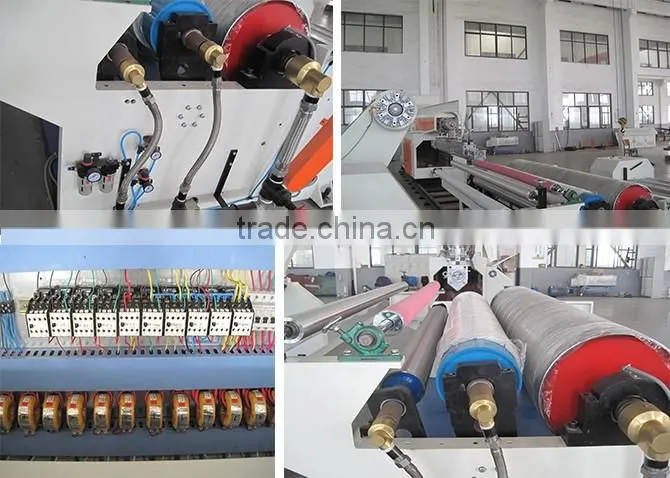

Part3: molding system

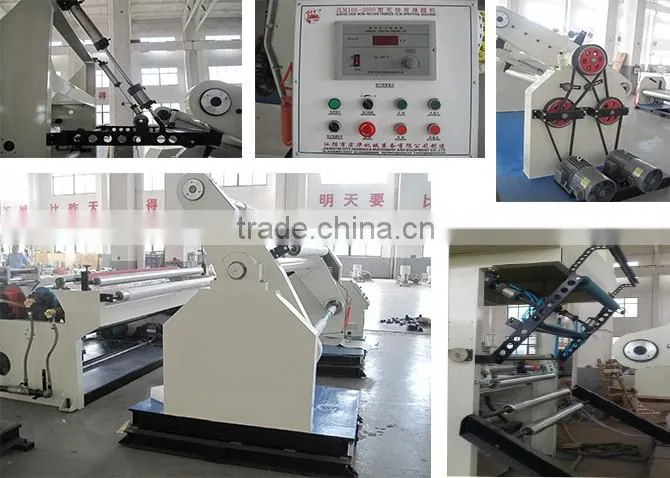

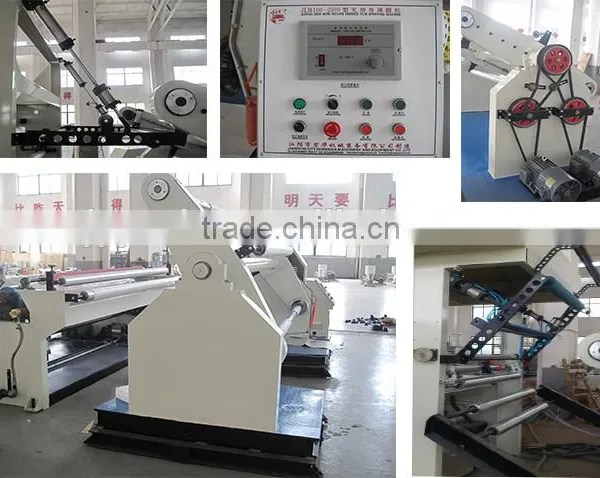

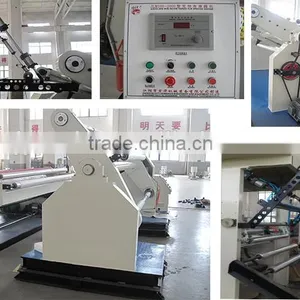

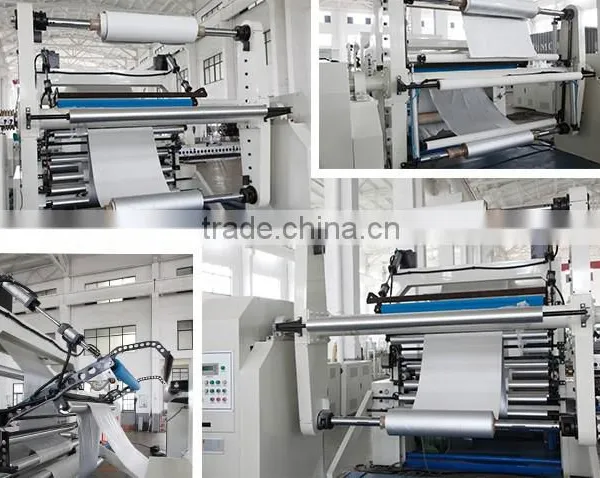

PART4:Winding system
Part 5: sample pictures
Winding type |
central type |
Max diameter |
1200mm |
tension |
Controlled by inverter motor |
Roller change |
Manual |
Winding |
High-speed non-stop automatic cutting |

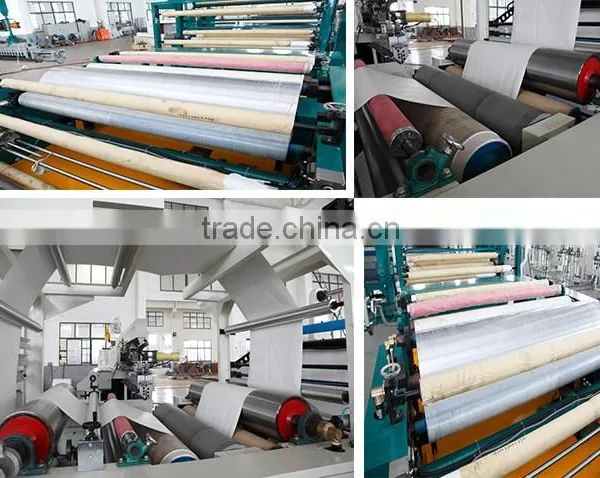

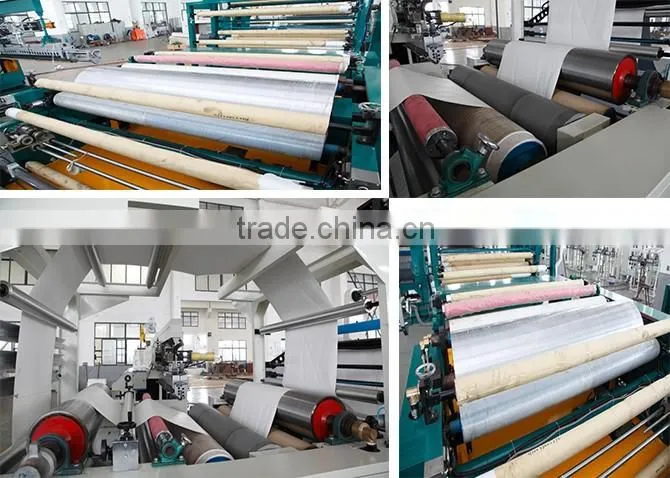

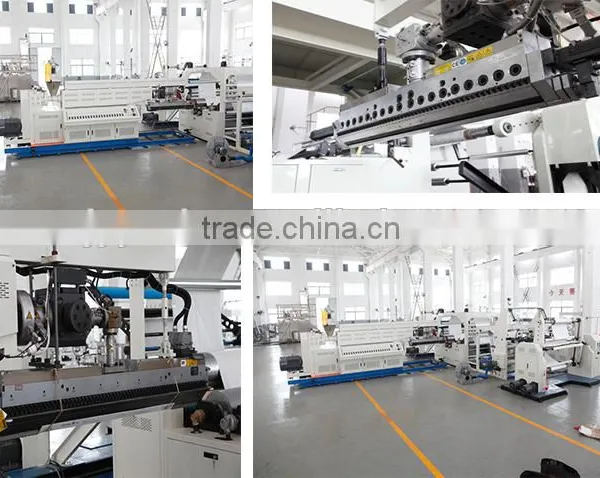

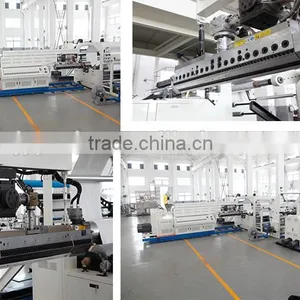

PART 6:factory pictures
PART 7:with customers
