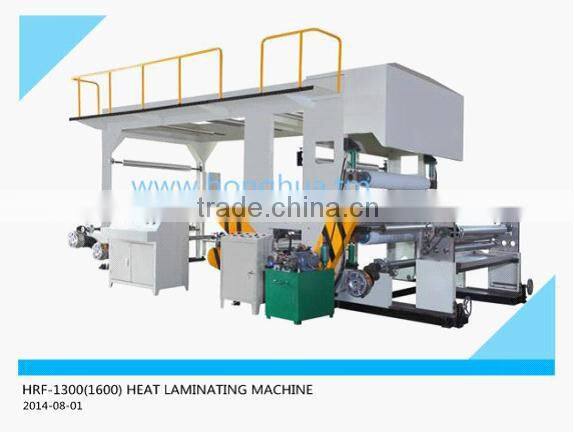

HRF-1300(1600)heat laminating machine
Main feature and performance
The equipment is compact in structure, scientific and rational process, easy to operate, the market share of China's first, is the best model for the production of insulation materials cloth.
Main technical parameter
1, suitable for the production of products: aluminum foil by coating and then heat the glass fiber cloth synthetic;
2, mechanical design speed: 0 ~ 15m/min;
3, the conventional product specifications: 1300mm, 1600mm;
4.Unwinding tension adopts magnetic powder brake control;
5, Unwinding and rewinding use air shaft..
6, the molding pressure roller clutch with hydraulic control, heated by electric heating;
7, the main drive frequency control;
8. Rewinding use double shaft vector converter control, taper tension, center type winding
PART1: Unwnding system
Max diameter of First unwinding |
φ1000mm |
Max diameter of Second unwinding |
φ600mm |
tension |
Controlled by Magnetic powder brake |
Roller change |
Manual |
Pneumatic roller for unwinding |
3” (diameter: φ73mm) |
Rectifying device(EPC)length |
±100mm |
PART2: Coating glue system
Dip-coating width |
400-1000mm |
Dip-coating method |
directly Anilox roll laminating |
Machines’ design speed |
0-150m/min |
Line speed in the real production |
0-120m/min |
PART3: Combine system
PART4: Winding system
Winding type |
central type |
Max diameter |
1300-1600mm |
tension |
Controlled by inverter motor |
Pneumatic roller for winding |
3” (diameter: φ73mm) |
Motor |
Inverter motor control, heated by electric heating |
Winding |
Double shafts central rewinding system controlled by vector Motor, tape tension |

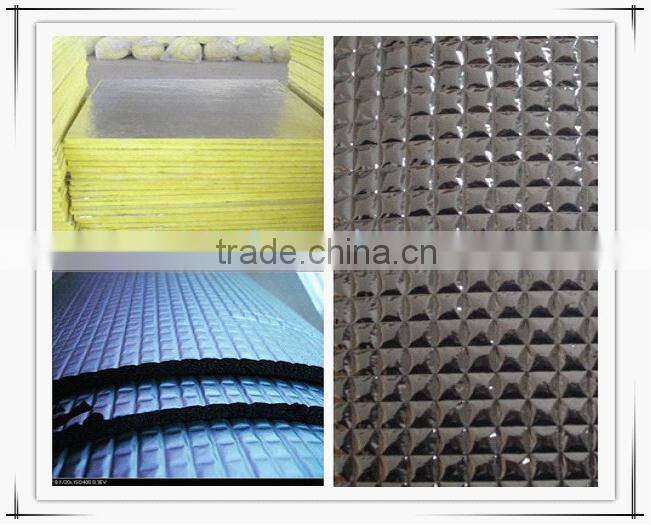

PART5: Sample pictures

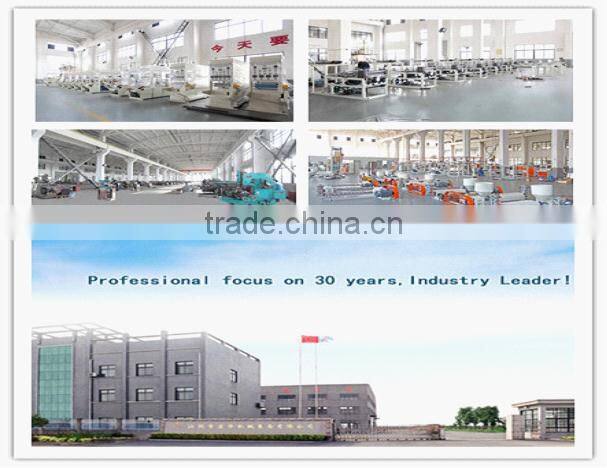

PART6: Factory pictures
PART7: With customers
PART8: Certificates
Jiangyin City Yuzhe International Trading CO.,LTD
Jiangyin City Yuzhe International Trading CO., LTD., has 30 years of industrial experience. We are the leader of in the production of soft plastic package such as coating machine ,blowing and printing machine and act. we have independent import and export corporation and the factory entitled research , design and production .
Best service! Best quality! Best price!
