HF-1000dry-type
- 30 Set / Sets per Month
- Shanghai seaport
- T/T L/C D/P D/A Credit Card PayPal
- TMEP-LED18230T plate making equipment prepress proofing machine
- TMEP-LED18230T plate making equipment prepress proofing machine
- Economical, Efficient and Energy-Saving Manual Screen Printing PU Scraper Cleaning Machine
- Tamprinter glitter powder machine The operating principle
- flame treatment machine TM-F4 car bumpers flame processor equipment
- Air-Gas burner Bottle flame treatment machine with automatic ignition
Product Details
Condition: | New | Application: | Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles | Automatic Grade: | Automatic |
Driven Type: | Electric | Voltage: | 3phase 380V | Power: | 130kw |
Packaging Type: | Other, bags,cartons,film,foil,cans | Packaging Material: | Plastic, Paper | Place of Origin: | Jiangsu, China |
Brand Name: | Honghua brand | Model Number: | HF-1000 | Dimension(L*W*H): | 1300mmx2100mmx3500mm |
Weight: | 12000kg | Certification: | CE;ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications

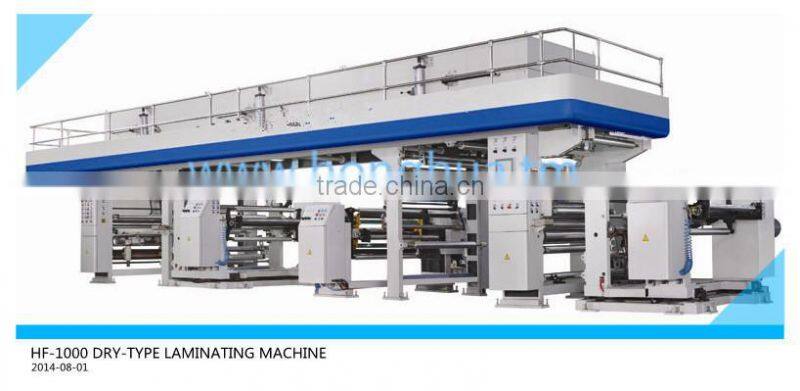

This model machine is used for PET,Nylon,CPP,CPE,Aluminum foil,paper and such roll base materials' dry-type laminating process.HF-1000 dry-typelaminator and coater
Main feature and performance
This model machine dry-typelaminator and coater is used for PET, Nylon, CPP, CPE, Aluminum foil, paper and such roll base materials’ dry-type laminating process. The whole machine adopts Mitsubishi PLC control and man-machine interface operation.
Main technical parameter
1. Dip-coating width: 400-1000mm;
2. Dip-coating method: directly Anilox roll laminating;
3. Electric oven open method: Oven lid with air impulsion, make material-loading convenient.
4. Automatically counting meters when winding.
5. Pneumatic roller for unwinding and rewinding: 3” (diameter: φ73mm);
6. .Power: 130kw
7. Overall size (L×W×H): 1300×2100×3500(mm);
8. Total weight: 12000kg.

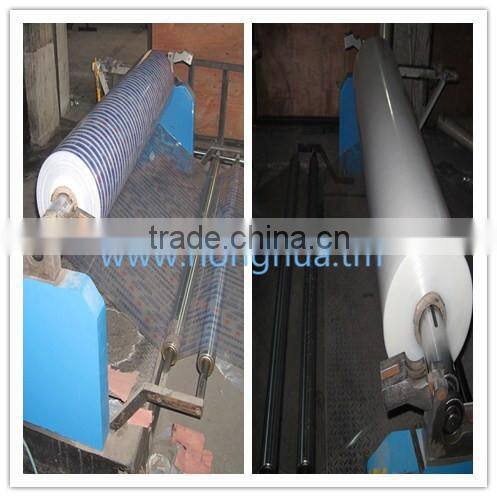

PART1:Unwnding system
Max diameter of First unwinding | φ1000mm |
Max diameter of Second unwinding | φ600mm |
tension | Controlled by inverter motor |
Roller change | Manual |
Pneumatic roller for unwinding | 3” (diameter: φ73mm) |
Rectifying device(EPC)length | ±100mm |

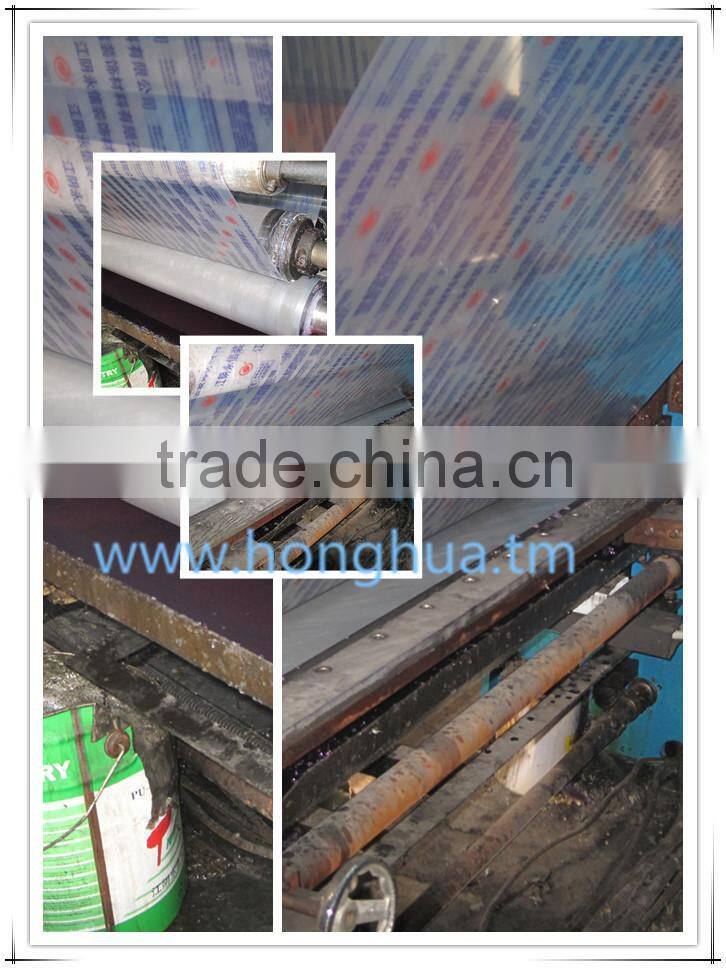

PART2: Coating glue system
Dip-coating width | 400-1000mm |
Dip-coating method | directly Anilox roll laminating |
Machines’ design speed | 0-150m/min |
Line speed in the real production | 0-120m/mi |

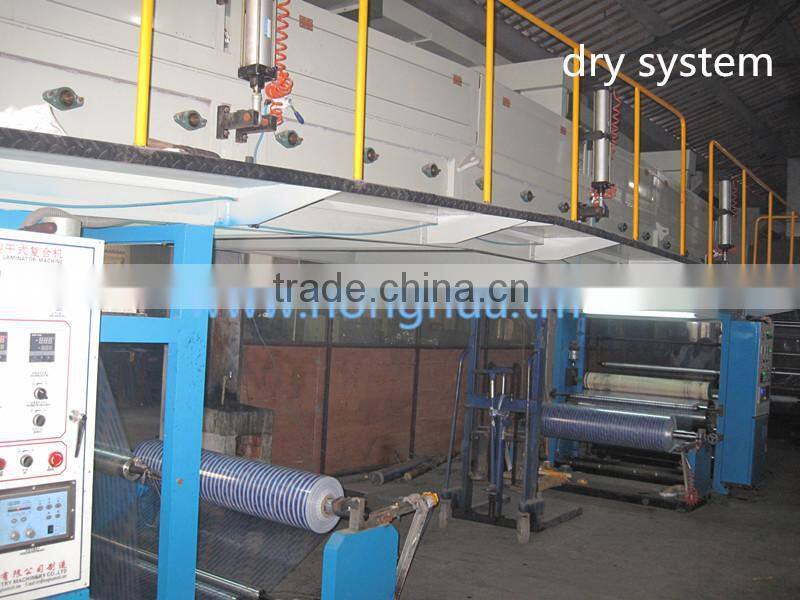

Part3: dry system
1.Electric oven, secondly use hot air, save energy, use independent piecewise constant temperature drying system, together with electric temperature Measuring device, control the temperature automatically, air in and out device can be adjusted ,high strength and totally be dried.
2.Electric oven open method: Oven lid with air impulsion, make material-loading convenient.
3. In the oven guiding roller with active control, the transmission of rollers adopts synchronous belt to link each other, use vector inverter control system, same step with main motor.

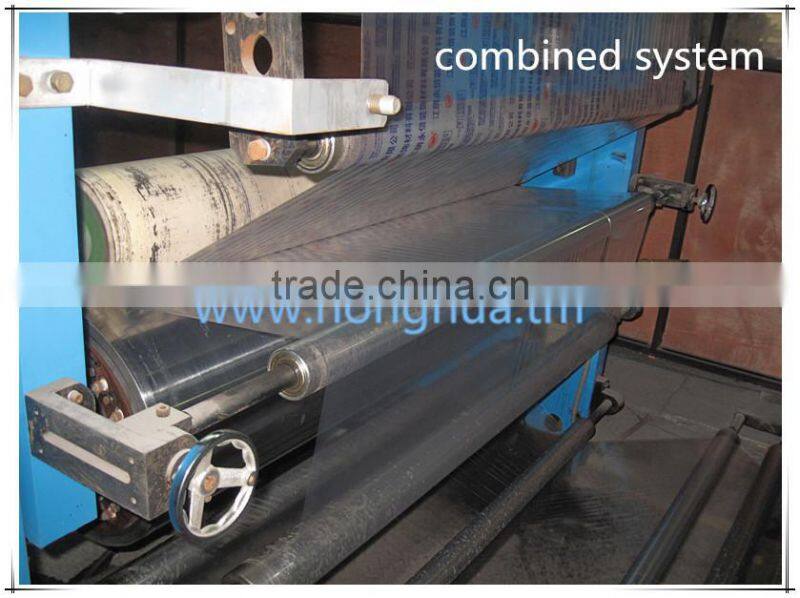

PART4:combine system
Winding type | central type |
Max diameter | 1200mm |
tension | Controlled by inverter motor |
Roller change | Manual |
rectifying device(EPC)length | ±100mm |
Pneumatic roller for rewinding | Pneumatic roller for rewinding |

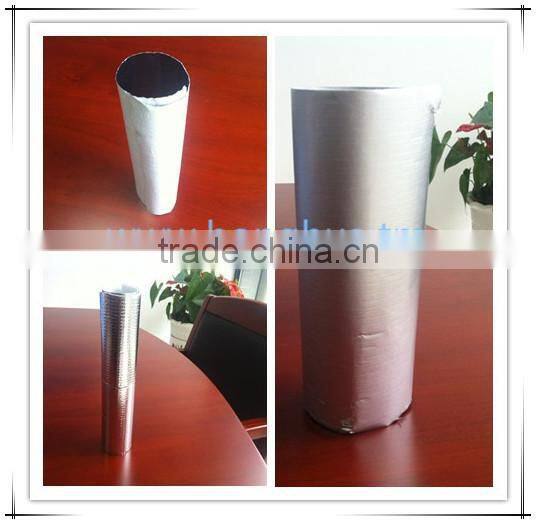

Part 5: sample pictures
PART 6:factory pictures
PART 7:with customers
PART8:certificates
