1.2kva/720w home inverter ups inverter for home use
Main Feature
•Simulated sine wave inverter
•Sensitivity selector (UPS mode & inverter mode)
•10A / 20A selectale AC charging current
•Off mode charging function
•Auto restart while AC is recovering
•Cold start function
•Multiple install options: horizontal, vertical, and wall mount
•Surge, Over load, Short circuit, Over temperture, Over charging Protection.
•Generators & Computer-related devices compatible
•Built in 30A/50A Solar Charger (option)
•Power saving mode (while solar is charging, AC charger stopps
automatically to save AC power)
Technical Specification
Solar Inverter | ||
Model |
SV1200 |
SV2400 |
Capacity |
1200va 720w |
2400va 1440w |
INPUT |
|
|
Voltage |
220/230/240VAC |
|
Voltage Range |
162-290VAC or 90-290VAC Selectable |
|
Frequency Range |
50Hz |
|
OUTPUT |
|
|
Voltage Regulation (Bat Mode) |
±10% |
|
Frequency Range (Bat Mode) |
50Hz ± 1Hz |
|
Transfer time |
Typical 20ms |
|
Waveform (Bat Mode) |
Simulated Sine Wave |
|
Peak Efficiency(AC Mode) |
>95% @ FULL R load |
|
Battery |
|
|
Battery voltage |
12VDC |
24VDC |
AC Charger |
|
|
Floating Charge Voltage |
13.7VDC |
27.4VDC |
Max Charging Current |
10A/20A Selectable |
|
Full protection |
Overload, discharge, overcharge, over temperature and short circuit protection |
|
Indications |
Color LED |
|
Display |
Indicating line model, battery mode, input voltage, output voltage ,AC charging mode, solar charging mode, load level, battery level, and fault etc. |
|
Physical |
|
|
Dimension, D*W*H(mm) |
288*272*90 |
|
Net Weight (kg) |
2.6 |
2.8 |
Environment |
|
|
Humidity |
0-90% Relative Humidity (Non-condensing) |
|
Operating Temperature |
0 ℃ to 50 ℃ |
|

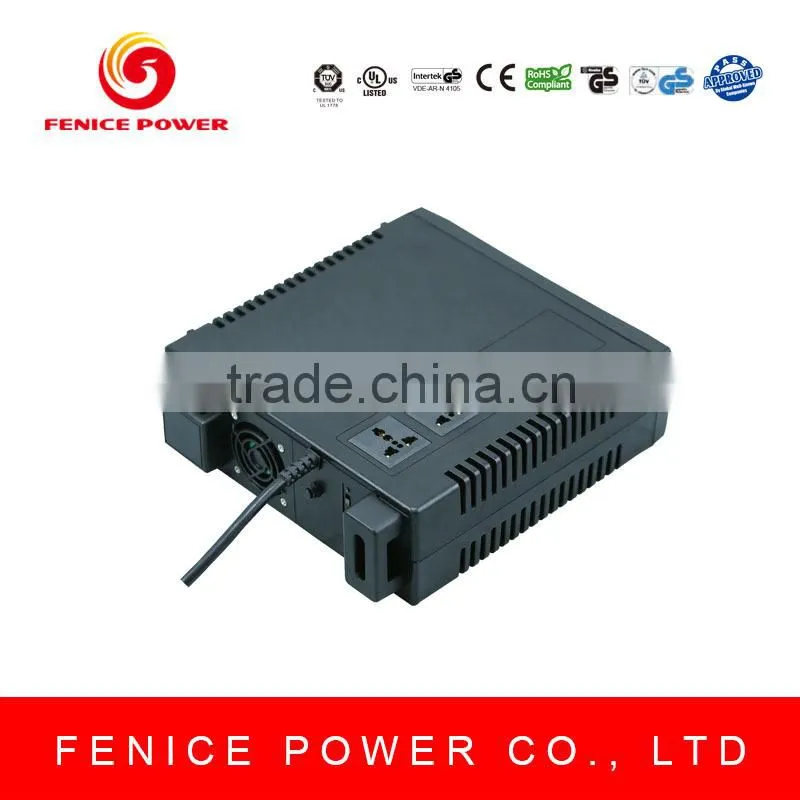

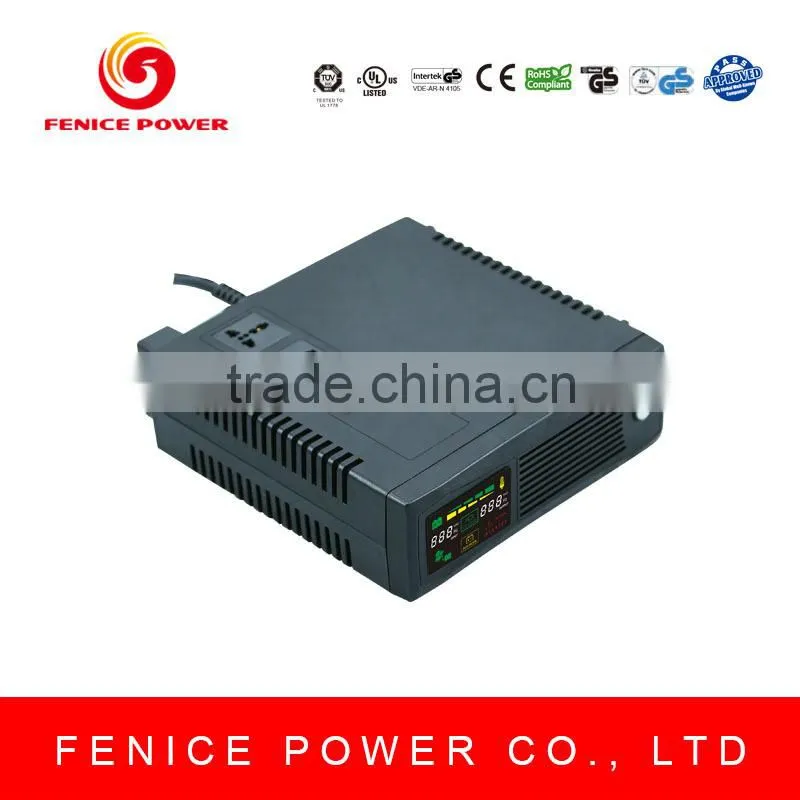

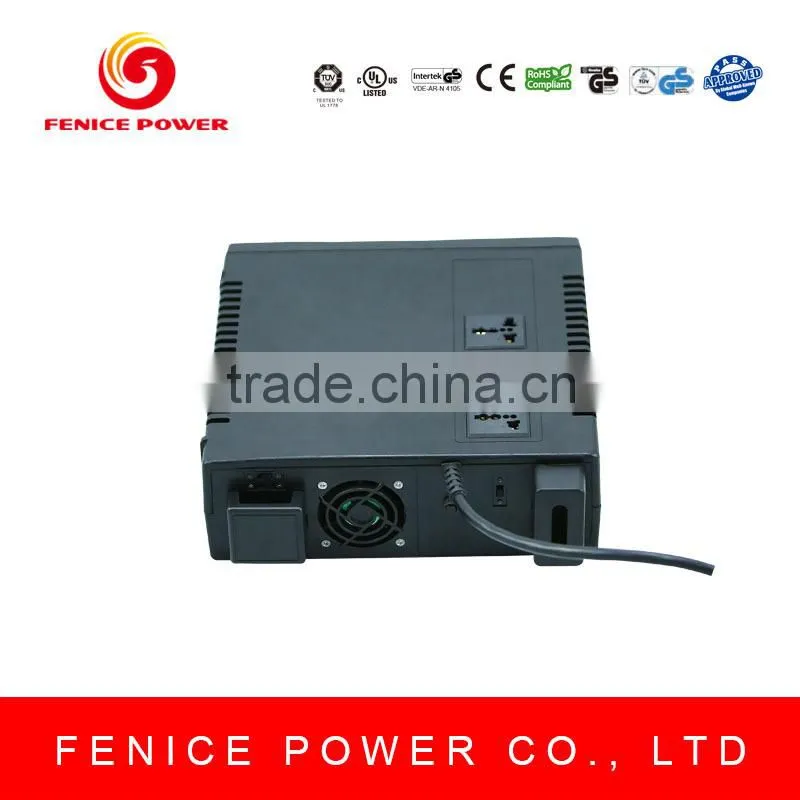

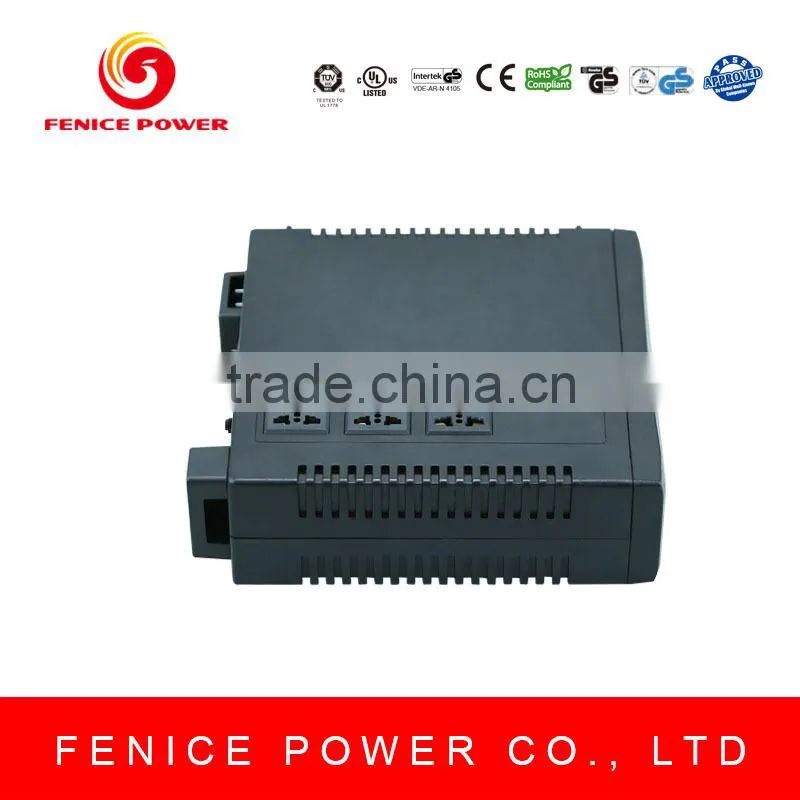

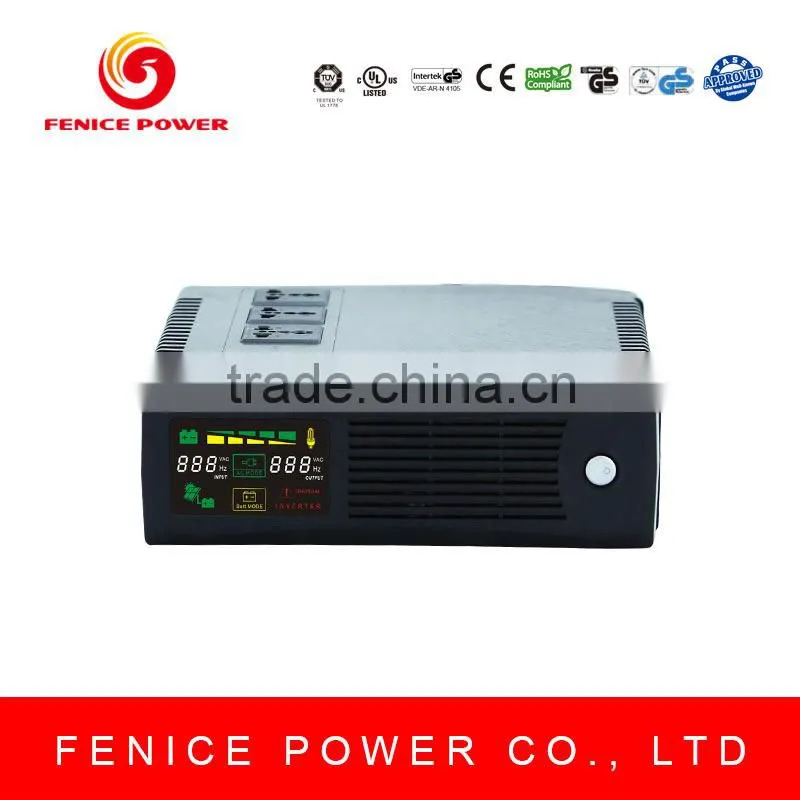

Photo Presentation
Home inverter is just like a UPS without battery, so when you have battery at home but don't want to buy an UPS , choosing an inverter is your best choice .
(1)Warranty :
A.Our product warranty is valid for 12 months after the date of receiving.
B. We undertake to repair any malfunctioned units due to defective components of inadequate workmanship
(2)Delivery time:
A.sample orders will be delivered in 7 working days since full payment received.
B.General orders(under 2000pcs) will be delivered in 25 working days after downpayment received or L/C received .
c. Bulk orders (over 2000pcs )will be delivered in 30 working days after downpayment received or L/C received .
(3)shippment :
By vessel or by freight , For sample order go by EMS, DHL, FedEx, TNT, UPS or other express.
(4)Payment:
T/T, L/C
