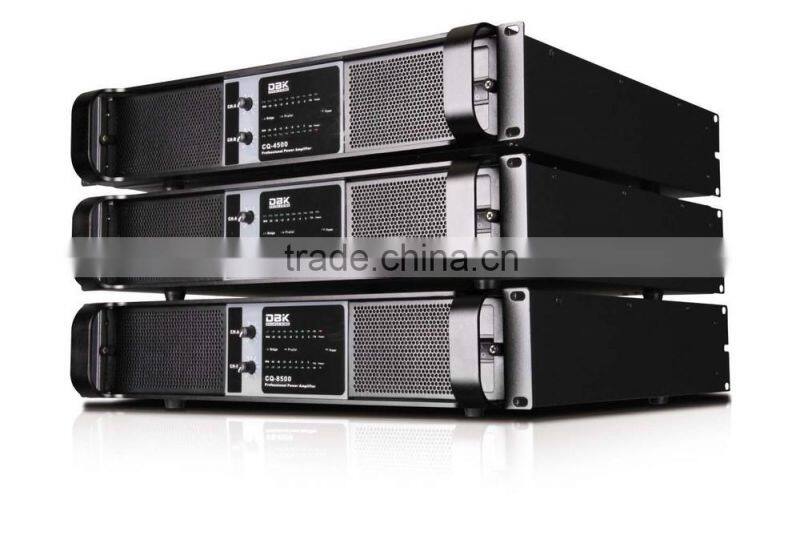

2 Channels 2 U 850 Watts Amplifier Transformers (CQ8500)

US$ 20 - 2,700 MOQ: 2 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

dbk

Model Number:

CQ8500

Guangzhou Xinwang Sound Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name dbk

Model Number CQ8500

2 channels 2 U 850 watts amplifier transformers (CQ8500)

2 Channel Professional powered amplifier transformers description

CQ series professional powered amplifiers are our one of the best selling amplifiers which belongs to high power transfomer amplifier.

It can supply stable electric current to make professional power amplifier work well and protect amplifier and speaker.

Professional powered amplifier transformers features

*Unique and attractive front pannel

*High quality ring transformer

*Special and reliable circuit

*Soft start limiter

*Stereo ,Parallel , Bridge mode

*Output XLR,Binding post ,Speakon

Professional powered amplifier transformers specifications

Specifications	CQ8500
Rated Power(8 ohms)	850W*2
Rated Power(4 homs)	1350W*2
Rated Power(bridge 8 ohms)	2600W
Frequency Response	15Hz--25KHz +0/-3db.at 1W ant 8 ohms
THD(at rated power)	<0.1% 20Hz-20KHz
Slew Rate	>40V /ms
Damping Factor(8 ohms)	>200
Sensitivity(@Max Gain)	1.0vrms, for rated power
Output Topology	2 steps class TD
Input impenance	20K ohms balanced/10K ohms unbalanced
Noise(a weighted)	105dB
Output connectors	NEUTRIK SPEAKON & BINDING POST
Power comsumption	1900W
Cooling	4 direct currents fan
Gain Controls	2 front panel 21 step potentionmeters
Indicators	LED
Height	2U
Protection	Temperature,DC,short,Turn-off,VPL,CPL
Dimessions(WDH)	570565147 mm
Unit Weight(kg)	22kg
Shipping Weight(kg)	24kg
