Specifications

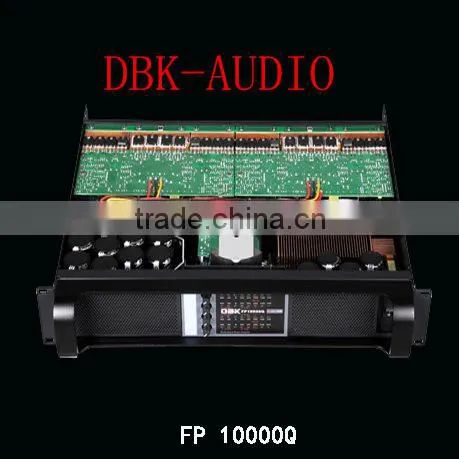

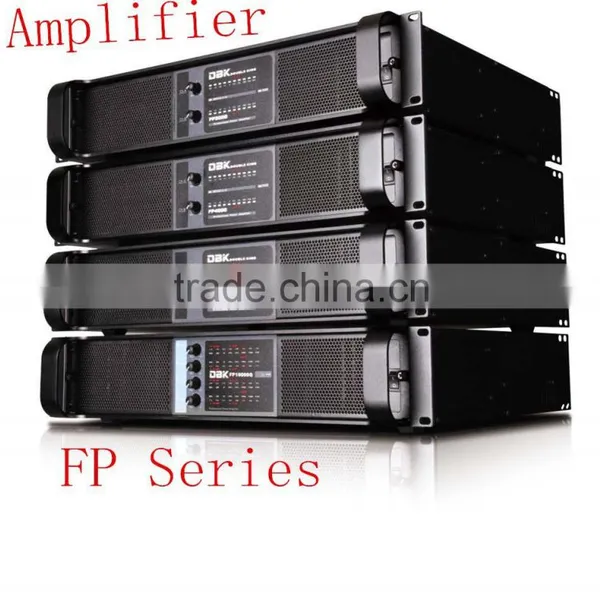

pro amplifier FP-10000Qunique and attractive front panel
high quality ring transformer
4 channel pro amplifier
DBK factory introduce:
1.location.
our company is located in one of the largest exported city
---------GuangZhou,China.
ducts;
our factory is specializes in researching,manufacturing,saling pro speaker ,amplifier ,line array speaker and so on.
3. advantage and service:
.small order is accept
.prompt delivery
.the same price we have better quality,the same quality we have best price
. pro engineer team and foreign trade team are always ready to service our customers
FP-10000Q switching power amplifier have higher efficiency than traditional transformer amplifier and the weight of them is half of transformer amplifier.
SPECIFICATIONS OF THE FP-10000Q:
| rated power (8 ohm) | 1350W*4 |
| rated power (4 ohm) | 2160W*4 |
| fre response | 15HZ-25KHZ +0/-3db.at 1W ant 8 ohms |
| THD | <0.1% 20HZ-20kHZ |
| slew rate | >40V/ms |
| ouput TOpology | 2 steps CLASS H |
| input impedance | 20K ohms balanced/10K ohms unblanced |
| noise | 105dB |
| input connectors | 3 XLR |
| output connectorss | NEUTRIK SPEAKON&BINDING POST |
| power consumption | 5800W |
| sensitivity(@MAX gain) | 1.0 vrms,for rated power |
| cooling | 4 direct currents fan |
| gain controls | 2 front panel 21 step potentiometers |
| dimensions | 560*570*140 (mm) |
| shipping weight | 15kg |
THE FEATURES:
. compact design,2U high
. multiple positions gain switch
. intercooler cooling system with front-to-rear airflow and easily accessible dust filters
. improved low-end power band width
.bridged mono outputs in one speak on connector
. extruded front panel for increased stability

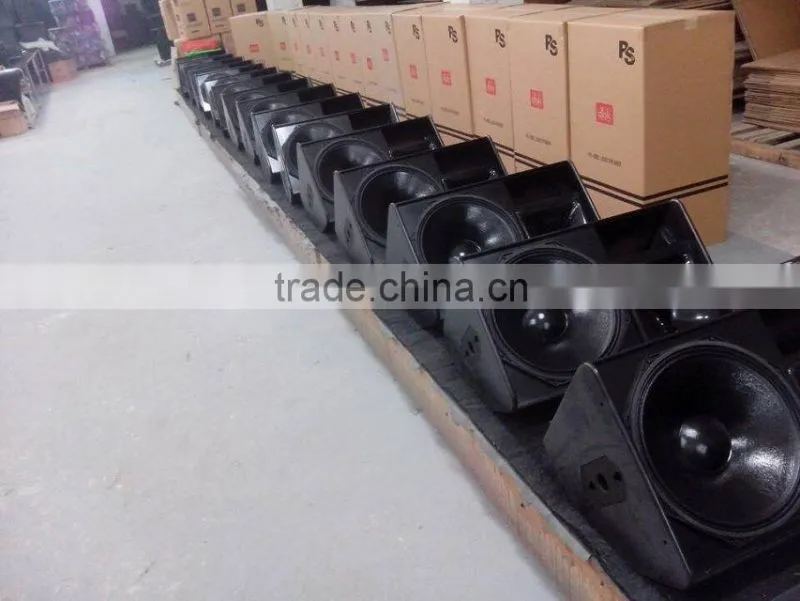

the pictures of company:
