Specifications
MIMA electric pallet lift truck TE series;with 1-15T pallet truck for different industry;
Custis Controller;

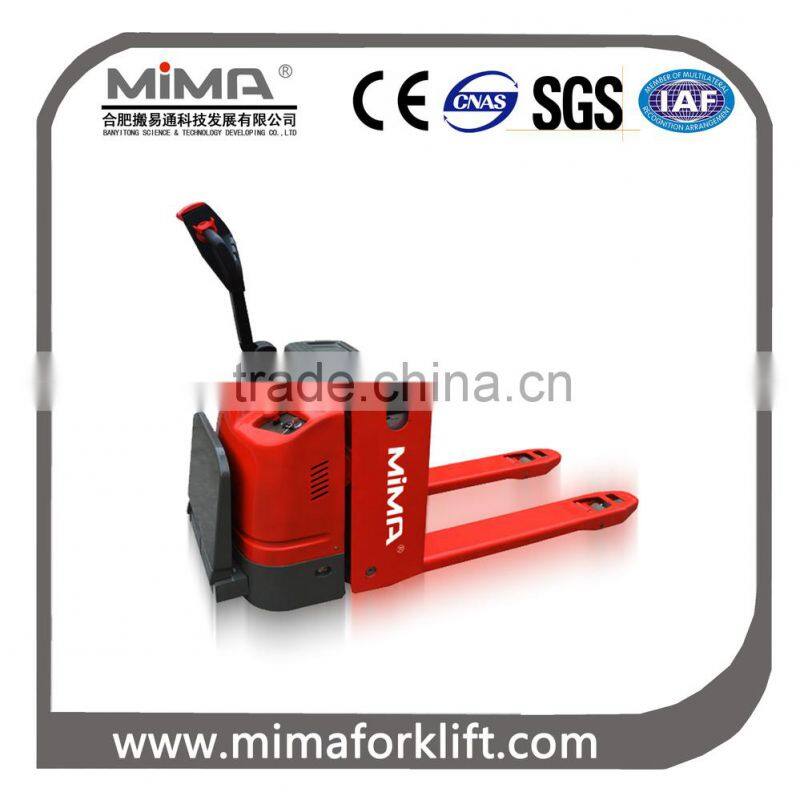

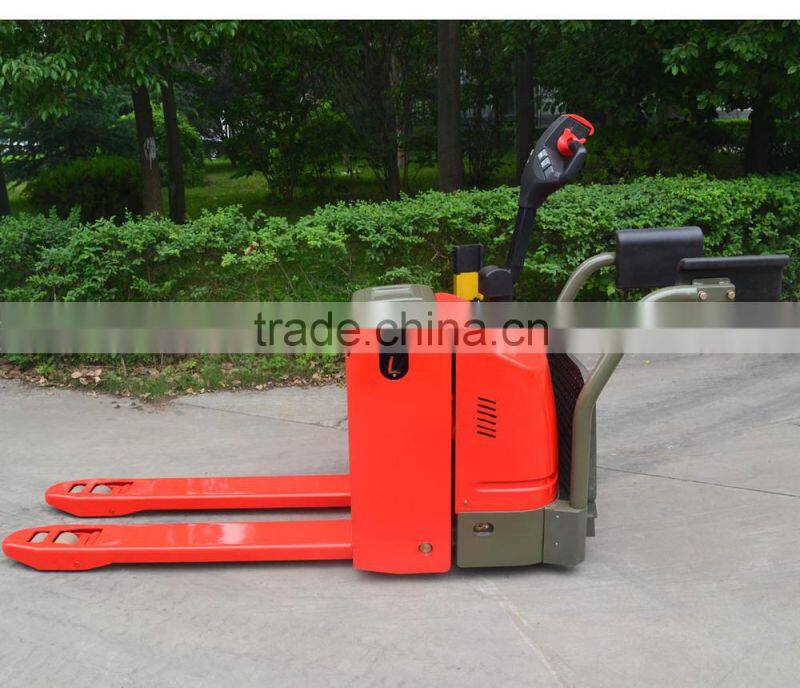

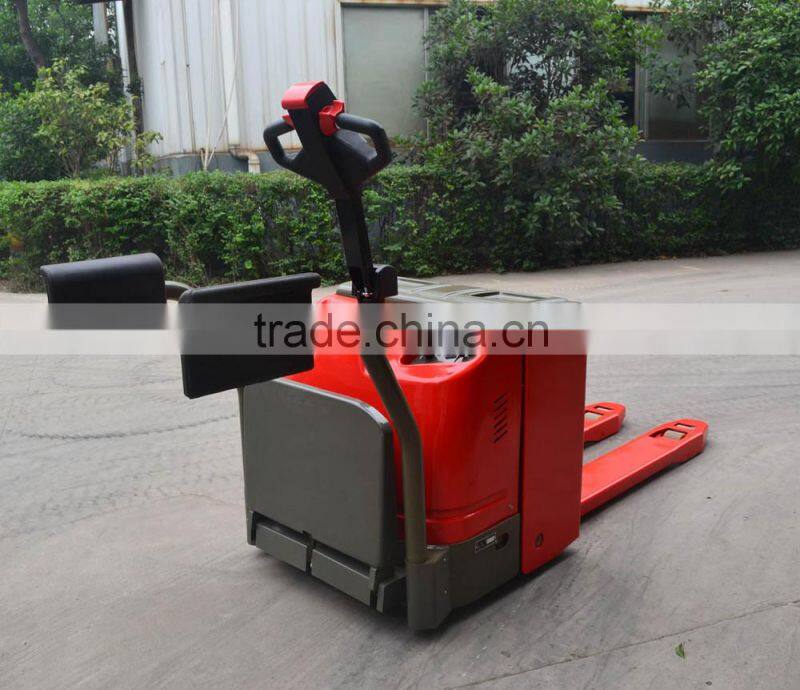

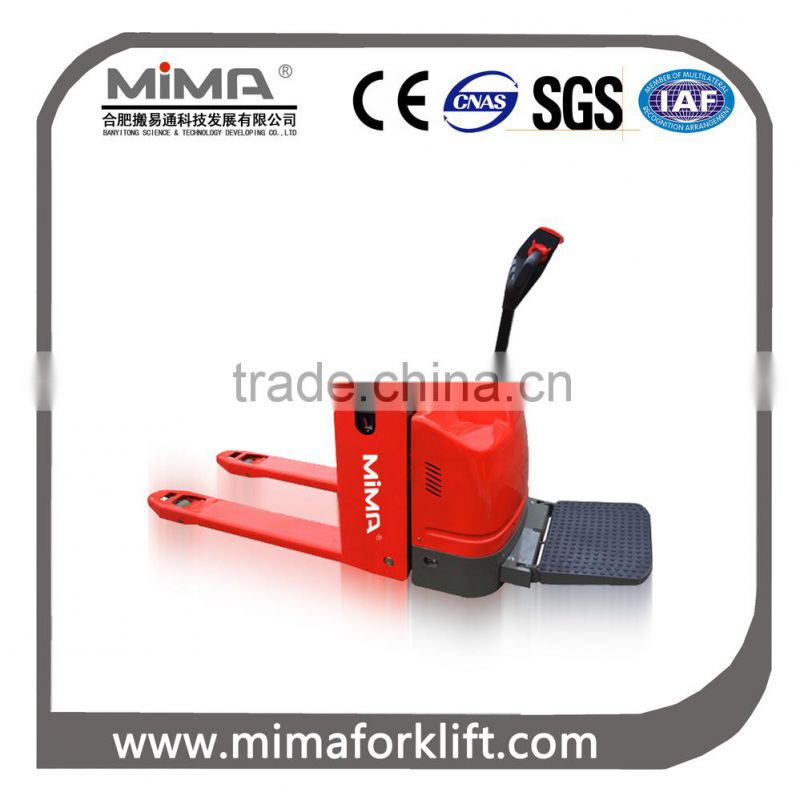

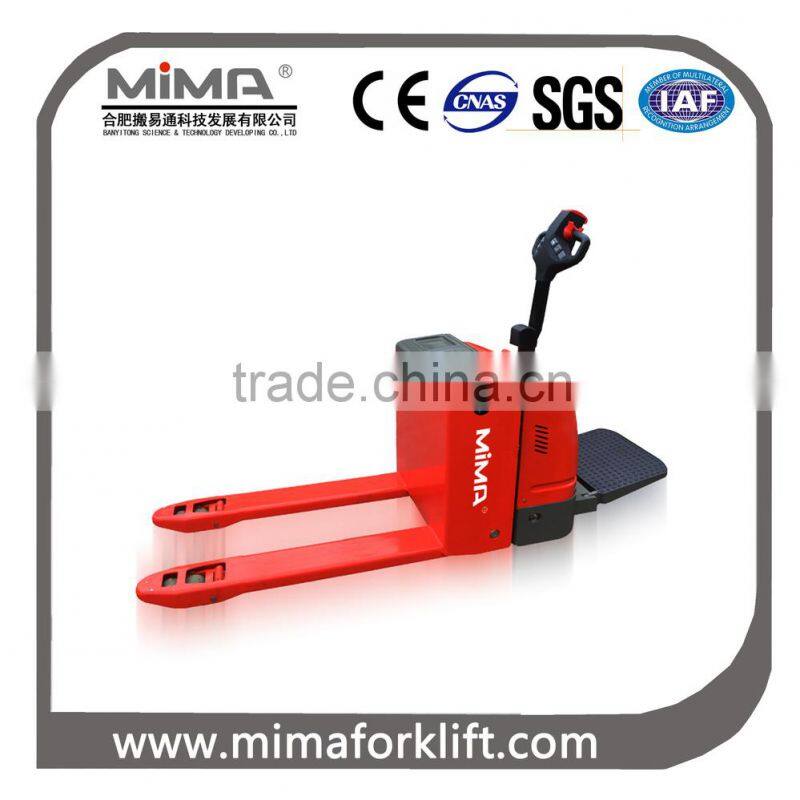

MIMA electric pallet lift truck TE series;
The electric pallet truck with load capacity 3.0T,4.0T, it's polpular in many industries.
1. Safety: Auto Curve Speed-reduced function;
2. Anti-roll back prevents uncontrolled traveled speed or roll-bak on ramps when loading and unloading;
3. The small ground clearance, to protect the operator;
4. Excellent performance of getting in and out of empty pallet,greatly increases the operation efficiency;
5. Emergency plug mounted at up-right side on truck frame, all power can be cut off by simply pulling emergency plug and the truck stops.
|
Model No. |
TE15 | TE25 | TE30 | TE40 | ||
| Standard | Power Type | Battery | Battery | Battery | Battery | |
| Operate Type | Stand-on | stand-on | stand-on | stand-on | ||
| Rated Capacity | Q(kg) | 1500 | 2500 | 3000 | 4000 | |
| Load center | C(mm) | 600 | 600 | 600 | 600 | |
| T & y R r I e m |
Wheel Type-Front/Rear | polyurethane tire | ||||
| Front Wheel | φ80×70 | φ80×70 | φ80×70 | φ80×110 | ||
| Rear Wheel | φ215×75 | φ215×75 | φ215×75 | φ215×75 | ||
| Caster wheel | Φ100×40 | Φ100×40 | Φ150×50 | Φ150×50 | ||
| Tyres No. -front/rear (X=Drive wheel) | 4 /1X +2 | 4 /1X +2 | 4 /1X+2 | 4 /1X+2 | ||
| Handle Height | h1(mm) | 1330 | 1330 | 1330 | 1330 | |
| Fork Lift Height | h2(mm) | 120 | 120 | 120 | 120 | |
| Fork Min Ground Clearance | h3(mm) | 85 | 85 | 85 | 85 | |
| Overall Length -pdeal extended/closed | 11/12(mm) | 1727 / | 2310 /1907 | 2405 / 2002 | 2405 / 2002 | |
| Fork Dimensions | mm | 1150*175*75 | 1150*175*75 | 1150*175*75 | 1150*205*75 | |
| Overall Width | b1(mm) | 730 | 730 | 850 | 850 | |
| P o w e r |
Drive Motor type | AC | AC | DC | AC | |
| Lift motor type | DC | DC | DC | DC | ||
| Lift Motor (S3 15%) | kw | 2.2 | 2.2 | 2 | 2 | |
| Battery V/AH | V/AH | 24/140 | 24/210 | 24/210 | 24/280 | |
| Steering | Steering type | Mechanical | ||||
| Parking brake type | Electromagnetic | |||||
12 months warranty;
Banyiting sicence & technology developing co.,ltd was established in 1994,with 20 years experiences in material handling equipments.Our factory located in the science & technology culture and ancient city of hefei,Anhui province.It is about 400 kilometers away from the Shanghai city,45 minutes by air or 2.5 hours by high-spped train.We are high-tech enterprise,specializing in R&D and designing electric forklift,and material handling solutions for different industries.We have ISO9001:2008 Quality Management System Certification,the People's Repulic of China Special Equipment Production License and Hefei City Innovative Enterprices.All products with CE certification and SGS certification.
Now MIMA brand have 12 major series,more than 50 products,such as the electric pallet truck,electric pallet stacker,reach truck,forklift,tow tractor,narrow aisle forklift,special forklift,AGV etc.We supply the 500KG-100000KG material handling solutions to the clients,to achieve products serialization and large-scale manufacture.All MIMA products are widely used in medicine,food,chemical,electronics,machinery,furniture and many industries.
ISO and CE Certificate
If you have any requirements or question on specical material handling equipments,pls don't hesitate to contact with us.
