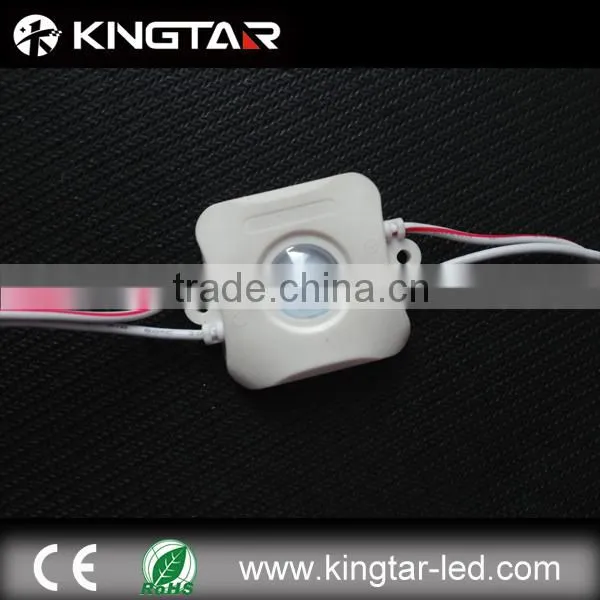

DC12V Waterproof 1w High Power Led Module

Name: DC12V Waterproof 1w High Power Led Module
Brand: Kingtar
SKU: 108456751
Availability: InStock

US$ 0.6 - 0.8 MOQ: 500 Pieces

Key Specifications

Model Number:

KT-HP3535

Chip Material:

Other, Epistar

Emitting Color:

Cool White

Shenzhen Kingtar Technology Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Model Number KT-HP3535

Chip Material Other, Epistar

Emitting Color Cool White

Luminous Flux(lm) 100

Power Other, 1.2, 1.2W

Color Temperature 8000-10000

Operating Temperature(℃) -20, 60

Storage Temperature(℃) -20, 60

Place of Origin Guangdong, China

Brand Name Kingtar

Certification CE

DC12V Waterproof 1w high power led module

SMD module feature:

1) Energy efficient, major reduction in power costs;

2) Low heat, high brightness and light efficiency;

3) Environment friendly, no RF interference;

4) Safe low voltage operation; cool to the touch;

5) Solid-State, High Shock Vibration Resistant;

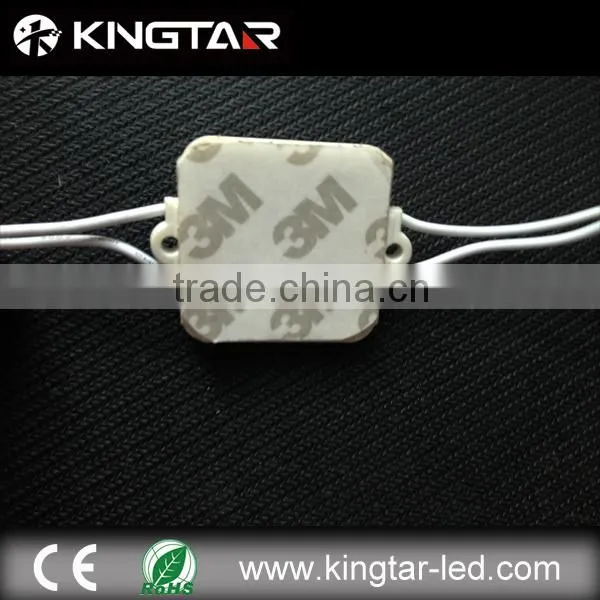

6) Easy installation with mounting holes and 3M adhesive tape on the back

Specification:

Item	high power led module
Angle	>=140°
Available colors	Red/Green/Blue/Yellow/White/Warm white
Color Temperature/Wavelength (nm/k)	White Warm white 5500-11000 2400-4000
Single-light flux(lm)	White Warm white 100-150 90-100
Led Qty	1
Light Source Life	>=50000h
Voltage	DC12V
Power	1.2W
Drive Mode	Constant Drive
shell	Plastic case

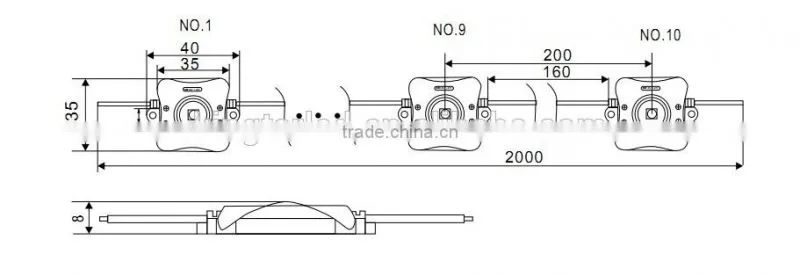

Shell size	35458 mm
Shell color	White
Temperature	-40°C~60°C
Storage Temperature	-50°C~80°C
IP Rank	IP65
