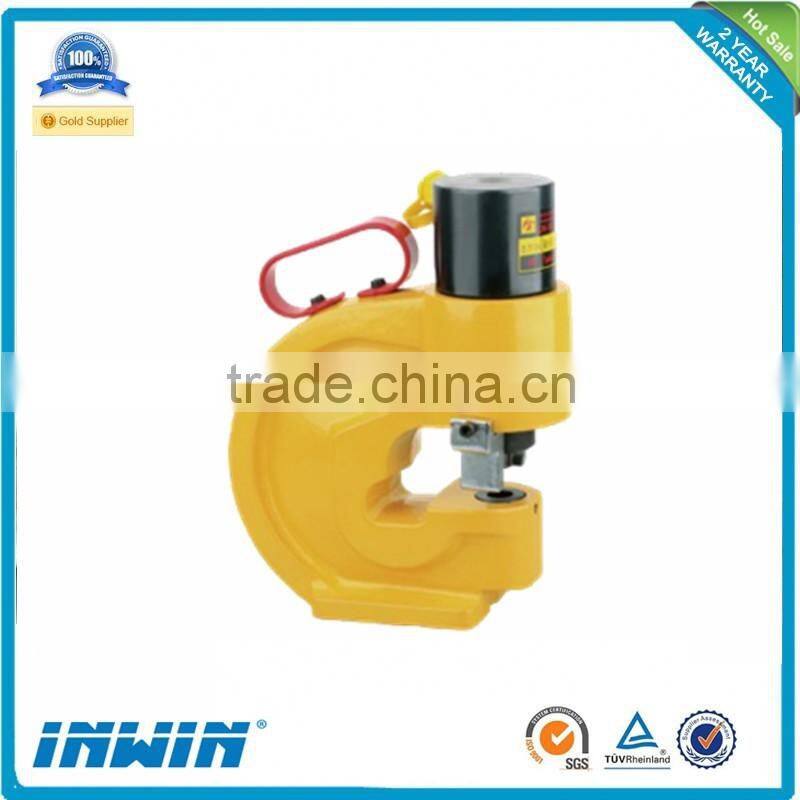

Hydraulic Kockout Punch Holes Machine
FUNCTION:
This machine is a dedicated bus installation, punching machines and tools required to complete pump (manual pump,Treadle pumps,electric
pumps) use.
1.It is designed for punching holes on Cu/AI bus bar.
2.Fast speed punching, accurate position without deviation.
3.AlI kinds of punching dies could be ordered.
4.Hydraulic punching could avoid cutting scraps while punching hole.It is much safer and clearer while operation.
5.Portable unit could be taken to site or fixed in factory for batch punching work.
6.Standard assembling of four dies in 1 0.5,1 3.8,1 7.5,20.5mm supplied with the puncher.

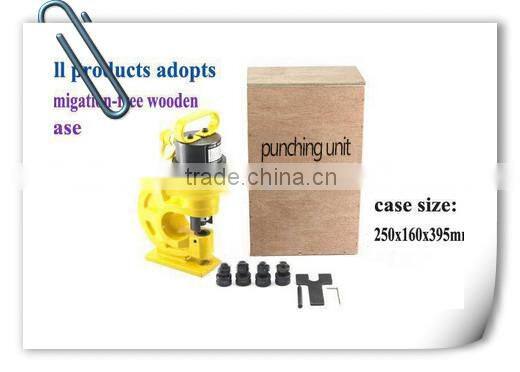

7.one packing box, one fixing spanner and one hexagon spanner assemblied.
Techincal parameters
Model:CH-60
Aperture(mm):Φ10.5,Φ13.8,Φ17.5,Φ20.5
Output(T):31
Max thickness(mm):Iron sheet Copper Busbar:6mm 10mm
Throat Depth(mm):95
Size(mm):350×245×110
Weight(kg):19
