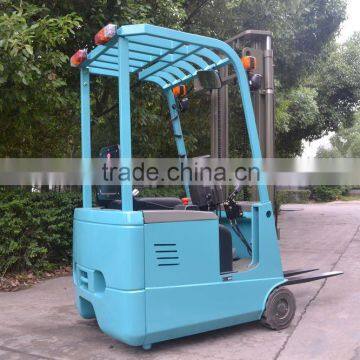

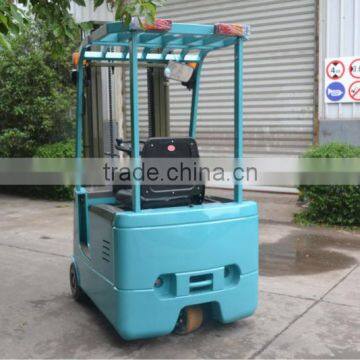

3-wheel Electric Forklift

Name: 3-wheel Electric Forklift
Brand: MIMA
SKU: 108451997
Availability: InStock

Negotiable MOQ: 1 Volt (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

MIMA

Model Number:

TKA

Hefei Banyitong Science & Technology Developing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Nanjing

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name MIMA

Model Number TKA

Specifications

economic, mini, turning radius is very small, DC/AC optional, CURTIS controller, quality battery

1	Description	3-wheel electric forklift truck
2	Model	TKA10-30(2stage mast)	TKA15-30(2stage mast)
3	Load capacity Kg	1000	1500
4	Load center mm	500	500
5	Max. lifting height mm	3000	3000
6	Tilting angle (forward- backward) deg	2/4	2/4
7	Free lift mm	0	0
8	Wheel type	Polyurethane solid tire
9	Fork size (LxWxT)mm	92010035	92010035
10	Fork spread distance mm	220-548	220-658
11	Overall length(without forks) mm	1345	1450
12	Overall width mm	915	1055
13	Overall height mast closedmm	2065	2065
14	Overall height fork raised(without backrest) mm	3560	3560
15	Overhead guard height mm	1965	1965
16	Outside turning radius mm	1170	1275
17	Min. intersecting aisle mm	2690	2795
18	Max. walking speeds Km/h	7.2	7.0
19	Lifting speeds (Loaded/ Unloaded) mm/s	125/170	125/170
20	Gradeabitity %	8/10	8/10
21	Total weight( with battery)Kg	1950	2170
22	Front tire	Φ305*127	Φ305*140
23	Rear tire	Φ267*127	Φ267*127
24	Wheel base(adjustable)mm	880-961	960-1031
25	Min. under-clearance mm	90	90
26	Service brake	hydraulic
27	Parking brake	mechanical
28	Battery V/Ah	24/360	24/480
29	Charger V/A	24/40	24/50
30	Driving motor Kw	2.3	2.3
31	Lifting motor Kw	3.5	3.5
