10w 3" led recessed downlight

Description

10w 3'' led recessed downlight

Model Number

ST-T10WA-3''

Units

CCT(°K)

3000K±10%

4500K±10%

6000K±10%

Input Voltage

AC 85~265 V

V

Input Frequency

50~60 Hz

Hz

Power Factor

0.975

---

Power Consumption

Typical:10W   Maximum:12W

W

LED Operating Current

380mA±5%

Ma

Emission Angle

140 ±5

Degree

LED Luminous Flux (lm)

650 lm ±50 lm

750 lm ±50 lm

800 lm ±50 lm

lm

CRI

Ra>73(WW)

Ra>73(NW)

Ra>73(CW)

%

Operating Temperature

-20°C ~ 60°C

°C

Housing Temperature

<60°C

°C

Operating Humidity

<85% Non condensed

%

MTBF(1)

>30,000Hr

Hr

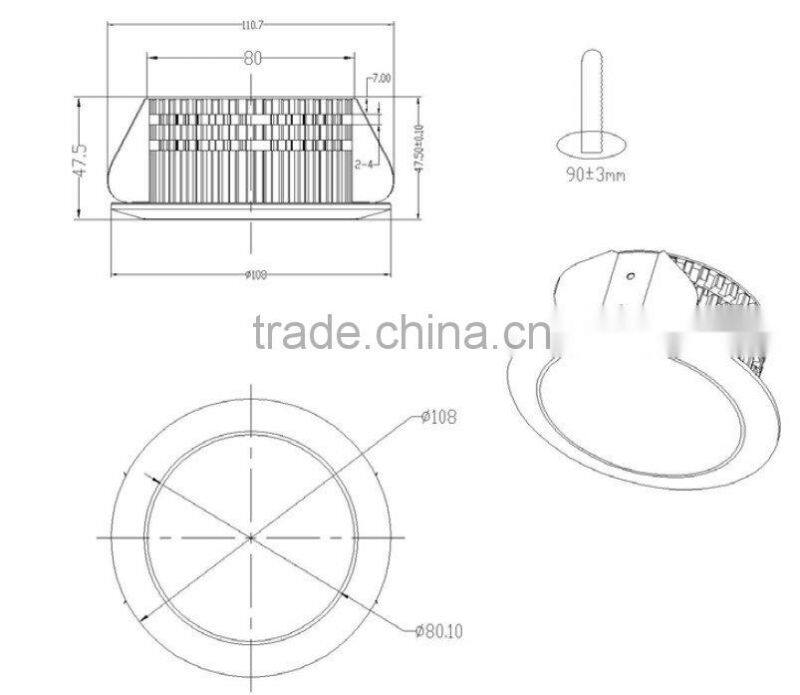

Dimension / Weight

 ψ108mm ×47.5mm /0.45kg

Mm/Kg

Box Size / Weight

119*119*58.5mm / 0.55

Mm/Kg

Carton Size / Weight /Quantity

56*43*32CM / 15kg / 24pcs

Cm/Kg/Pcs

Housing Color

Silver /Matt white/Chrome/Golden/Black/…
