0-10V Dimmable Sharp 15W Square LED Downlight

0-10V Dimmable Sharp 15W Square LED Downlight photo-1
US$ 20 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Sharp
Warranty(Years):
3
Input Voltage(V):
200-240V AC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source Sharp
Warranty(Years) 3
Input Voltage(V) 200-240V AC
Lamp Power(W) 15
Lamp Luminous Flux(lm) 1265lm to 1305lm
Lamp Luminous Efficiency(lm/w) 87
Color Temperature(CCT) Other, 2700/3000/4000/5000K
Working Temperature(℃) -20, +50
Working Lifetime(Hour) 35000
Lamp Body Material Aluminum
IP Rating Other, IP20
Certification CE, EMC, GS, LVD, SAA
Model Number KWT-SD15FSPFWH
Place of Origin Guangdong, China
Brand Name KWT

Specifications

0-10V Dimmable Sharp 15W Square LED Downlight
1.TUV GS SAA CB CE RoHS
2.3 Years Warranty
3.Triac/0-10V/C-Bus


Product Description

0-10V Dimmable Sharp 15W Square LED Downlight



Specification

Power

15W

Voltage&Frequency

400mA ;50/60Hz

Beam Angle

44degree

CCT Range

WW--2700K 3000K ,NW--4000K ,CW--5000K

Power Factor

0.92

Dimension

105mm Lx113mm Hx105mm W

Cut out size

90mm

Finish Color

White/Silver

Install Type

Recessed

Material

Aluminium + PMMA

IP Grade

IP20

Life Span

35,000 hours

Lumens Decline

30% after 50,000hrs

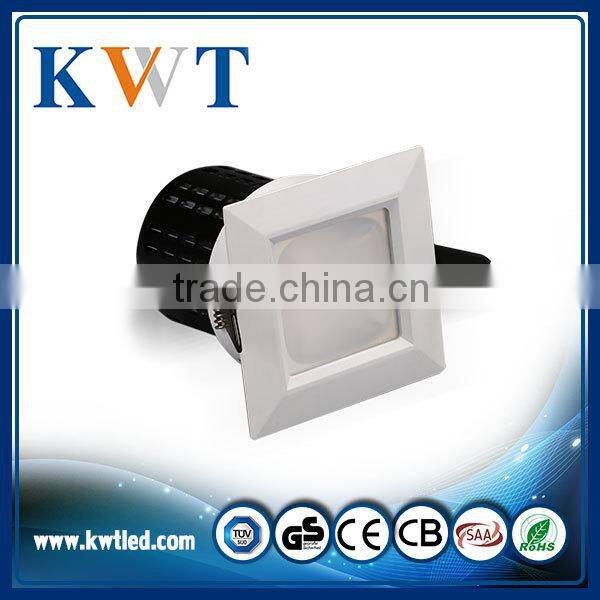

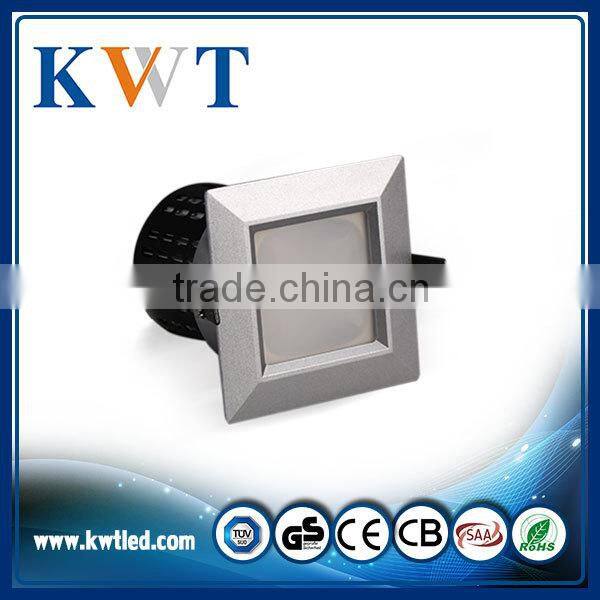

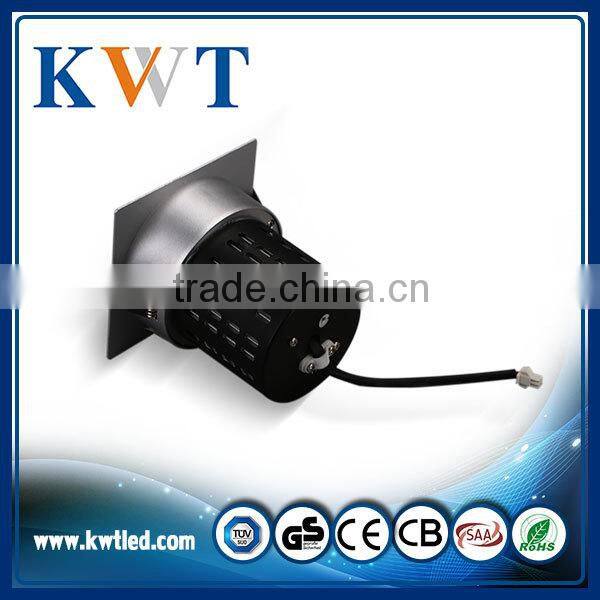

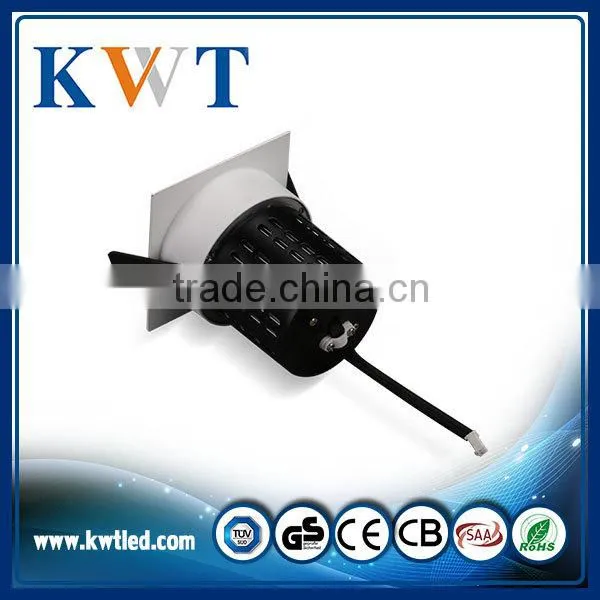

Product Show

0-10V Dimmable Sharp 15W Square LED Downlight0-10V Dimmable Sharp 15W Square LED Downlight0-10V Dimmable Sharp 15W Square LED Downlight0-10V Dimmable Sharp 15W Square LED Downlight

Applications




Company Information

Company Profile

1.Factory Inspected by TUV & BV, please download files & watch video from company profile.

2.Quality Management Systems: ISO 9001: 2008

3.5,000 sq.m. factory,

4.Test Machines: Intergrating Sphere, Goniophtemeter, Temp&Humi Chamber, Salt Spray Test, Vibration Test, Drop Test etc.

Certificates




Packaging & Shipping



Supply Neutral Packing White Box;

OEM ODM,Customer Design Box Available;

DHL UPS Fedex TNT,Air Freight,FOB Sea Freight etc.




Our Services

1.Reply you within 24h.

2.OEM available.

3.If driver failed,we will send new driver.

4.If LED failed,we will send full new set.


FAQ

1.What is your warranty policy?

Answer:All of our LED products come with a 3 years warranty.

2.What will you do if there are any problem founded in use?

Answer:You will get a replacement for free within warranty and just need to pay

    the cost price if it is beyond the warranty period.

3.How Long Do LED Light Last?

Answer:Our LEDs are rated to last for more than 35000 hours .
