18w Gimbal Cob Led Downlight Export Products List

18w Gimbal Cob Led Downlight Export Products List thumbnail-1
18w Gimbal Cob Led Downlight Export Products List photo-1
US$ 30 - 38.5 MOQ: 10 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Citizen
Warranty(Years):
3
Input Voltage(V):
200-240V AV 50/60Hz
Contact Supplier Request Quote Chat Now
Shenzhen Singten Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Citizen
Warranty(Years) 3
Input Voltage(V) 200-240V AV 50/60Hz
Lamp Power(W) 18
Lamp Luminous Flux(lm) 1206lm(3000K)
Lamp Luminous Efficiency(lm/w) 68
Color Temperature(CCT) Warm White
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 35000
Lamp Body Material Aluminum
IP Rating Other, IP20
Certification CE, C-tick, EMC, LVD, SAA
Model Number KWT-RG18GBRCWL
Place of Origin Guangdong, China
Brand Name KWT

Specifications

export products list
voltage:200-240V AC 50/60Hz
Citizen COB
warranty: 3 years
Certificate: SAA&CE&ROHS



Product Description

 Export Product List

HIGHLIGHTS

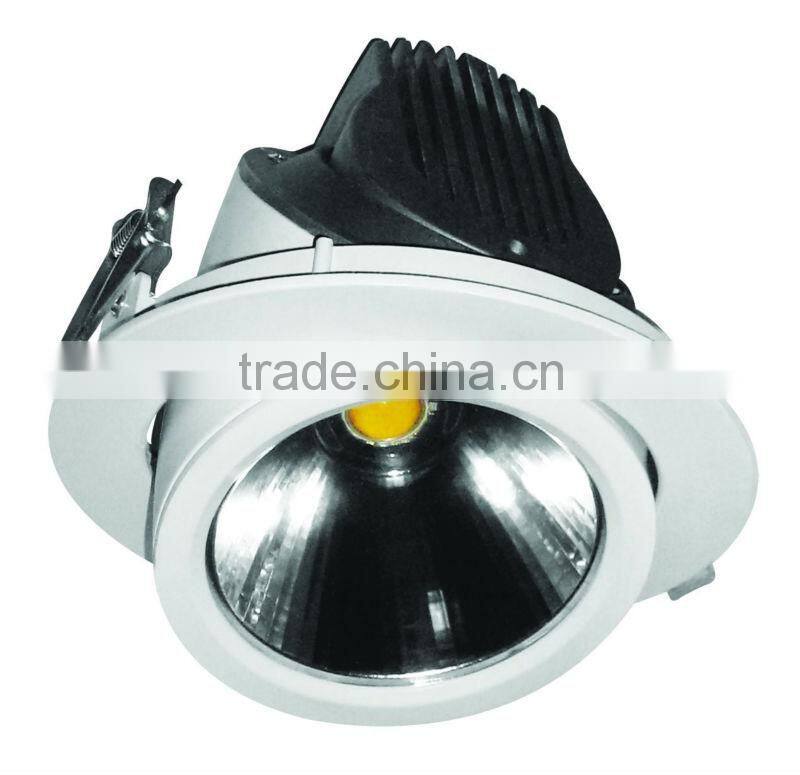

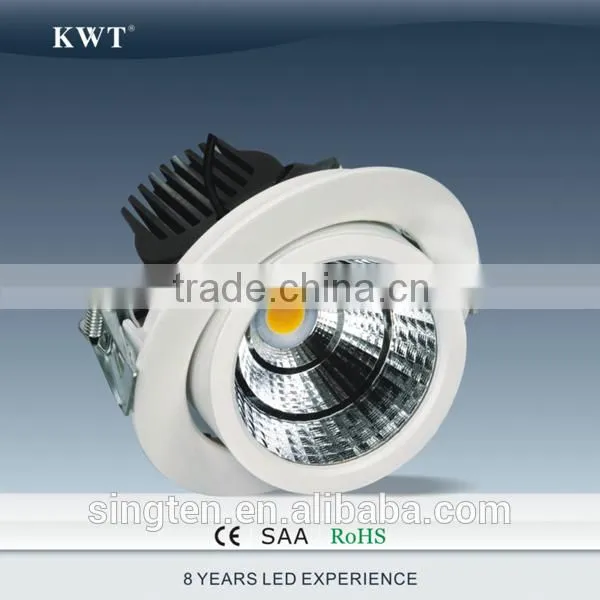

Europe popular 18W Gimbal LED down light

1. Orginal High luminous Citizen COB Chip

2. High Quality driver with TI IC and Rubycon Capatictor

3. Patent Design Light Structure for good heat dissipation

4. Die-casting housing

5. Private mold

6. Strong Package to bear oversea transportation

7. 7S management and BV/TUV certifacted production lines





Features

1. High efficiency : >78lm/w;

3. Heatsink : good heat dissipation

4. TUV-CE RoHS CB, SAA approved driver;

5. Beam angles for options: 32°;

6. Finish Color: White, Black / Customization



More Specifications

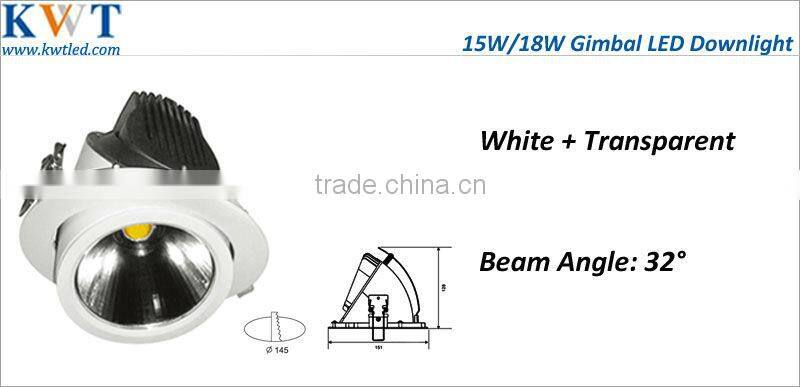

1. Cutout size: 142mm ;

2. IP Rating: IP20

3. Gimble type;

4. Materials: Aluminium + Glass;

5. Ambient Temp.: -20°C to 50°C;





Technical parameters

Model No.

Wattage

 Cutout

Input Voltage

LED Current

LED / CCT

Beam Angle

CRI

PFC

Finish Color

RG15GBRCWL

15W

 142mm



200-240V AC

 360mA

CITIZEN COB     LED                    3000K: 1005lm
4000K: 1170lm

32°



Ra83

≥0.95

White Trim

RG18GBRCWL

18W

 450mA





CITIZEN COB LED             3000K: 1206lm
4000K: 1404lm





RG23GBRCWL

23W

 175mm



 550mA



CITIZEN COB LED             3000K: 1564lm
4000K: 1794lm







24°







RG28GBRCWL

28W

 670mA



CITIZEN COB LED             3000K: 1876lm
4000K: 2184lm







 18w gimbal cob led downlight export products list18w gimbal cob led downlight export products list18w gimbal cob led downlight export products list





18w gimbal cob led downlight export products list



Packaging & Shipping



Packing

    • Can be customized designed
    • Box packing for one piece, then into cartoon packing







Our Services



1. Sample Policy Service:

We provide free samples in this way - Refund sample fees when bulk order (100pcs at least),

For example, refund 1 sample fee when ordering 100pcs lamp.



2. Customized Service(OEM/ODM):

Share us your led downlight design or your idea, we will design & open mold for you.

you will enjoy the exclusive right of this lamp on your local markets.

we will sign the exclusive agreement.



3. After-sales Service:

Free replacement in warranty period if the quality problems, we will undertake the shipping cost.



4. Payment:

L/C, T/T, Western Union, Paypal.



 18w gimbal cob led downlight export products list

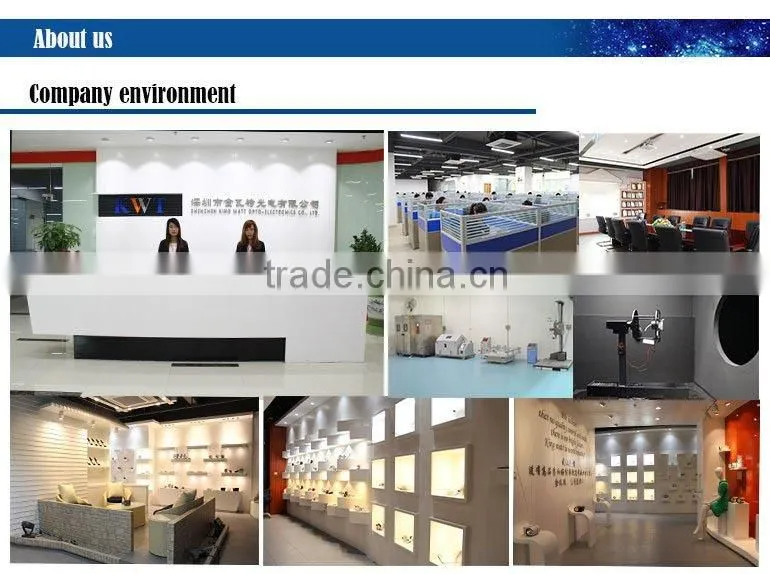

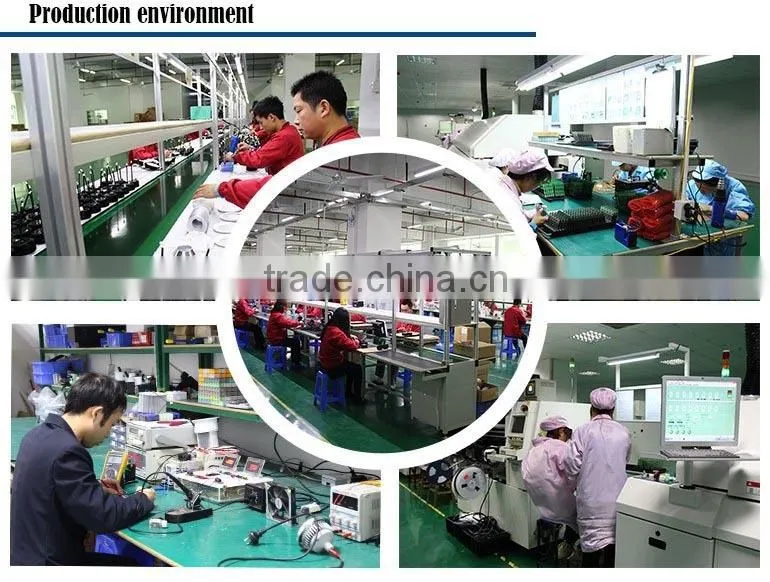

Company Information



1. Factory Inspected by TUV & BV, please download files & watch video from company profile.

2. Quality Management Systems: ISO 9001: 2008

3. 5,000 sq.m. factory,

4. Test Machines: Intergrating Sphere, Goniophtemeter, Temp&Humi Chamber, Salt Spray Test, Vibration Test, Drop Test etc.

18w gimbal cob led downlight export products list18w gimbal cob led downlight export products list18w gimbal cob led downlight export products list18w gimbal cob led downlight export products list18w gimbal cob led downlight export products list18w gimbal cob led downlight export products list



FAQ




FAQ

1. What materials for your LED down Light?

Answer : we use top quality Aluminum + Glass, good performance for heat dissipation.



2. What CRI for the LED down Light?

Answer : Usually using CRI>=83Ra for LED down light, also provide CRI>=92Ra if you require.



3. How can I complian if the LED down Light fails to work?

Answer : Contact Sales and show proof, we will replace new one if quality problem.

18w gimbal cob led downlight export products list
