Medical Monitor,CE Marked,12.1inch,Medical Use Monitor

Medical Monitor,CE Marked,12.1inch,Medical Use Monitor thumbnail-1
Medical Monitor,CE Marked,12.1inch,Medical Use Monitor photo-1
US$ 500 - 600 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Examination Therapy Equipments
Brand Name:
Jumper
Model Number:
JPD-800B
Contact Supplier Request Quote Chat Now
Shenzhen Jumper Medical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Examination Therapy Equipments
Brand Name Jumper
Model Number JPD-800B
Place of Origin Guangdong, China

Specifications

Medical monitor
1.12.1 inch
2.CE marked.
3.ECG , Spo2 , PR , NIBP , RR , Temp.

Medical Monitor

General instruction:



Portable Patient Monitor is adaptable to adult, pediatric and neonatal usage. It can monitor vital signals as ECG, Respiratory Rate, SpO2, NIBP, TEMP and IBP. It integrates parameter measuring modules, display and recorder in one device, featuring in compactness, lightweight and portability. Replaceable built-in battery facilitates transportation of patient.



Specifications

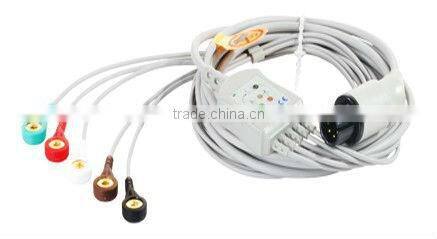

ECGMedical Monitor,CE marked,12.1inch,Medical use monitor

Lead mode 5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)

Lead selection I, II, III, avR, avL, avF, V,

Waveform 2 ch

Lead mode 3 Leads ( R, L, F or RA, LA, LL)

Lead selection I, II, III,

Waveform 1 ch

Gain: X2.5mm/mV, X5.0mm/mV, X10mm/mV, X20mm/mV, auto

Resolution 1 bpm

Sensitivity > 200 (uV P-P)

Differential Input Impedance > 5 MΩ

CMRR

Monitor > 105 dB

Operation > 105 dB

Diagnosis > 85 dB

Electrode offset potential 300mV

Leakage Current < 10 uA

Baseline Recovery < 3 S After Defi.

ECG Signal Range: 8 m V ( Vp-p )

Bandwidth

Surgery 1 ~ 15 Hz

Monitor 0.5 ~ 35 Hz

Diagnostic 0.05 ~ 100 Hz

5%±Calibration Signal 1 (mV p-p), Accuracy :

ST Segment Monitoring Range

Measure and Alarm -2.0 ~ +2.0 mV

ARR Detecting



Type ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R

ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC

Alarm Available

Review Available



RESP

Method Impedance between R-F(RA-LL)

Differential Input Impedance >2.5 MΩ

Measuring Impedance Range: 0.3~5.0Ω

Base line Impedance Range: 0 ~ 2.5 KΩ

Bandwidth 0.3 ~ 2.5 Hz

Resp. Rate

Measuring and Alarm Range

Adult 0 ~ 120 rpm

Neo/Ped 0 ~ 150 rpm

Resolution 1 rpm

Accuracy  2 rpm

Apean Alarm 10 ~ 40 S

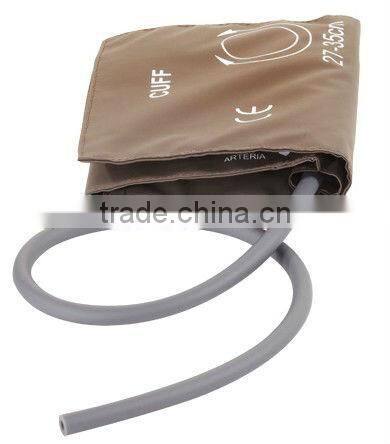

NIBPMedical Monitor,CE marked,12.1inch,Medical use monitor

Method Oscillometric

Mode Manual, Auto, STAT

Measuring Interval in AUTO Mode

1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min)

Measuring Period in STATMode 5 Min

Pulse Rate Range 40 ~ 240 bpm

Alarm Type SYS, DIA, MEAN

Measuring and alarm range

Adult Mode

SYS 40 ~ 270 mmHg

DIA 10 ~ 215 mmHg

MEAN 20 ~ 235 mmHg

Pediatric Mode

SYS 40 ~ 200 mmHg

DIA 10 ~ 150 mmHg

MEAN 20 ~ 165 mmHg

Neonatal Mode

SYS 40 ~ 135 mmHg

DIA 10 ~ 100 mmHg

MEAN 20 ~ 110 mmHg

Resolution

Pressure 1mmHg



Accuracy

Pressure

Maximum Mean error  5mmHg

Maximum Standard deviation  8mmHg

Overpressure Protection

Adult Mode 297 3 mmHg

Pediatric Mode 240 3 mmHg

Neonatal Mode 147 3 mmHg

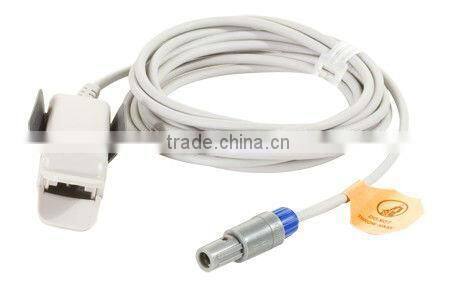

SpO2Medical Monitor,CE marked,12.1inch,Medical use monitor

Measuring Range 0 ~ 100 %

Alarm Range 0 ~ 100 %

Resolution 1 %

Accuracy

70% ~ 100%  2 %

0% ~ 69% unspecified

Actualization interval about 1 Sec.

Alarm Delay 10 Sec.

PR

Measuring and Alarm Range

0~254bpm

Resolution :1bpm

Accuracy:  2bpm

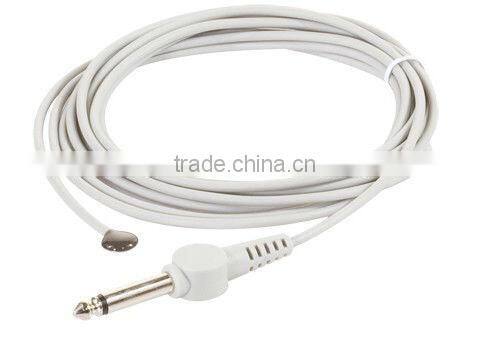

TEMPMedical Monitor,CE marked,12.1inch,Medical use monitor

Channel 1

Measuring and Alarm Range 0 ~ 50 C

Resolution 0.1 C

Accuracy  0.1 C

Actualization interval about 1 Sec.

Average Time Constant < 10 Sec.

IBP(Optional)

Label ART, PA, CVP, RAP, LAP, ICP, P1, P2

Measuring and alarm range

ART 0 ~ 300 mmHg

PA -6 ~ 120 mmHg

CVP/RAP/LAP/ICP -10 ~ 40 mmHg

P1/P2 -10 ~ 300 mmHg

Press Sensor

Sensitivity 5 uV/V/mmHg

Impedance 300-3000Ω

Resolution 1 mmHg

Accuracy 2% or 1mmHg, which great

Actualization interval about 1 Sec.

ETCO2(Optional)

Measure range: 0% - 13%

Resolution: 1 mmHg

Accuracy : ±2 mmHg (< 5.0% Measurement Value)

±10%( > 5% Measurement Value)

Response Time: 180ms



CE Certificate:

Medical Monitor,CE marked,12.1inch,Medical use monitor

About Us

Shenzhen Jumper Medical Equipment Company is a manufacture of medical equipment in China since 1998, with CE&FDA approved.

We have over 300 employees, cover an area of 8,000 M2

We are in the field of

-Fetal Doppler

-Fetal Monitor

-Patient Monitor

-Finger Pulse Oximeter

-Infrared Forehead Thermometer.

-Finger Pulse Oximeter.

Medical Monitor,CE marked,12.1inch,Medical use monitor

Medical Monitor,CE marked,12.1inch,Medical use monitor

Medical Monitor,CE marked,12.1inch,Medical use monitor
