CE RoHS SAA TUV GS Certification High Lumen Dimmable Recessed Commercial COB LED Downlight
The new downlight we designed to use original high quality CITIZEN or SAMSUNG LED. In series of 4-inch ,6-inch and 8-inch.Each series in different cut out size,different beam angle and different diffuser to match different architectural lighting requirements.
A-Series for flood general lighting
B-Series for commercial lighting
C-Series for high ceiling and accent light
1. The original SAMSUNG led with high efficiency
2. High Quality driver with TI IC and Rubycon Capatictor, designed by our own R&D ,based on different country situation.
4. Pure aluminium radiator , guarantee long life time.
5. Certification: TUV-GS CB CE ROHS SAA
6. 7S management and BV/TUV certifacted production lines
7. 15W - 50W for option.
8. High grad DEGUSA PMMA to performance comfortable light,transparent rate >92%
9. 1090 aluminum reflector ,mirror-finish anodized,reflective rate >95%
10. Die-cast aluminum houseing,power coating

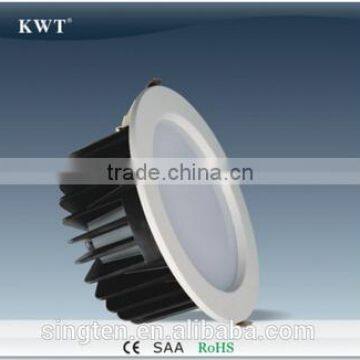

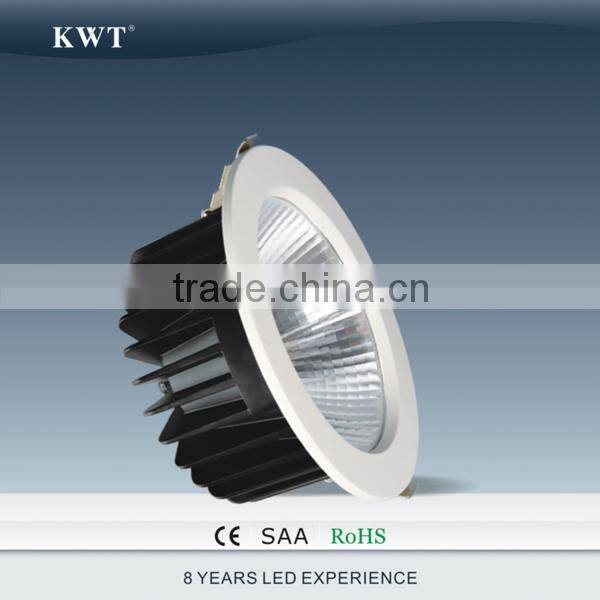

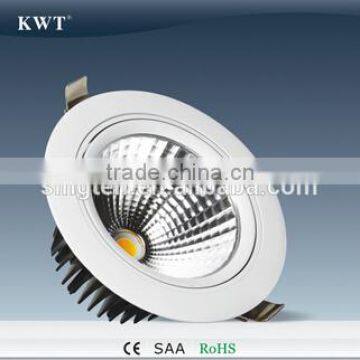

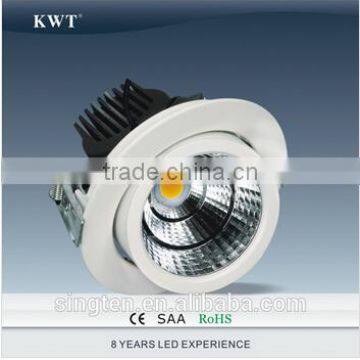

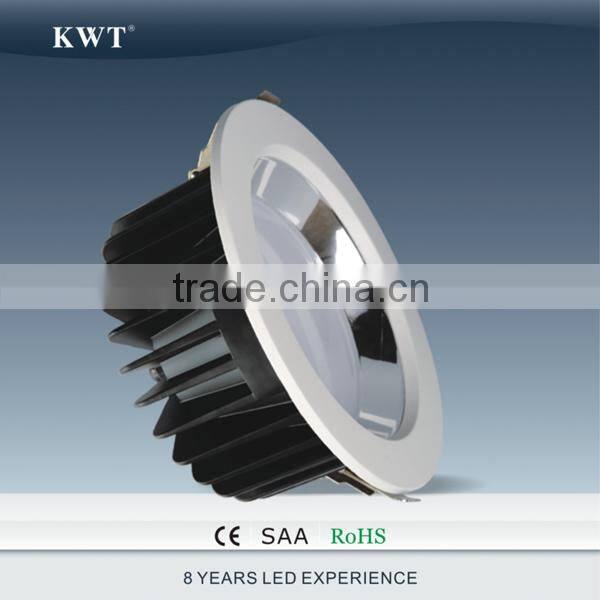

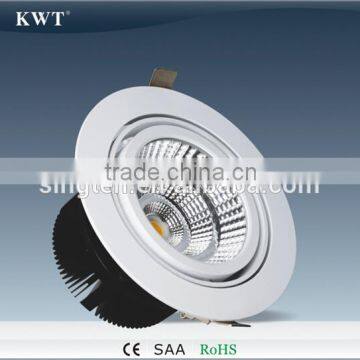

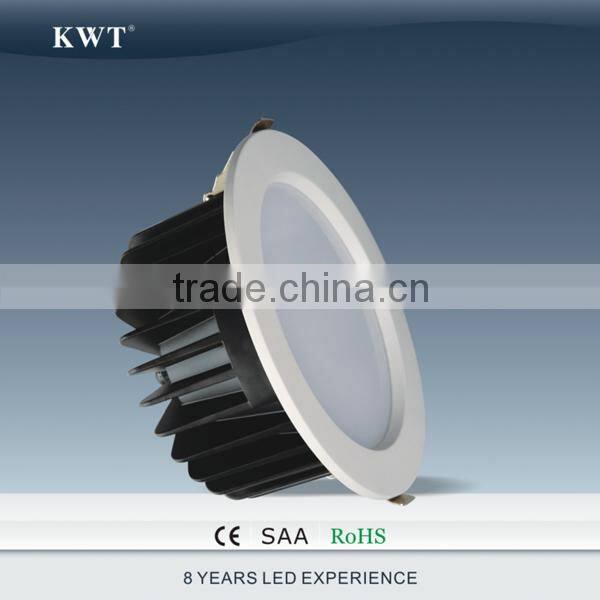

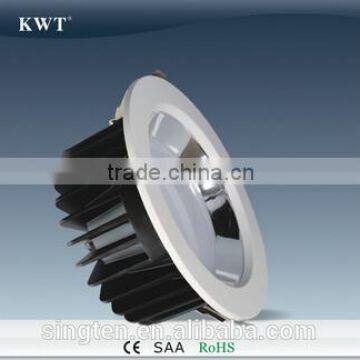

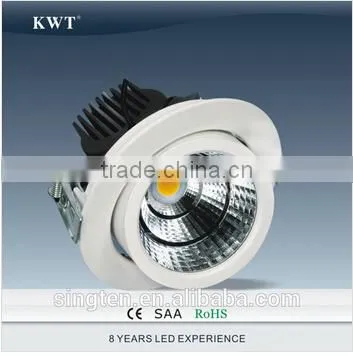

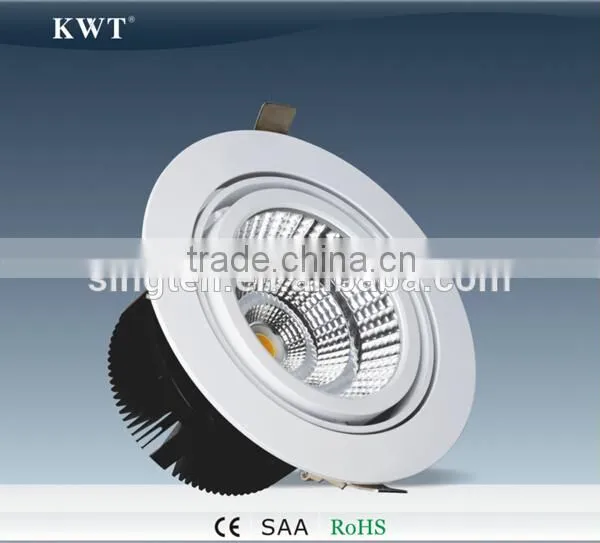

Product Picture
Specifications :
| LED Source | Citizen COB |
| Power | 35W |
| Model No. | KWT-DLD0635-C |
| Luminous Flux | 3717lm-3902lm |
| CCT | 2700K/3000K/4000K/5000K |
| Dimension | 200mm D x 110mm H |
| PFC | ≥0.95 |
| CRI | ≥80Ra |
| Beam angle | 27° |
| Certificates | CE ROHS TUV GS SAA |

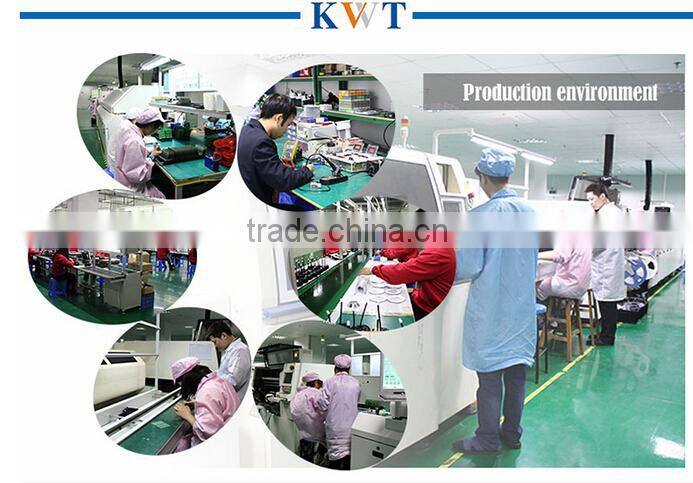

4000 Square Meter factory area ,Strict Quality Control System ;
Design & Produce Ourselves ,8 Years LED Business Experience ;
More than 6 Years Lighting Show Experience ;
Special Design For Oceania , Europe , America etc .
1. Warranty Item:
2. Customized Item (OEM/ ODM):
• Share us your led track spot light design or your idea, we will design & open mold for you.
you will enjoy the exclusive right of this lamp on your local markets.
3. Sample Policy Item:
• We provide free samples in this way - Refund sample fees when bulk order (100pcs at least),
For example, refund 1 sample fee when ordering 100pcs lamp.
4. Payment Terms:
• L/C, T/T, Western Union, Paypal, By One Touch Service.

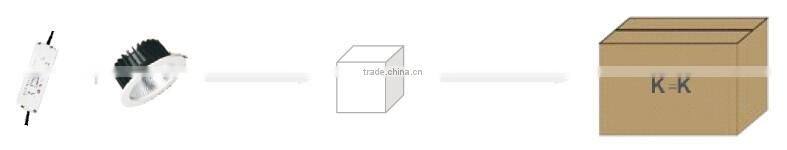

| White box /Customized color box | Box | Carton |
| Size | 220x205x135mm | 625X460X425mm |
| Weight | 1.41kgs | 28.3kgs |
| Quantity | 1pcs | 18PCS |
Shipping Term: by ship/ by air/ by express(DHL, UPS, FEDEX, TNT etc)
Q1: What is your payment term ?
Answer: Paypal ,T/T West Union ,L/C also available .
Q2: Nearly all LED downlight are the same exterior,how to tell quality?
Answer: Price and exterior.
Though LED lighting products are with same or similar exterior,due to raw material cost difference is big,poor quality are all poor heat sink exterior with poor heat dissipation.So prices are also low.
Besides,the driver exterior is also low-end with poor IC,MOS and capacitances.
Q3: Does LED downlight really have 50,000 hours lifespan?
Answer: 50,000 or longer lifespan is only theroy from lab test.But due to working environments are different from in lab,actual lifespan is only <=30,000hours.
Q4: For same power,why different suppliers with different brightness?
Answer: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip and same brightness version,the brightness will be slight difference.But please make clear the brightness difference between LEDs and lamp fixture.
For example,12w LED downlight,the LEDs initial brightness is around 1400lm.But the true lamp fixture brightness will lose some due to cover and heat,then will be around 1000lm.But some suppliers write LEDs brightness 1400lm in data sheet to attract clients.Please be careful.
Q5: What is CRI?
Answer: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.
Q6: What is PF and efficiency?
Answer: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher cost.
Q7: Is there cheap shipping cost to import to our country?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q8: Can we get support if we have our own market position?
Answer: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
For any further information,please feel free to contact,we will send you PDF document to show full issues you care on LED business.
