Help CenterMedical Equipment Six Parameter Monitor 12.1inch Touch Screen CE Marked ICU Bed Monitoring
Related Products
-
Patient Monitor Devices With CEUS$ 500 - 600MOQ: 1 Unit -
The Newest Multiparameter Patient Monitor 15" JPD-800B CE MarkedNegotiableMOQ: 1 Unit
-
Multi-para Patient Monitor,CE Marked,12 Inch.US$ 500 - 600MOQ: 1 Unit
-
Veterinary Patient Monitor,CE Approved,15 InchUS$ 500 - 600MOQ: 1 Unit
-
Patient Monitor,CE Approved,15 InchUS$ 500 - 600MOQ: 1 Unit

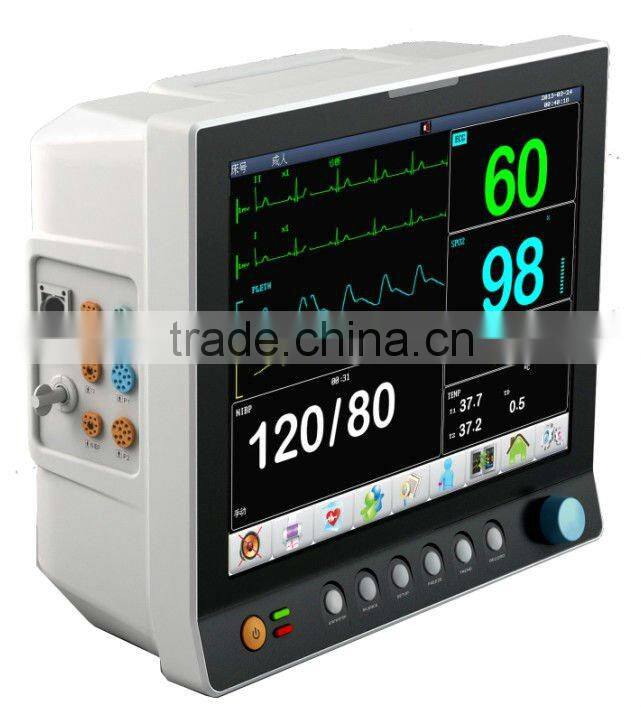

Jumper multi-parameter patient monitor JPD-800B CE marked NEW MOUDLE
12" color TFT display, up to 12 waveforms
One level menu, easy to use
Parameters including ECG/RESP, SpO2 , NIBP, TEMP, Pulse Rate and IBP(optional)
Maximum 720 hour graphic and tabular trends of all parameters
Built-in recorder and battery
Suitable for adult, pediatric and neonatal patient
Arrhythmia analysis, ST calculation, Pace analysis
Anti-ESU, anti- defibrillator
Standard network interface, can connect to Central monitor system
Optinal: recorder, dual IBP, CO2, IoC
Specifications:
ECG
*lead mode;I,II,III,AVR,AVL,AVF,V
*Gain:X0.25,X0.5,X1,X2
*Heart Rate:15-300BPM(Adult) 15-350BPM(Neonatal)
Resolution:1 BPM
Accuracy:+-1%
* ST measurement Range:-2.0-+2.0mV
Accuracy:+-10%
*Pacemaker:Yes
*Sweep Speed:12.5 mm/s,25mm/s,50mm/s
*Bandwidth:Diagnostic:0.05--130Hz
Monitor: 0.5--40Hz
Surgery: 1-20Hz
SPO2
*Measure Range:0-100%
*Resolution:1%
*Accuracy:2%(70-100%)
*Pulse Rate:20-250BPM
*Resolution:1BPM
*Accuracy:+-3BPM
RESP:
*Measure Range:0-150BrPM
*Resolution:1BrPM
*Accuracy:+-2%
Temp:
*Measure Range:0-50C
*Resolution:0.1C
*Accuracy:+-0.1C
NIBP:
*Work mode:Manual,Automatic,Continuous
*Unit:mmHg,Kpa
*Measure Range:
Adult: SYS: 40-280mmHg
DIA: 10-225mmHg
MEAN:20-240mmHg
Pediatric:
SYS:40-220mmHg
DIA: 10-160mmHg
MEAN:20-170mmHg
Neonatal:
SYS:40-135mmHg
DIA:10-100mmHg
MEAN:20-110mmHg
*Resolution:1mmHg
*Accuracy:+-5mmHg

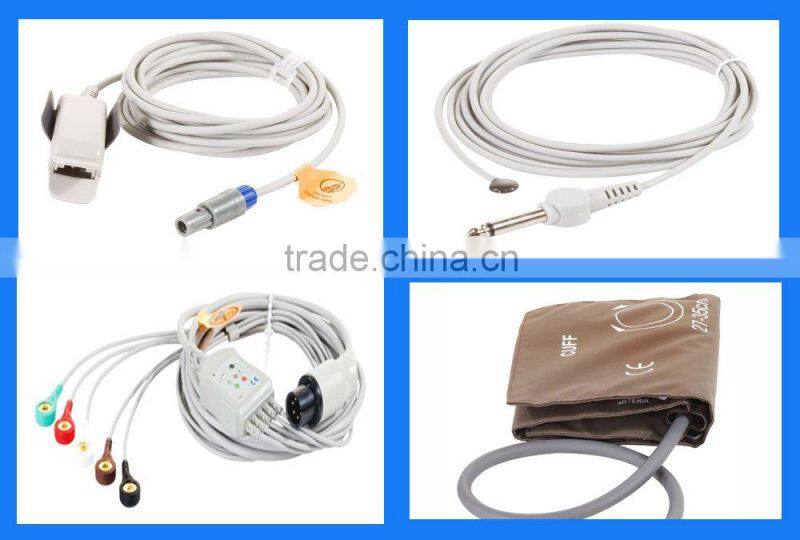

Standard Configuration
| Packing List | |||
| Equipment:Muti-parameter Patient Monitor Type:JPD-800B 12.1” | |||
| Item No. | Items | Quantity/untis | Note |
| 1 | Patient Monitor Main Unit | 1 unit | |

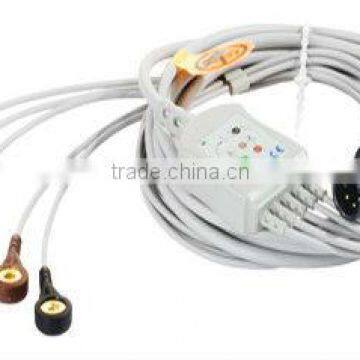

| 2 | 5 Lead ECG Lead Wire Set | 1set | |
| 3 | Adult Blood Pressure Cuff | 1pcs | |
| 4 | Blood Pressure Extention tube | 1set | |
| 5 | Adult Finger Blood Oxygen proble | 1unit | |
| 6 | Surface Temperature Probe | 1unit | |
| 7 | Disposable Electrodes | 5pcs | |
| 8 | Fuse | 2pcs | |
| 9 | Power Cable | 1pcs | |
| 10 | lithium battery | 1pcs | |
| 11 | Ground Lead | 1pcs | |
| 12 | Operation Manual | 1set | |
More details pls contact us !
