Home > Health & Medicine > Medical Equipment > Ventilator > Medical Equilpment First-Aid Devices Type ICU Patient Monitor

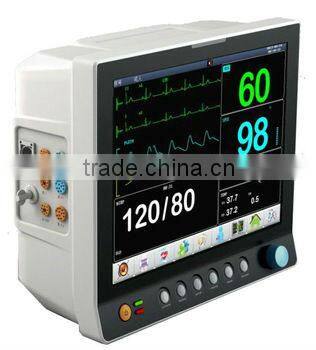

Medical Equilpment First-Aid Devices Type ICU Patient Monitor
US$ 600 - 800
MOQ: 1 set
Key Specifications
Get Latest Price
Type:
First-Aid Devices
Brand Name:
Jumper
Model Number:
JPD-800B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fda Approved Highest Quality Famous Brand Jumper Patient Monitor Anti-ESU and Anti-defibrillatorUS$ 500 - 1,000MOQ: 1 Unit -
Patient Monitor Multi Parameter Veterinary Patient Monitor From China 18 Years Professional ManufacturerUS$ 600 - 800MOQ: 1
-
China Top Seller Patient Monitor , ICU Patient Monitor,patient Monitor Multi-parameterUS$ 500 - 800MOQ: 1 Unit
-
Patient Monitor Best Price From Professional Patient Monitor Manufacturer Shenzhen JumperUS$ 600 - 800MOQ: 1
-
Shenzhen Jumper 800B Patient Monitor Multi-parameter Monior for ICU,CCU,OP UseUS$ 600 - 800MOQ: 1
Type
First-Aid Devices
Brand Name
Jumper
Model Number
JPD-800B
Place of Origin
Guangdong, China
Product Description
Specifications
CE approved
High resolution 12.1'' or 15'' TFT lcd display
ECG, RESP, SpO2, NIBP, and Dual- channel TEMP
ICU/CCU/OR use and can be used on animal as well
Networking and nurse-calling system
Recorder,touch screen,IBP(single or double),VGA and EtCO2
Features:
12" color TFT display, up to 12 waveforms
One level menu, easy to use
Parameters including ECG/RESP, SpO2 , NIBP, TEMP, Pulse Rate and IBP(optional)
Maximum 720 hour graphic and tabular trends of all parameters
Suitable for adult, pediatric and neonatal patient
Arrhythmia analysis, ST calculation, Pace analysis
Anti-ESU, anti- defibrillator
Standard network interface, can connect to Central monitor system
Optinal: recorder, dual IBP, CO2, IoC
12" color TFT display, up to 12 waveforms
One level menu, easy to use
Parameters including ECG/RESP, SpO2 , NIBP, TEMP, Pulse Rate and IBP(optional)
Maximum 720 hour graphic and tabular trends of all parameters
Suitable for adult, pediatric and neonatal patient
Arrhythmia analysis, ST calculation, Pace analysis
Anti-ESU, anti- defibrillator
Standard network interface, can connect to Central monitor system
Optinal: recorder, dual IBP, CO2, IoC
Specifications
ECG
Lead mode 5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)
LWaveform 2 ch
Lead mode 3 Leads ( R, L, F or RA, LA, LL)
Lead selection I, II, III,
Waveform 1 ch
Gain: X2.5mm/mV, X5.0mm/mV, X10mm/mV, X20mm/mV, auto
Resolution 1 bpm
Sensitivity > 200 (uV P-P)
Differential Input Impedance > 5 MΩ
CMRR
Monitor > 105 dB
Operation > 105 dB
Diagnosis > 85 dB
Electrode offset potential 300mV
Leakage Current < 10 uA
Baseline Recovery < 3 S After Defi.
ECG Signal Range: 8 m V ( Vp-p )
Bandwidth
Surgery 1 ~ 15 Hz
Monitor 0.5 ~ 35 Hz
Diagnostic 0.05 ~ 100 Hz
5%±Calibration Signal 1 (mV p-p), Accuracy :
ST Segment Monitoring Range
Measure and Alarm -2.0 ~ +2.0 mV
ARR Detecting
ECG
Lead mode 5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)
LWaveform 2 ch
Lead mode 3 Leads ( R, L, F or RA, LA, LL)
Lead selection I, II, III,
Waveform 1 ch
Gain: X2.5mm/mV, X5.0mm/mV, X10mm/mV, X20mm/mV, auto
Resolution 1 bpm
Sensitivity > 200 (uV P-P)
Differential Input Impedance > 5 MΩ
CMRR
Monitor > 105 dB
Operation > 105 dB
Diagnosis > 85 dB
Electrode offset potential 300mV
Leakage Current < 10 uA
Baseline Recovery < 3 S After Defi.
ECG Signal Range: 8 m V ( Vp-p )
Bandwidth
Surgery 1 ~ 15 Hz
Monitor 0.5 ~ 35 Hz
Diagnostic 0.05 ~ 100 Hz
5%±Calibration Signal 1 (mV p-p), Accuracy :
ST Segment Monitoring Range
Measure and Alarm -2.0 ~ +2.0 mV
ARR Detecting
RESPARATION
Method Impedance between R-F(RA-LL)
Differential Input Impedance >2.5 MΩ
Measuring Impedance Range: 0.3~5.0Ω
Base line Impedance Range: 0 ~ 2.5 KΩ
Bandwidth 0.3 ~ 2.5 Hz
Resp. Rate
Measuring and Alarm Range Adult 0 ~ 120 rpm
Neo/Ped 0 ~ 150 rpm
Resolution 1 rpm,Accuracy 2 rpm
Apean Alarm 10 ~ 40 S

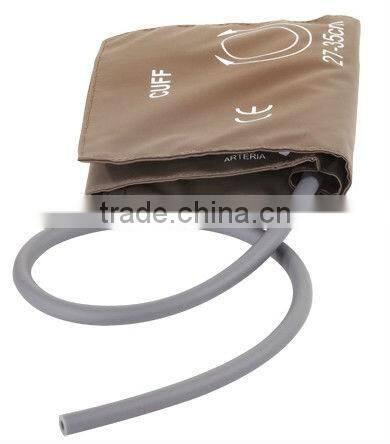

NIBP
MEAN 20 ~ 235 mmHg
Method Impedance between R-F(RA-LL)
Differential Input Impedance >2.5 MΩ
Measuring Impedance Range: 0.3~5.0Ω
Base line Impedance Range: 0 ~ 2.5 KΩ
Bandwidth 0.3 ~ 2.5 Hz
Resp. Rate
Measuring and Alarm Range Adult 0 ~ 120 rpm
Neo/Ped 0 ~ 150 rpm
Resolution 1 rpm,Accuracy 2 rpm
Apean Alarm 10 ~ 40 S
NIBP
MEAN 20 ~ 235 mmHg
Pediatric Mode
SYS 40 ~ 200 mmHg
DIA 10 ~ 150 mmHg
MEAN 20 ~ 165 mmHg
Neonatal Mode
SYS 40 ~ 135 mmHg
DIA 10 ~ 100 mmHg
MEAN 20 ~ 110 mmHg
Resolution
Pressure 1mmHg
SYS 40 ~ 200 mmHg
DIA 10 ~ 150 mmHg
MEAN 20 ~ 165 mmHg
Neonatal Mode
SYS 40 ~ 135 mmHg
DIA 10 ~ 100 mmHg
MEAN 20 ~ 110 mmHg
Resolution
Pressure 1mmHg

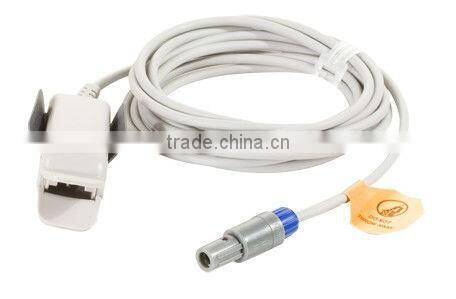

SpO2
Measuring Range 0 ~ 100 %
Alarm Range 0 ~ 100 %
Resolution 1 %
Accuracy
70% ~ 100% 2 %
0% ~ 69% unspecified
Actualization interval about 1 Sec.
Alarm Delay 10 Sec.
Pulse Rate
Measuring and Alarm Range
0~254bpm
Resolution 1bpm
Accuracy 2bpm
Measuring Range 0 ~ 100 %
Alarm Range 0 ~ 100 %
Resolution 1 %
Accuracy
70% ~ 100% 2 %
0% ~ 69% unspecified
Actualization interval about 1 Sec.
Alarm Delay 10 Sec.
Pulse Rate
Measuring and Alarm Range
0~254bpm
Resolution 1bpm
Accuracy 2bpm

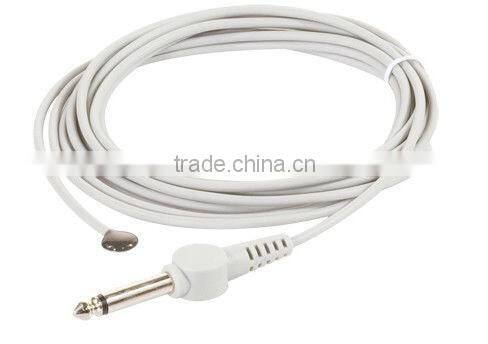

TEMPERATURE
Channel 1
Measuring and Alarm Range 0 ~ 50 C
Resolution 0.1 C
Accuracy 0.1 C
Actualization interval about 1 Sec.
Average Time Constant < 10 Sec.
Channel 1
Measuring and Alarm Range 0 ~ 50 C
Resolution 0.1 C
Accuracy 0.1 C
Actualization interval about 1 Sec.
Average Time Constant < 10 Sec.
IBP(Optional)
Label ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measuring and alarm range
ART 0 ~ 300 mmHg
PA -6 ~ 120 mmHg
CVP/RAP/LAP/ICP -10 ~ 40 mmHg
P1/P2 -10 ~ 300 mmHg
Press Sensor
Sensitivity 5 uV/V/mmHg
Impedance 300-3000Ω
Resolution 1 mmHg
Accuracy 2% or 1mmHg, which great
Actualization interval about 1 Sec.
Label ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measuring and alarm range
ART 0 ~ 300 mmHg
PA -6 ~ 120 mmHg
CVP/RAP/LAP/ICP -10 ~ 40 mmHg
P1/P2 -10 ~ 300 mmHg
Press Sensor
Sensitivity 5 uV/V/mmHg
Impedance 300-3000Ω
Resolution 1 mmHg
Accuracy 2% or 1mmHg, which great
Actualization interval about 1 Sec.
ETCO2(Optional)
Measure range: 0% - 13%
Resolution: 1 mmHg
Accuracy : ±2 mmHg (< 5.0% Measurement Value)±10%( > 5% Measurement Value)
Response Time: 180ms
Measure range: 0% - 13%
Resolution: 1 mmHg
Accuracy : ±2 mmHg (< 5.0% Measurement Value)±10%( > 5% Measurement Value)
Response Time: 180ms
Detailed Images
Packing & Delivery
1pcs /CTN,7kgs/CTN,40*25*48cm
Our Company
Company Profiles
Established in 1998, Jumper Medical is dedicated to designing and manufacturing healthcare products for personal and hospital market. Our vision is to improve the quality of human life by supplying affordable, convenient and reliable healthcare products to more families around the world.
Our products include fetal Doppler, pulse oximeter, infrared thermometer, blood pressure monitor, fetal monitor/CTG machine, patient monitor, vital signs monitor| multi parameter patient monitor| bed side monitor, ECG machine, etc. Our products are ISO13485, CE, FDA proved. In order to make sure every product conforms to ROHS requirements, all raw materials used are compliant with ROHS directives and all products are produced with ROHS compliance awareness.
With 18 years' experience in OEM/ODM service and concentration on healthcare industry, Jumper Medical welcomes professional partners to join us to achieve a better future in healthcare community.
Who we are, What we do?
We’re one of largest manufacturers of home health and baby care products. Our products including fetal Doppler, pulse oximeter, infrared thermometer, blood pressure monitor, fetal monitor/CTG machine, patient monitor, vital signs monitor, ECG machine, etc.
Why choose us?
With about 15 years' experience of OEM/ODM service and concentration in home health care industry, Our products are ISO13485, CE, FDA proved, all raw materials are comply with ROHS directive and all products are processed under ROHS technology to ensure every product is conforming ROHS requirements.
Our purpose?
Our vision is to improve life quality of human being by supplying affordable, convenient and reliable health care products to more family around the world.
Established in 1998, Jumper Medical is dedicated to designing and manufacturing healthcare products for personal and hospital market. Our vision is to improve the quality of human life by supplying affordable, convenient and reliable healthcare products to more families around the world.
Our products include fetal Doppler, pulse oximeter, infrared thermometer, blood pressure monitor, fetal monitor/CTG machine, patient monitor, vital signs monitor| multi parameter patient monitor| bed side monitor, ECG machine, etc. Our products are ISO13485, CE, FDA proved. In order to make sure every product conforms to ROHS requirements, all raw materials used are compliant with ROHS directives and all products are produced with ROHS compliance awareness.
With 18 years' experience in OEM/ODM service and concentration on healthcare industry, Jumper Medical welcomes professional partners to join us to achieve a better future in healthcare community.
Who we are, What we do?
We’re one of largest manufacturers of home health and baby care products. Our products including fetal Doppler, pulse oximeter, infrared thermometer, blood pressure monitor, fetal monitor/CTG machine, patient monitor, vital signs monitor, ECG machine, etc.
Why choose us?
With about 15 years' experience of OEM/ODM service and concentration in home health care industry, Our products are ISO13485, CE, FDA proved, all raw materials are comply with ROHS directive and all products are processed under ROHS technology to ensure every product is conforming ROHS requirements.
Our purpose?
Our vision is to improve life quality of human being by supplying affordable, convenient and reliable health care products to more family around the world.
