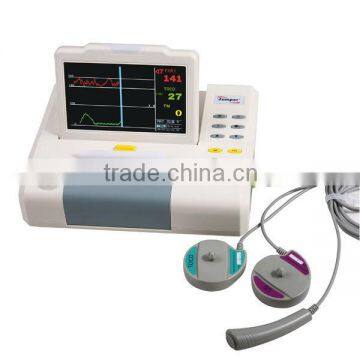

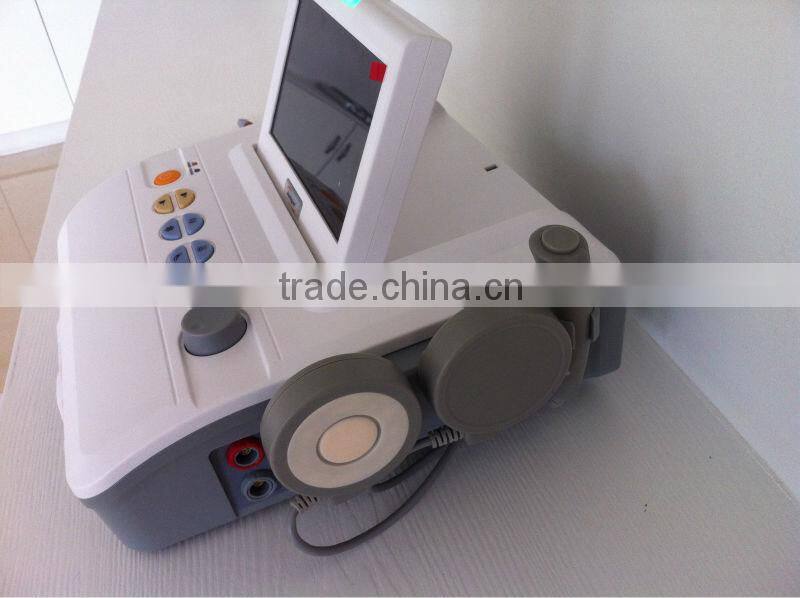

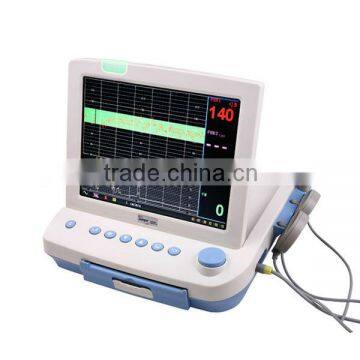

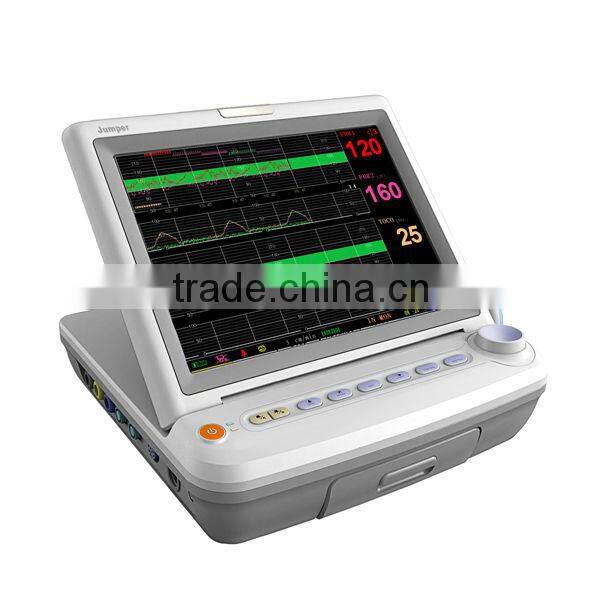

Fetal Doppler Monitor ,CE marked,JPD-300P.
Patent technology:FAS technology.
What's FAS:

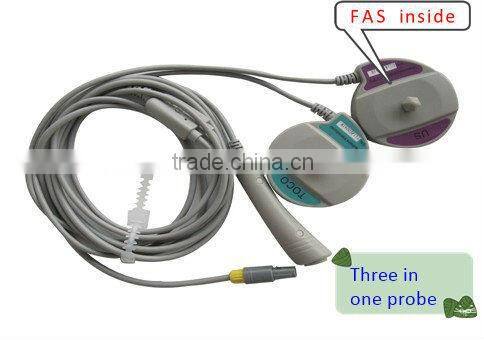

FAS is Fetal awaking stimulator.We attached a Vibrating device into the FHR probe.
When the fetus is sleeping,we can wake baby up with FHR probe vibrating.in order to get the accurate data.
There's no need to use another Fetal stimulator probe.
More convenient to the users.
Features:
Patent technology:FAS technology

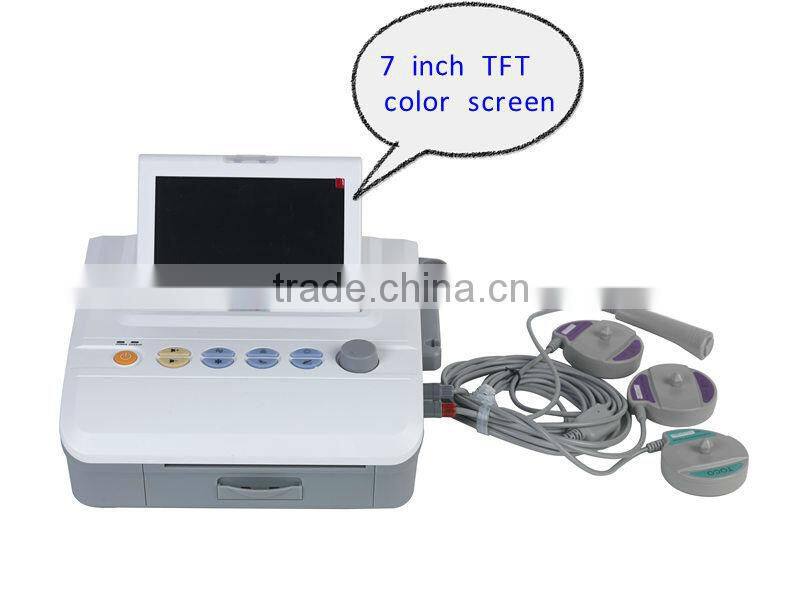

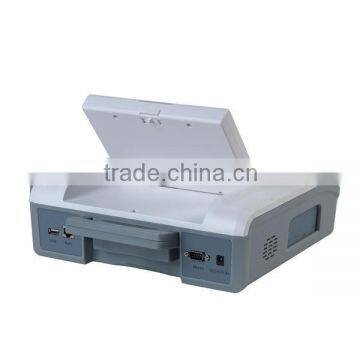

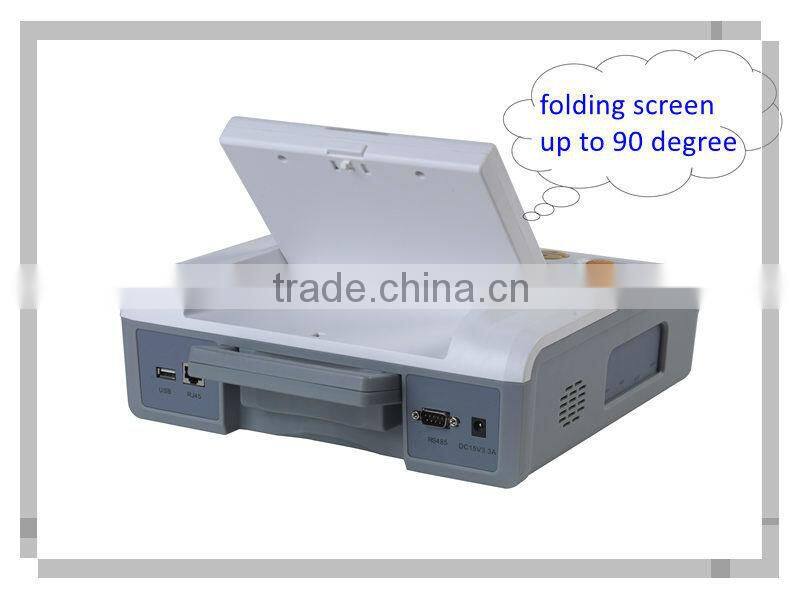

7 inch TFT color screen,folding up to 90 degree

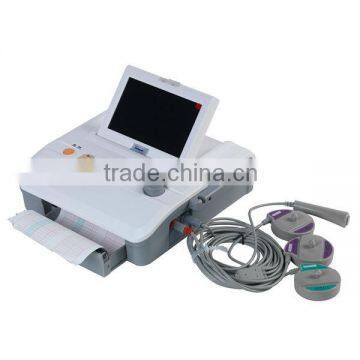

Built in 152mm printer
3 parameters:FHR,TOCO,FM
12 hours data storage
DSP technology,realtime identify and measurement for FHR
Alarm system
Multi waveform display
Option:
- SPO2,HR,NIBP
- Maternal temperature

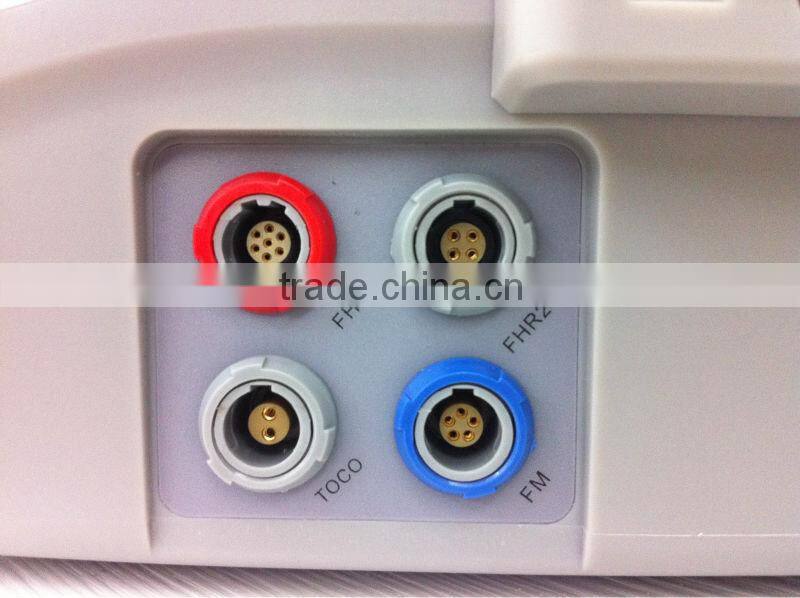

- Twin monitor interface,Twins FHR measurement
- Connected to the onstetrical central station
- FAS,fetal awaking stimulator
Fetal Heart Rate:
Transducer: Multi-crystals, pulsed doppler , high sensitively
Strength: <5mW/cm2
Working frequency: 1.0MHz
Signal processing: special DSP system and modern recognization.
Measurement range: 50~210 bpm
Alarm Range:
High limit: 160,170,180,190 bpm
Low limit: 90,100,110,120 bpm
Maximum audio output power : 1.5 Watt
Toco:
Measurement range: 0~100 units
Maternal SpO2 measure:
Measure scope : 70%~99%.
Measure accuracy: ±3%
Pregnant HR Measure:
Measure scope: 30bpm~240bpm
Measure accuracy: ±2 bpm
NIBP measure:
a) NIBP-SYS (6.7~32.0Kpa)(50~240mmHg)
b) NIBP-DIA (3.4~26.6Kpa)(25~200mmHg)
c) NIBP-MEAN(2.0~24.0ka(15~180mmHg)
NIBP Accuracy: ±1.1kPa(±8mmHg)or ±5% of the results, take the bigger one.
Maximum Mean error : ±5mmHg
Maximum Standard deviation: 8mmHg
Pulse Rate Accuracy: Maximum Mean error : ±2bpm
Measure accuracy: ±2 bpm or ±5% of the results, take the bigger one.
Measure mode: Manual
Display:

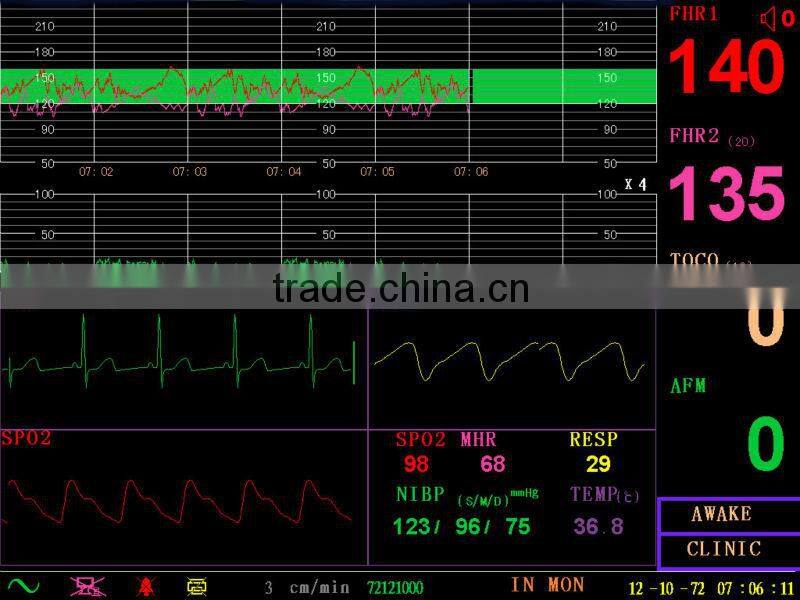

The LCD displays FHR, TOCO, FM , maternal parameters , time, date, volume and so on, It can store and play back the data.
Power: a.c.100-240v, 50/60Hz ,d.c.15v or 16.8v Li-ION battery
Power Consumption: < 20W
Dimension: 307 (length) ×296 (width) ×101 (height) (mm)
Net weight: Three-parameter type: 2.75kg; nine-parameter type: 3kg. (Both does not contain accessories such as probe)
CE certificate:
About Us
Shenzhen Jumper Medical Equipment Company is a manufacture of medical equipment in China since 1998, with CE&FDA approved.
We have over 300 employees, cover an area of 8,000 M2
We are in the field of
-Fetal Doppler
-Fetal Monitor
-Patient Monitor
-Finger Pulse Oximeter
-Infrared Forehead Thermometer.
Did not find what you want? Click here.

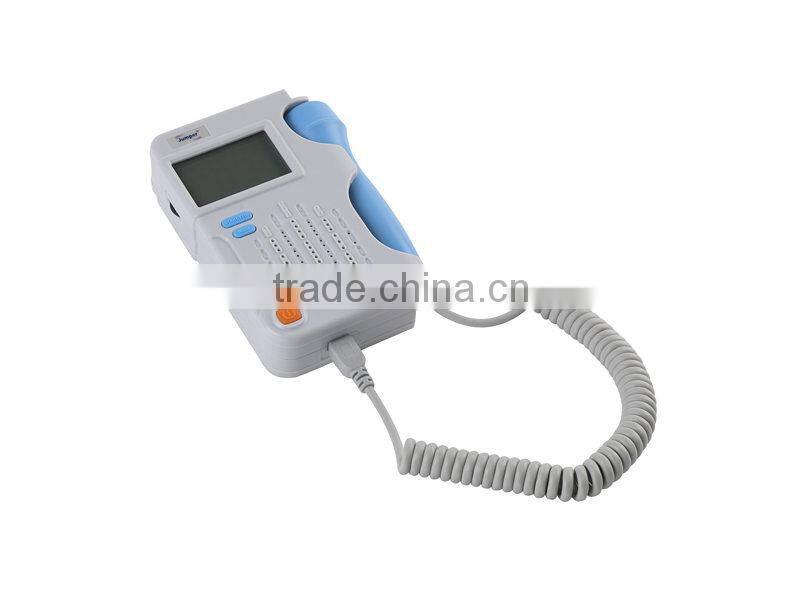

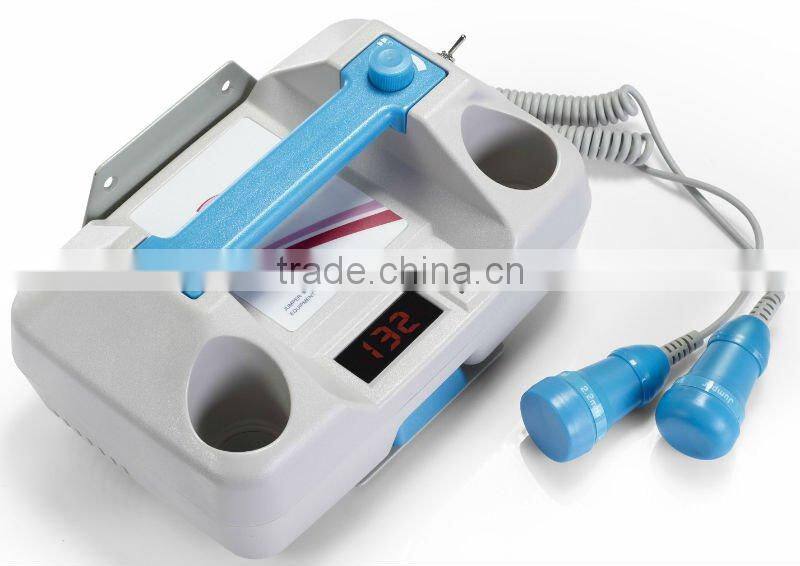

We are also in the field of fetal doppler,Click the pictures.

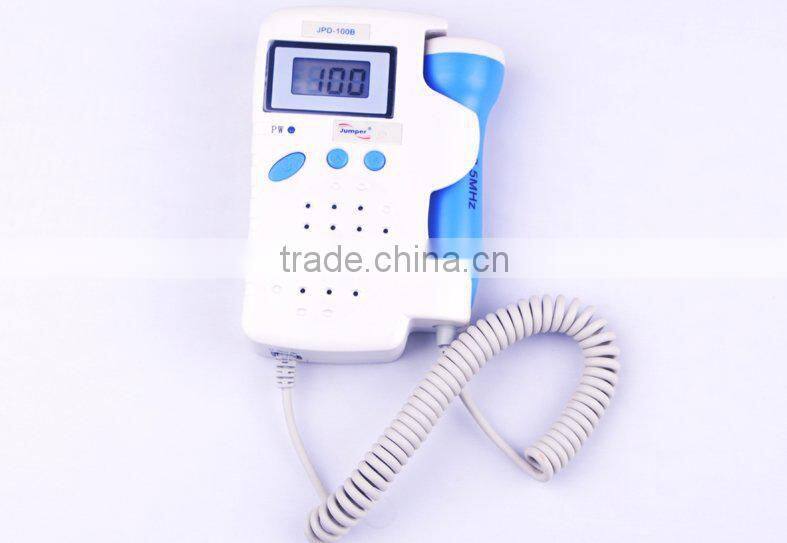

JPD-100B
JPD-100B+
JPD-200C(Most professional fetal doppler)
