Patent Fetal Acoustic Stimulator Technology Ultrasound Machine, 7'' 12.1'' Fetal&Maternal Monitor

Patent Fetal Acoustic Stimulator Technology Ultrasound Machine, 7'' 12.1'' Fetal&Maternal Monitor thumbnail-1
Patent Fetal Acoustic Stimulator Technology Ultrasound Machine, 7'' 12.1'' Fetal&Maternal Monitor photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Maternal-Neonatal Ultrasonic Monitor
Brand Name:
Jumper
Model Number:
JPD-600P
Contact Supplier Request Quote Chat Now
Shenzhen Jumper Medical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Maternal-Neonatal Ultrasonic Monitor
Brand Name Jumper
Model Number JPD-600P
Product Description

Patent fetal acoustic stimulator technology ultrasound machine, 7'' 12.1'' Fetal&Maternal Monitor

Standard parameters:FHR,TOCO,Fetal movement
Materal 6 parameters:ECG PR RESP NIBP SPO2 TEMP
Options:  FAS( Fetal Acoustic Stimulator), Twins monitor interface,Twins FHR measurement

Patent FAS technology(What's FAS?)
FAS is Fetal awaking stimulator.We attached a  vibriting device into the FHR probe.
When the fetus is sleeping,we can wake baby up with FHR probe vibrating.in order to get the accurate data.
There's no need to use another Fetal stimulator probe.More convenient to the users.

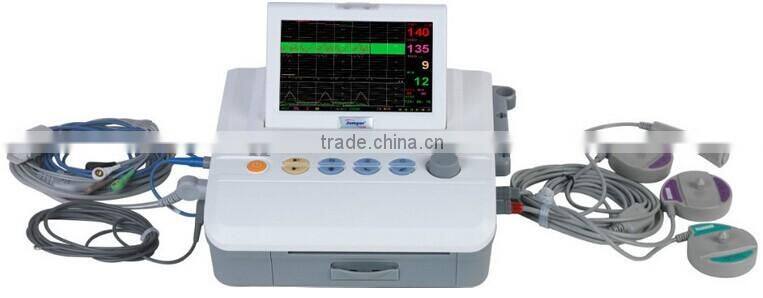

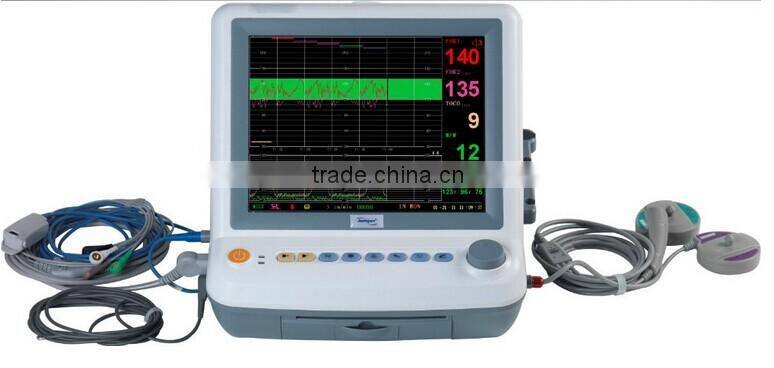

Multi-parameters Fetal Maternal Monitor JPD-600P
Function:Fetal monitor ,Fetal monitor FHR,TOCO,Fetal mover,Single/Twins,Fetal Monitor Single/twins optional maternal/fetal monitor

Features:
Display: 7'' or 12.1 high resolution color TFT LCD Display,support plug-in large-screen CRT Display
Detection items: Standard configure:FHR,TOCO,FETAL Moverment-Marks,and Optional Twins
Rotable Screen: Can be laid on or mounted on wall
Power supply: Built-in rechargable Li-ion Battery,AC-DC Power supply,without interruption monitor
System: Linux operation system,stable,easy to operate
Printer: 112mm,150mm,210mm usual thermal paper optional
Connection:Support cable and wireless network connection

Specification:
FHR:Ultrasound Probe: 12pcs chip, Multi-wafer,wave-beam,high sensitive
          Ultrasound frequency: 1MHz ±5%
Ultrasound intensity: <3mW/cm2
FHR range: 30-240bpm
Resolution:1bpm
Accuracy:± 1bpm/±1%

TOCO:
TOCO range: 0-100 (relative unit)
Resolution:1bpm
Non-linear error:≤±5%

Fetal Movement:
Button Hand Count( Automatic cumulative number of movements)/
Optional auto-count

Printer
112,150,210mm usual thermal paper,more economical
Detailed Images
Packing & Delivery

Configuration:
 Main Body
 Battery & Charger
 FHR, TOCO, FM three in one probe

ECG probe

Spo2 probe

Blood pressure cuff
 Belt & Gel
 Power Cable
 Printing paper
 English User Manual

Package:

 Package:2 units/Carton,14kg/Carton
 Port: Shenzhen/HK

 Delivery:5-10days after order confirmed

 Payment terms: T/T,Western Union, Paypal


Our Company

Company profile
Established in 1998, Jumper Medical is dedicated to designing and manufacturing healthcare products for personal and hospital market. Our vision is to improve the quality of human life by supplying affordable, convenient and reliable healthcare products to more families around the world.

Our products include fetal Doppler, pulse oximeter, infrared thermometer, blood pressure monitor, fetal monitor/CTG machine, patient monitor, vital signs monitor| multi parameter patient monitor| bed side monitor, ECG machine, etc. Our products are ISO13485, CE, FDA proved. In order to make sure every product conforms to ROHS requirements, all raw materials used are compliant with ROHS directives and all products are produced with ROHS compliance awareness.
With 18years' experience in OEM/ODM service and concentration on healthcare industry, Jumper Medical welcomes professional partners to join us to achieve a better future in healthcare community.

Who we are, What we do?
We’re one of largest manufacturers of home health and baby care products. Our products including fetal Doppler, pulse oximeter, infrared thermometer, blood pressure monitor, fetal monitor/CTG machine, patient monitor, vital signs monitor, ECG machine, etc.

Why choose us?
With about 15 years' experience of OEM/ODM service and concentration in home health care industry, Our products are ISO13485, CE, FDA proved, all raw materials are comply with ROHS directive and all products are processed under ROHS technology to ensure every product is conforming ROHS requirements.

Our purpose?
Our vision is to improve life quality of human being by supplying affordable, convenient and reliable health care products to more family around the world.

.
