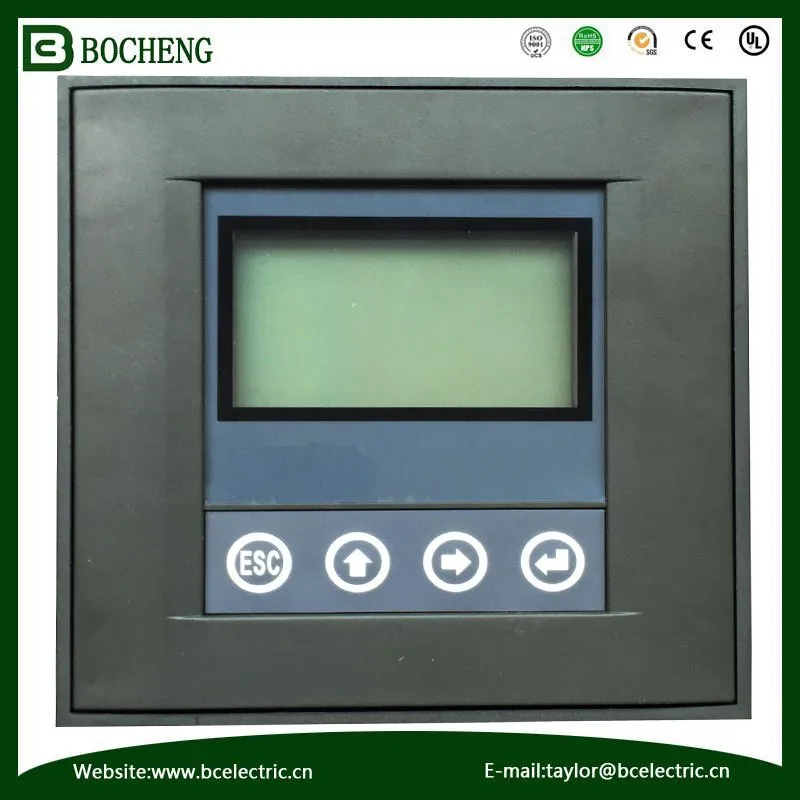

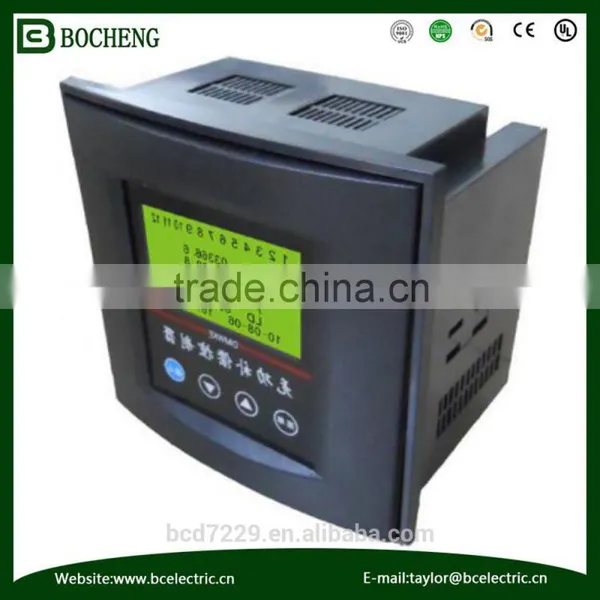

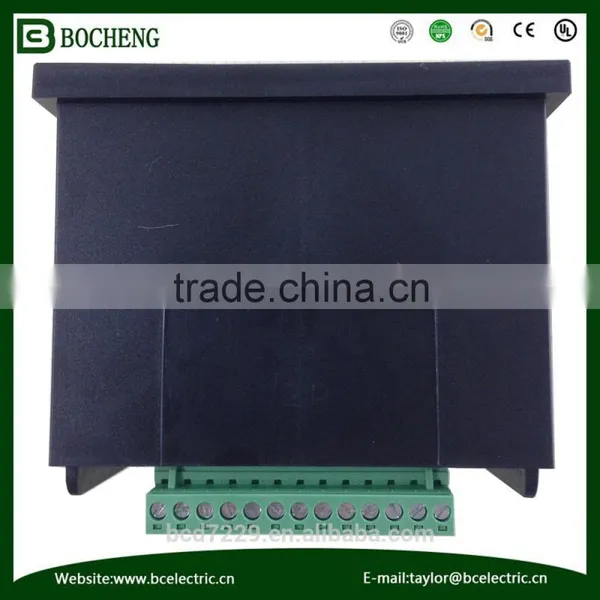

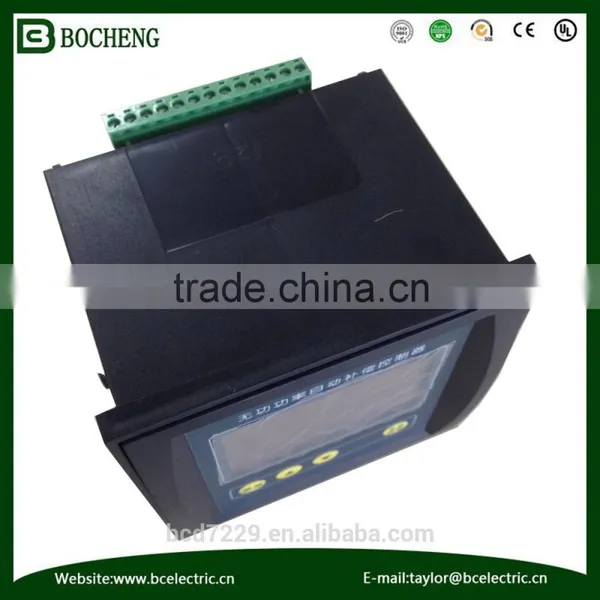

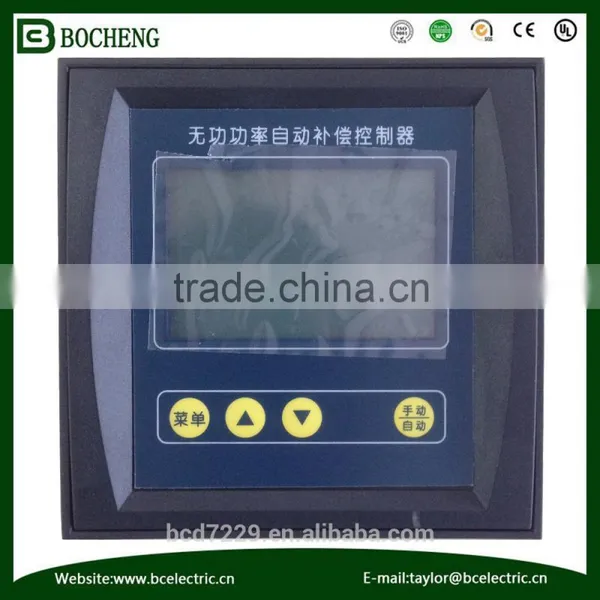

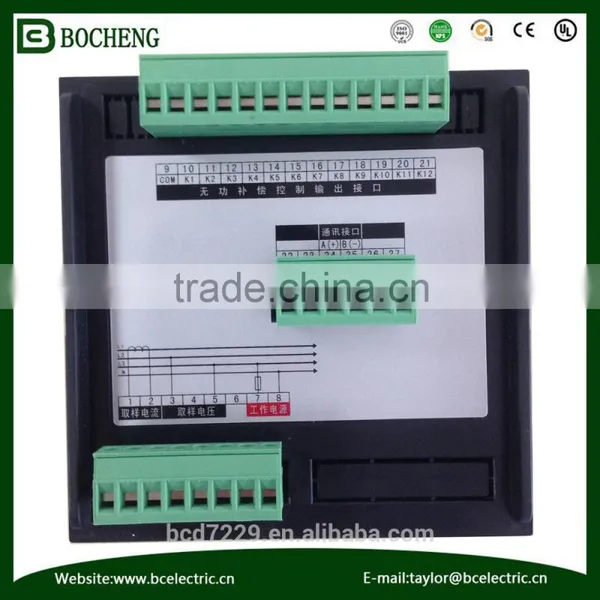

JKW Three Phase 12 Stageas Power Factor Controller

JKW Three Phase 12 Stageas Power Factor Controller thumbnail-1
JKW Three Phase 12 Stageas Power Factor Controller thumbnail-2
JKW Three Phase 12 Stageas Power Factor Controller thumbnail-3
JKW Three Phase 12 Stageas Power Factor Controller thumbnail-4
JKW Three Phase 12 Stageas Power Factor Controller thumbnail-5
JKW Three Phase 12 Stageas Power Factor Controller thumbnail-6
JKW Three Phase 12 Stageas Power Factor Controller photo-1
JKW Three Phase 12 Stageas Power Factor Controller photo-2

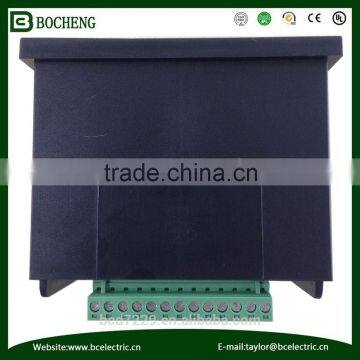

JKW Three Phase 12 Stageas Power Factor Controller photo-3
JKW Three Phase 12 Stageas Power Factor Controller photo-4

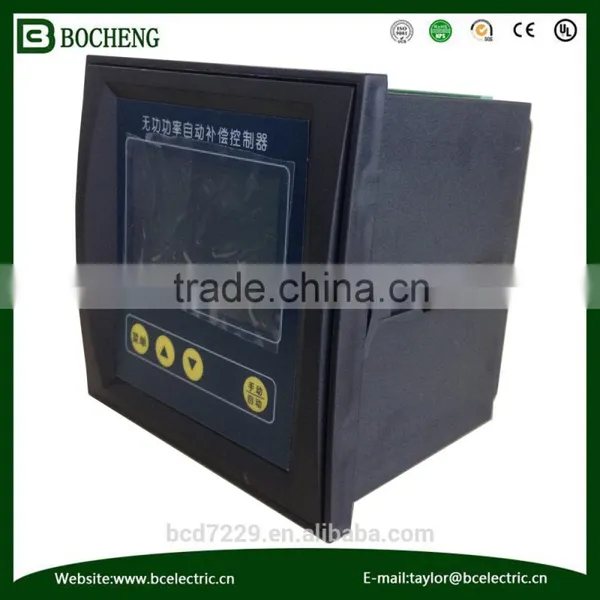

JKW Three Phase 12 Stageas Power Factor Controller photo-5
JKW Three Phase 12 Stageas Power Factor Controller photo-6
US$ 130.00 - 145.00 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
BoCheng
Model Number:
JKWH
Contact Supplier Request Quote Chat Now
Shanghai Bocheng Electrical Hardware Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name BoCheng
Model Number JKWH
Output Power Other
Output Type Multiple
Size JKWH-16:144mm*144mm*87mm
Input Voltage AC 220V±20%
Output Voltage 0-380V
Type DC/AC Inverters
Output Frequency 45Hz-65Hz
Product Description

Series of reactive power automatic compensation controller, with high speed and high performance microprocessor as the core device also sampling three-phase voltage and three-phase current signal and provide six separate compensation is compensation scheme, 12 kinds of switching coding scheme, the user through the modification of control parameters of arbitrary choice, control parameters modified permanent preservation, power down fill missing. The fundamental power factor and the fundamental group of power compound control capacitor switching, switching stability without switching shocks, for voltage harmonic interference complementary sensitivity. In exchange 45Hz-65Hz and 0.4kV power system following the non automatic control of reactive power compensation.

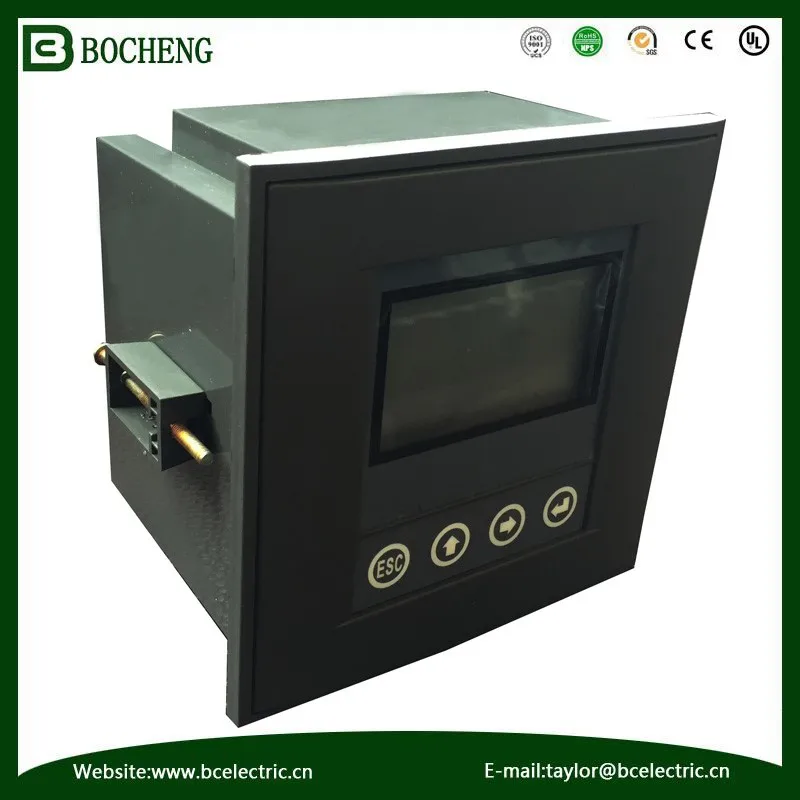

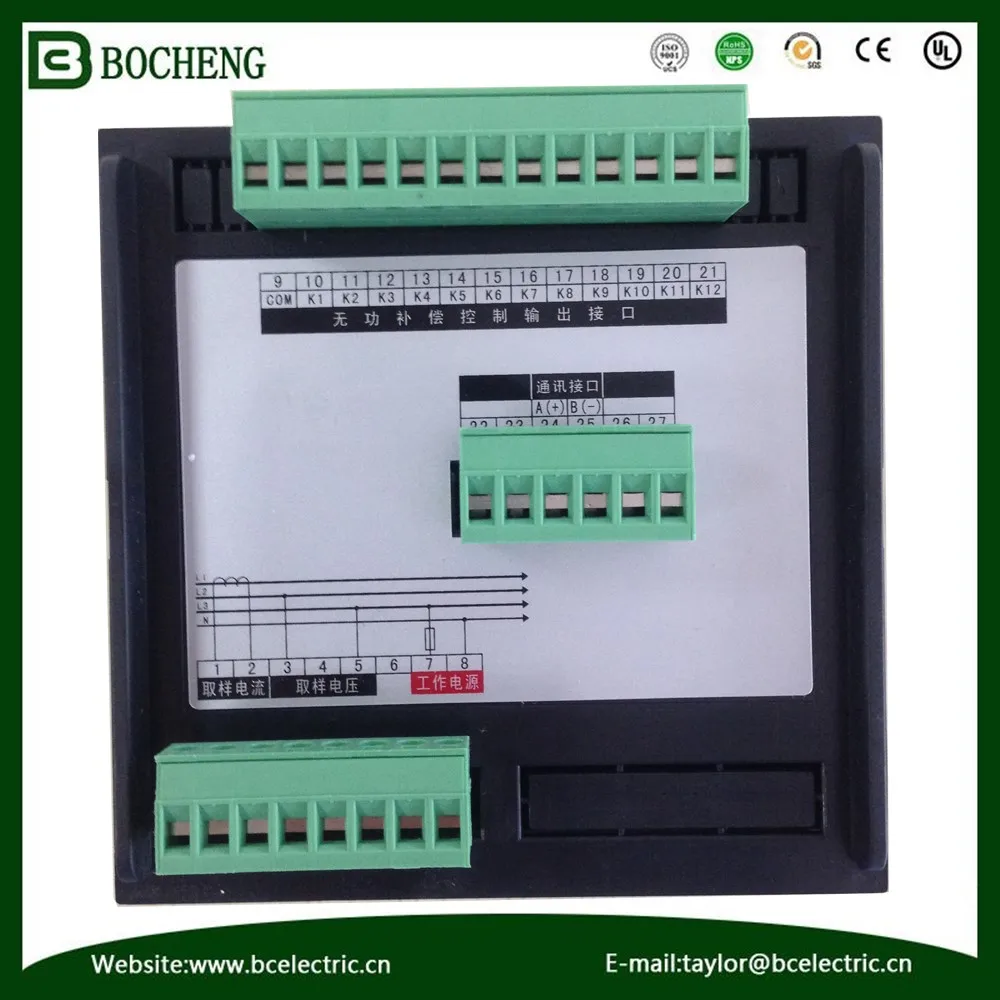

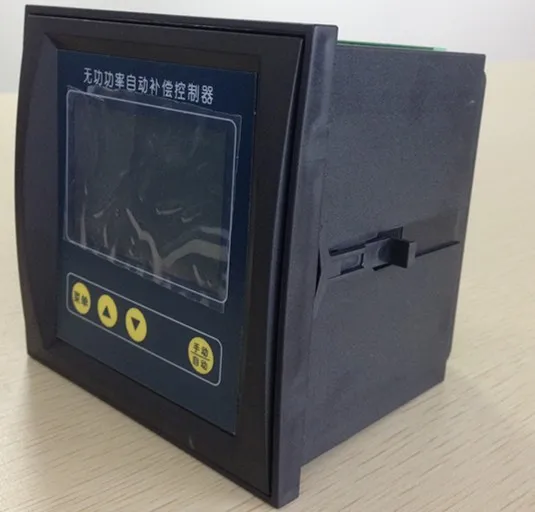

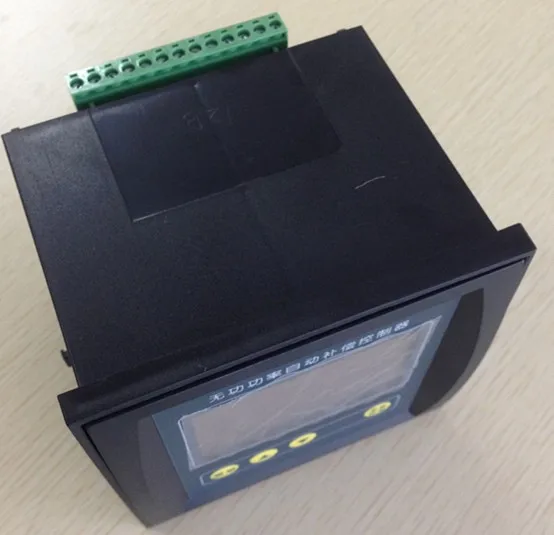

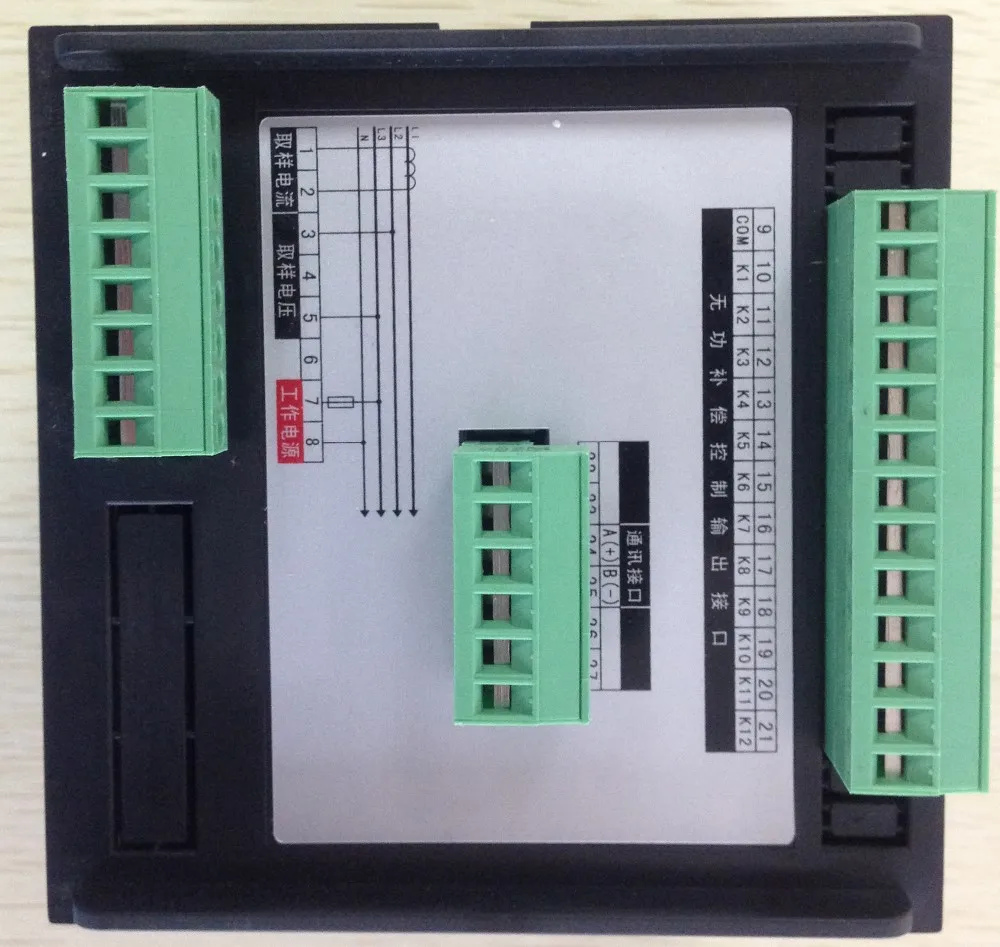

Detailed Images
Model
External dimension
Dynamic output capacity per path:-12V 10mA
JKWH-12S
122mm×122mm×99mm
Power consumption of the whole machine:10VA
JKWH-16
144mm×144mm×87mm
JKWH-12S
113mm×113mmm

Use condition

1, Practical altitude: ≤2500m.

2,Environmental temperature: -20 ℃ ~ 50 ℃.

3,Relative humidity: ≤90%(20℃)≤50%(40℃)

4,Installation site should be no harmful gas, steam and electrical conductivity or explosive dust.

5,installation site should be no severe vibration.

Functional characteristics

1,In the calculation of the power of the fundamental wave reactive power, the capacity of the capacitor can be avoided, and the power factor of the grid can be displayed correctly in the case of harmonic wave.

2,Power factor measurement accuracy, display a wide range.

3,Real time display of total power factor(PF)and fundamental wave power factor(COSφ).

4,There are 12 kinds of coding output for users to choose.

5,There are 6 compensation schemes for user selection.

6,Up to 16 output

7,Easy to operate

8,All kinds of control parameters can be adjusted directly and conveniently

9,With automatic operation and manual operation of the two ways

10,With over voltage and under voltage protection function

11,With power down protection function and the data is not lost

12,The current signal input impedance is less than or equal to 0.01.

13,Target power factor adjustment range is wide

About US
Trade Assurance
Certifications
Packing & Delivery

Packing

wooden box or carton box .

Delivery

7days after 30% advance payment

Installation

Embedded mounting hook attachment fixed.

Embedded mounting reverse gear, attachment fixed guide rail.
