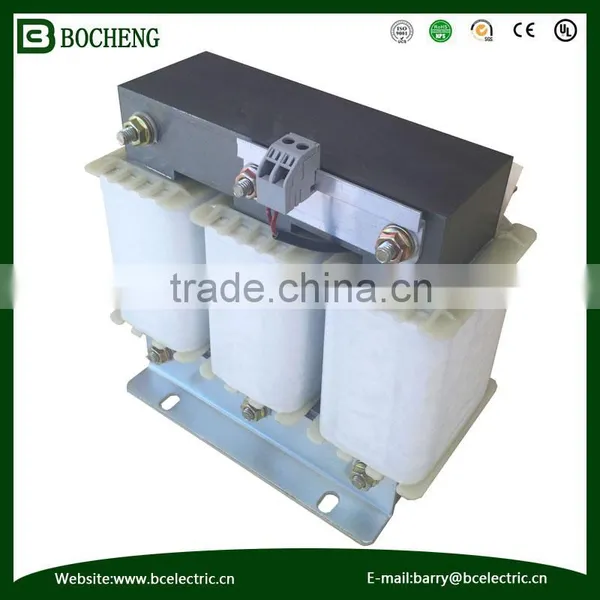

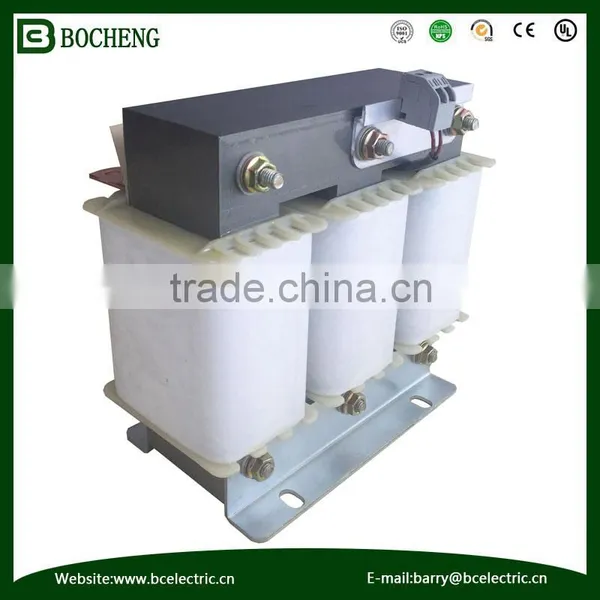

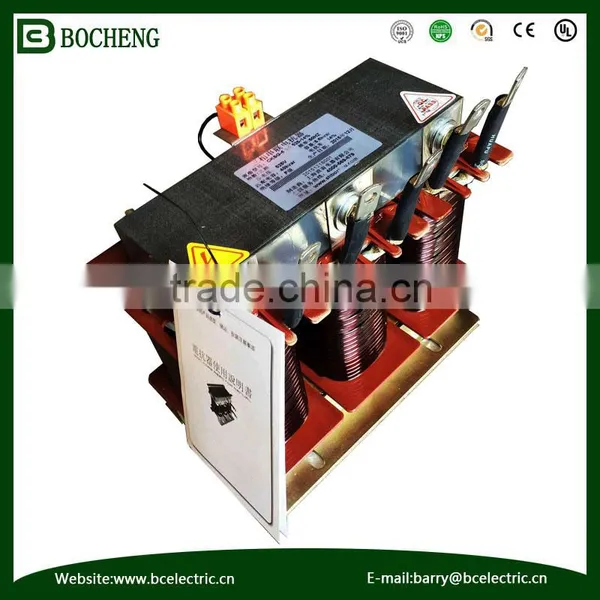

3 phase dry type detuned reactor for power capacitor
The main performance index and technical parameters.
1,Can be used for capacitor voltage is:0.4kv,0.45kv,0.4kv,0.4k8v,0.525kv,0.66kv,0.69kv.
2,Reactance ratio :1%,4.5F,5%,5.67%,6%,7%,12%,13.8%,14%.
3,Insulation grade:B class, F class,H class,noise≤30db,overload capacity≤1.35 times work continuously.
Product features
1,This product is divided into three groups,two kinds of single phase.style as iron core dry-type.
2,Iron core is made of highgrade silicon steel sheet,after quick punch punching,be provided with a small burr,uniform rules,the lamination is neat and beautiful.to ensure the reactor is running with low noise and low temperature performance.
3,The coil is made of quality insulation wire,after winding by special machine,be provided with good flatness and the advantages of beautiful appearance.
4,The reactor in the process of assembly,all clamping device are through anticorrosive processing,key clip with non-magnetic material and by the preliminary drying,vacuum leaching paint,thermal drying curing this process,make the reactor coil and iron core firm into an organic whole.greatly reduce temperature rise and noise at the work time. improve the effect of quality factor and reduce harmonic.
5,The outline dimension of reactor is refer to standard cabinet size,with small size,convenient connection,greatly saves the user`s cost investment of cabinet.
450V/480V 7%reactance rate
Reactor type |
Matched capacitance |
Insulation grade |
Dimension mm |
CKSG-0.35/0.45-7% |
5 |
F |
150X110X160 |
CKSG-0.525/0.45-7% |
7.5 |
F |
150X110X160 |
CKSG-0.7/0.45-7% |
10 |
F |
180X120X180 |
CKSG-0.875/0.45-7% |
12.5 |
F |
180X120X180 |
CKSG-1.05/0.45-7% |
15 |
F |
180X120X180 |
CKSG-1.26/0.45-7% |
18 |
F |
200X180X205 |
CKSG-1.4/0.45-7% |
20 |
F |
200X180X205 |
CKSG-1.75/0.45-7% |
25 |
F |
240X190X205 |
CKSG-2.1/0.45-7% |
30 |
F |
260X200X205 |
CKSG-2.8/0.45-7% |
40 |
F |
260X200X205 |
CKSG3.15/0.45-7% |
45 |
F |
260X210X205 |
CKSG-3.5/0.45-7% |
50 |
F |
260X210X205 |
CKSG-4.2/0.45-7% |
60 |
F |
260X220X210 |
CKSG-4.9/0.45-7% |
70 |
F |
260X220X210 |
CKSG-5.6/0.45-7% |
80 |
F |
300X240X260 |
CKSG-6.3/0.45-7% |
90 |
F |
300X250X260 |
CKSG-7.0/0.45-7% |
100 |
F |
320X250X260 |
480V/525V 14%reactance rate
| Reactor type | Matched capacitance | Insulation grade |
Dimension mm |
CKSG-0.7/0.525-10% |
5 |
F |
180X120X180 |
CKSG-1.05/0.525-14% |
7.5 |
F |
180X120X180 |
CKSG-1.4/0.525-14% |
10 |
F |
200X180X205 |
CKSG-1.75/0.525-14% |
12.5 |
F |
200X190X205 |
CKSG-2.1/0.525-14% |
15 |
F |
240X190X205 |
CKSG-2.52/0.525-14% |
18 |
F |
260X200X205 |
CKSG-2.8/0.525-14% |
20 |
F |
260X200X205 |
CKSG-3.5/0.525-14% |
25 |
F |
260X210X205 |
CKSG-4.2/0.525-14% |
30 |
F |
260X220X210 |
CKSG-5.6/0.525-14% |
40 |
F |
300X240X260 |
CKSG-6.3/0.525-14% |
45 |
F |
300X250X260 |
CKSG-7.0/0.525-14% |
50 |
F |
320X250X260 |
CKSG-8.4/0.525-14% |
60 |
F |
320X250X270 |
CKSG-9.8/0.525-14% |
70 |
F |
320X250X270 |
CKSG-11.2/0.525-14% |
80 |
F |
380X240X340 |
CKSG-12.6/0.525-14% |
90 |
F |
380X240X340 |
CKSG-14/0.525-14% |
100 |
F |
380X260X340 |
