Product Application
Air core reactor is consisted of several series what serial reactor, filter reactor, current-limiting reactor, and shunt reactor,now to introduce about air core reactor .
Principle and purpose

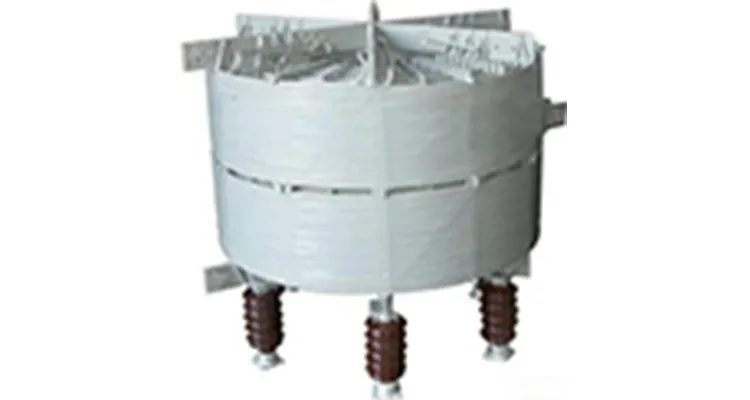

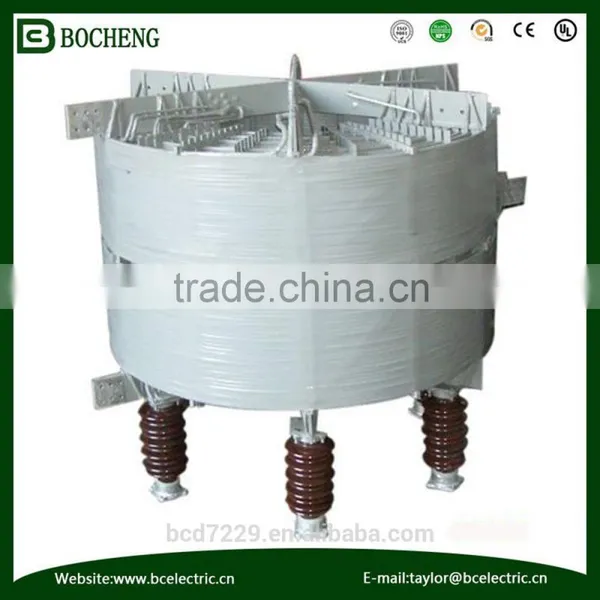

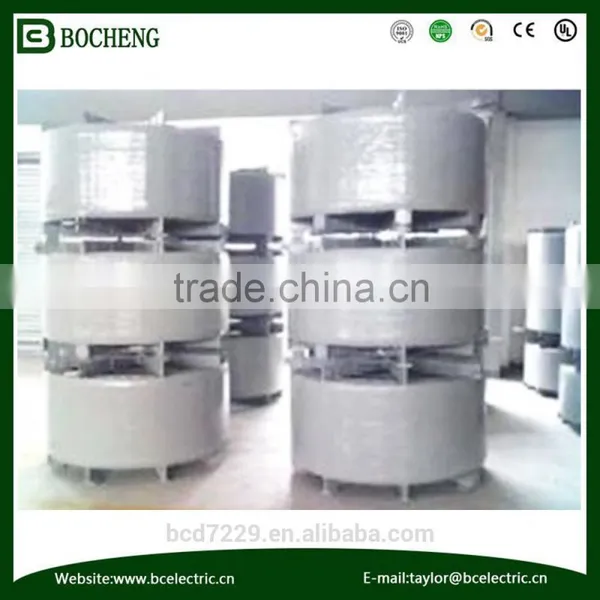

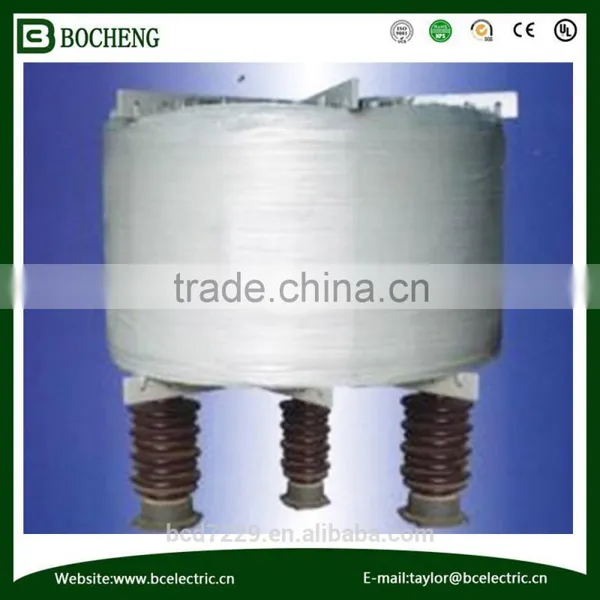

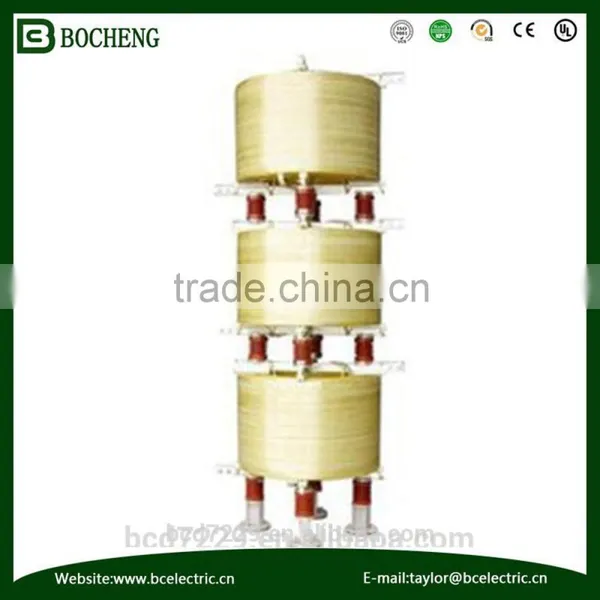

Our company is specialized in the production of various specifications of air core reactor ,the voltage range from 0 to 35 kv, the capacity from 0-3500 kvar,be used for reactive power compensation and filtering harmonic, current limit and so on occasion,our air core reactor using muitilayer winding parallel cylindrical structure.separated with coating by article cited dial and form ventilation airway.with good heat dissipation, also using small section round wire multi-strand winding equality, low loss the eddy current and magnetic flux leakage about insulation that we use wire surface using polyester film multilayer every half fold package, has the very high dielectric strength, winding with impregnated insulated epoxy glass fiber closely around the bag, after high temperature curing to form a rigid body, with high mechanical strength, can not damage, by the impact of the short circuit current coil surface resistance to uv protection of ozone layer, anti-aging, resistant to all kinds of bad weather.
Execution standard
GB10229-88 "the reactor"
DL462-92 "high voltage capacitor in series reactor order technical conditions"
JB5346-1998 "series reactor"
IEC289-88 "the reactor"
JISC4801-1997 "series reactor used in high pressure and special high voltage parallel capacitor.
Using environment conditions
1,use place: indoor or outdoor.
2,using the environment temperature, 45 ℃ and 40 ℃ to.
3, run altitude 1000 m or less
4,the installation site should be no harmful gas, steam and electrical conductivity or explosive dust.
5,the relative humidity of 90% or less
6,the maximum wind speed: 35 m/s
7,Seismic intensity degrees or less
8,fight corrupt ability or 25 mm/kv
